Checking Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, 2002 Chevrolet RV Cutaway, and 2002 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Place the rear servo pin gauge in the servo bore. See Fig 1 .
Position the apply pin checking tool over the bore with the hex nut facing the parking pawl linkage. Tighten the apply pin checking tool with the 2 rear servo cover bolts to 18 ft. lbs. (24 N.m). See Fig 2 .
Ensure the gauge pin moves freely in the tool and the pin bore.
To determine the correct pin length, tighten the nut on the gauge to 25 ft. lbs. (34 N.m). Select the correct band apply pin length. See Fig 3 .

Fig 1: Identifying Band Apply Pin Gauge

Courtesy of GENERAL MOTORS CORP.

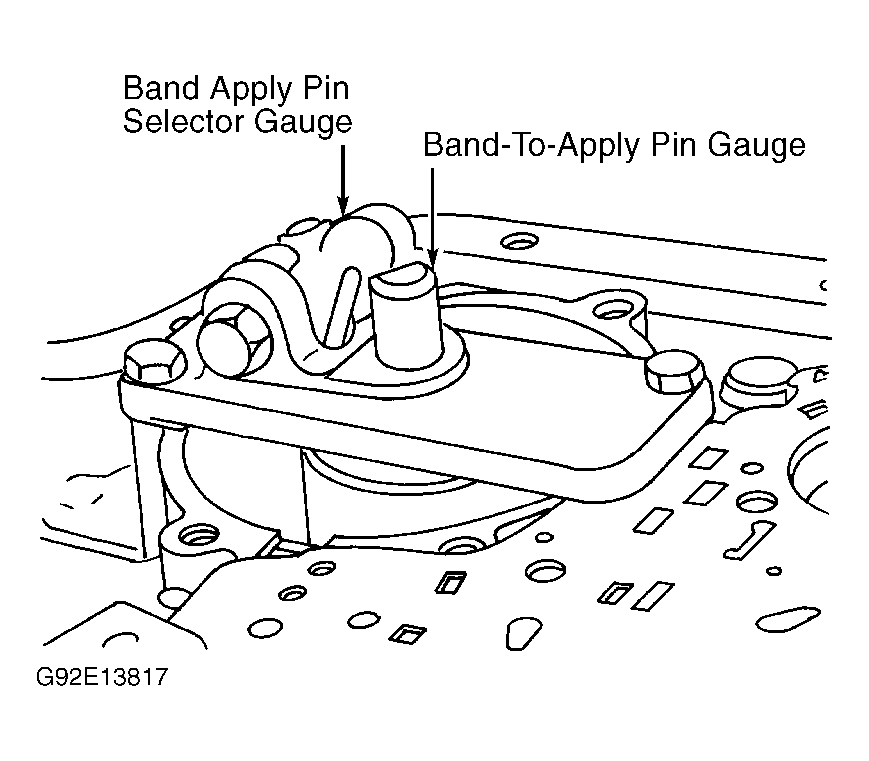

Fig 2: Checking Band Apply Pin Length

Courtesy of GENERAL MOTORS CORP.

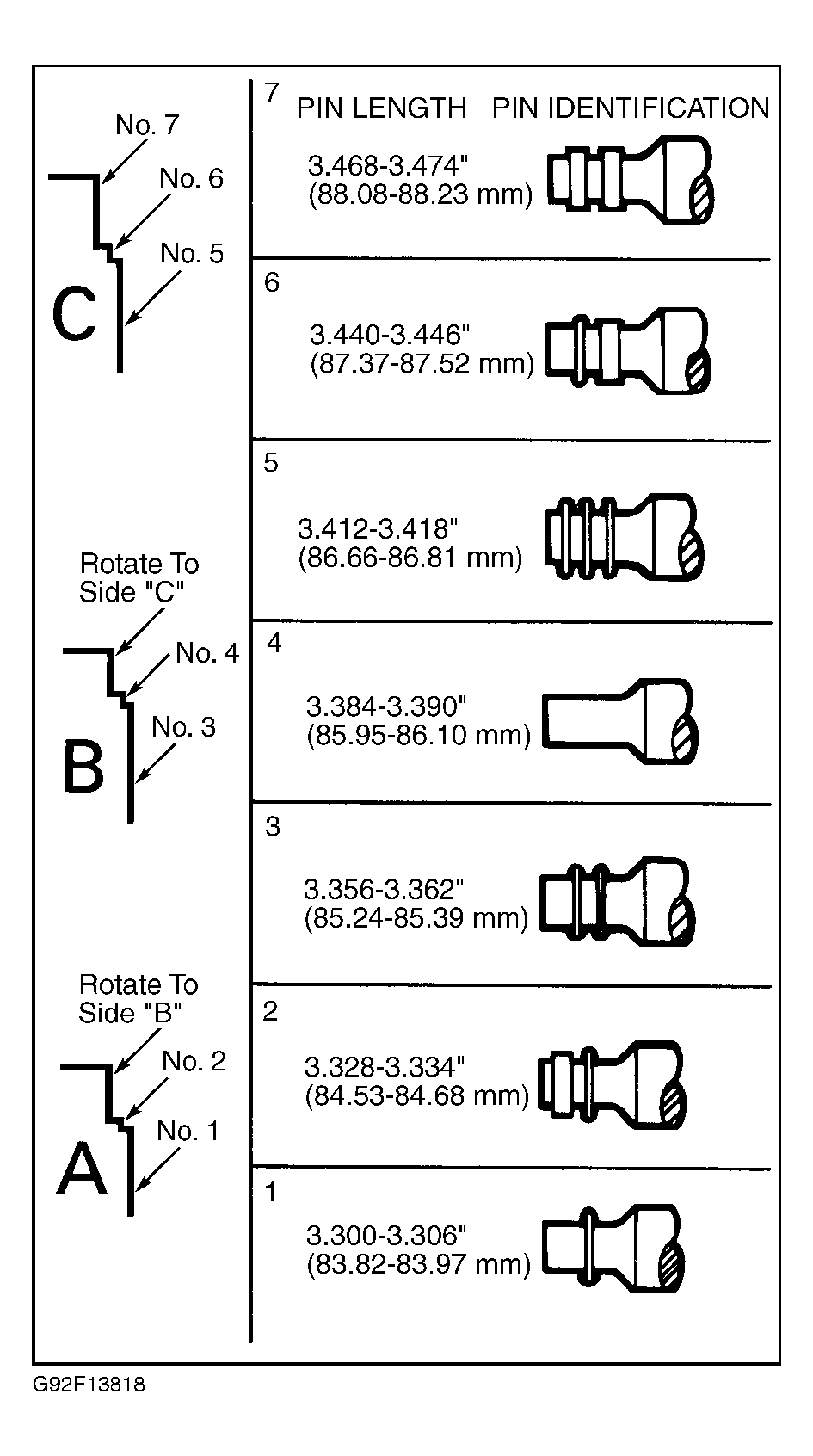

Fig 3: Band Apply Pin Selection Chart

Courtesy of GENERAL MOTORS CORP.
