Control Valve Body (4L80-E): Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, 2002 Chevrolet RV Cutaway, and 2002 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the 8 checkballs (9 checkballs for some transmissions) into the control valve body. The checkball marked as No. 2, is used on RCP, RDP, ZJP and ZLP models only. See Fig 4 .
  2. To hold the checkballs in place, use assembly lubricant. Install the PWM screen into the control valve body.
  3. Install the manual valve (16) into the control valve body. Install the control valve body gasket. Install the control valve body assembly. See Fig 3 .
  4. Attach the manual valve to the detent lever while installing the control valve body assembly. Install the transmission fluid pressure manual valve position switch.
  5. Install the transmission fluid pressure manual valve position switch bolts finger tight. Tighten the bolts sequentially to specification. See Fig 1 and TORQUE SPECIFICATIONS  .
  6. Install the manual shaft detent roller and spring assembly (3) and bolts (2 and 4). Install the 2 wiring harness clips (1) and bolts (2). Install the wiring harness clip (1) and bolts (2). Install the lube oil pipe (5) with the short end into the control valve body. Install the lube oil pipe retainer (7) and the bolt (6). See Fig 2 .
  7. Install the remaining control valve body bolts and tighten the bolts sequentially to specification. See TORQUE SPECIFICATIONS  .

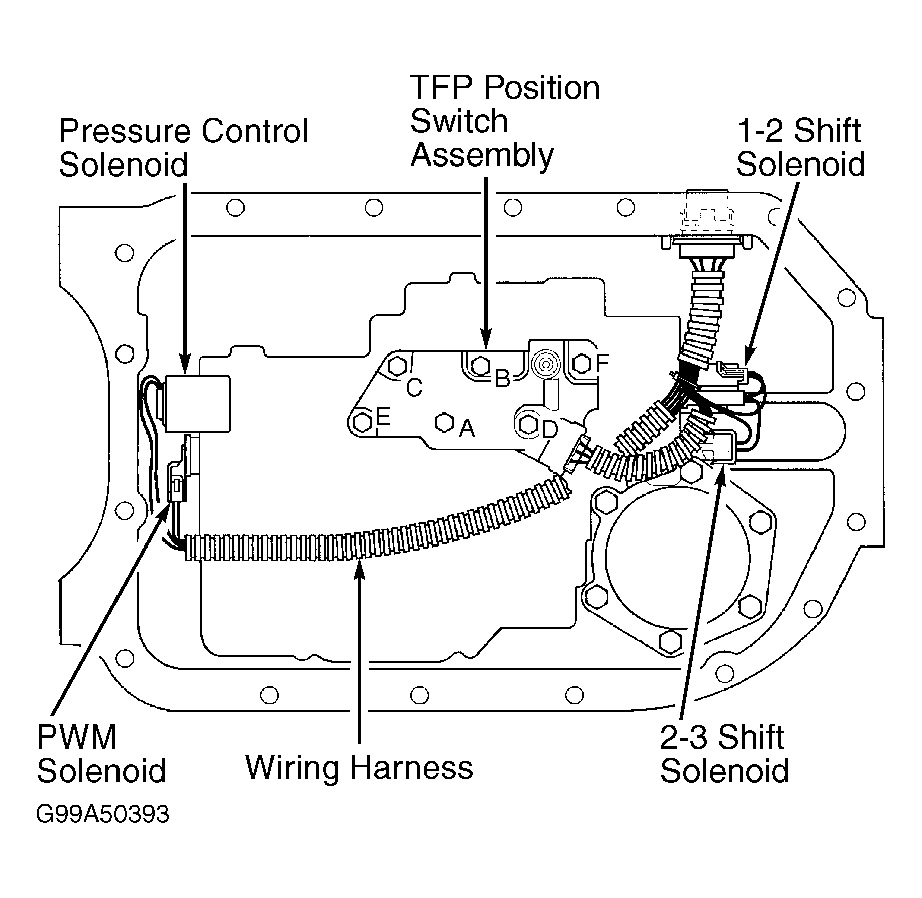

Fig 1: TFP Position Switch Bolt Tightening Sequence & Wire Harness Installation
G99A50393Courtesy of GENERAL MOTORS CORP.

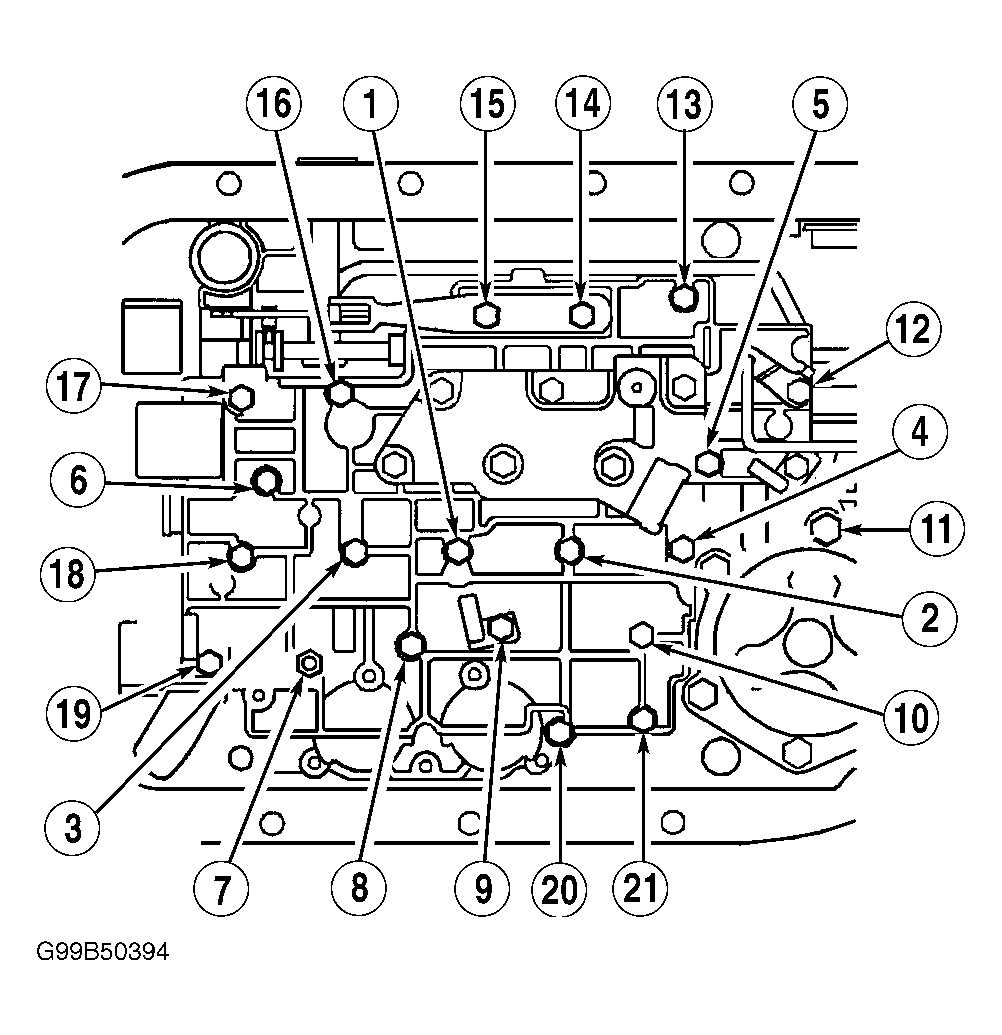

Fig 2: Installing Valve Body Bolts & Related Parts
G99B50394Courtesy of GENERAL MOTORS CORP.

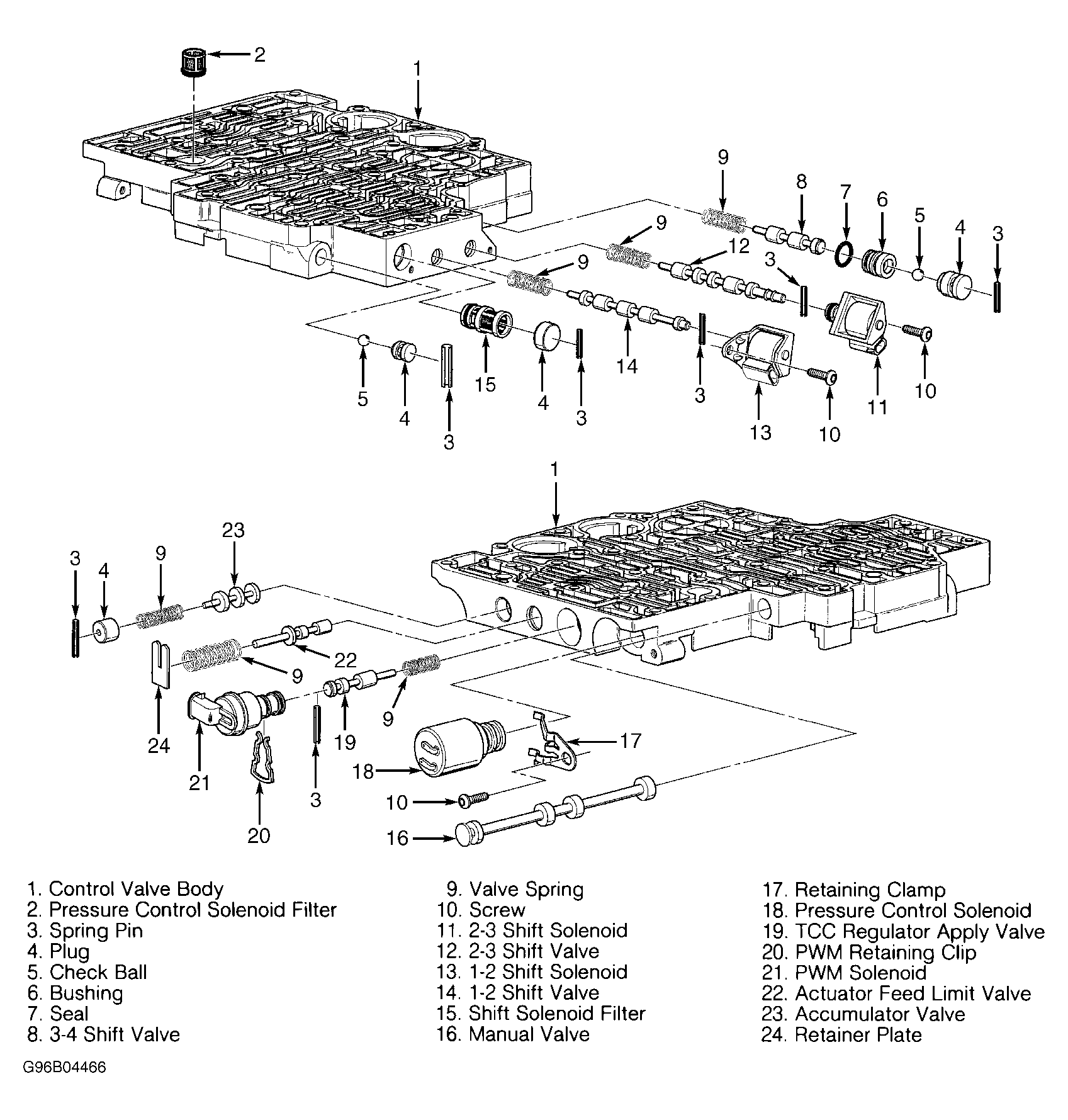

Fig 3: Exploded View Of Valve Body (4L80-E)
G96B04466Courtesy of GENERAL MOTORS CORP.

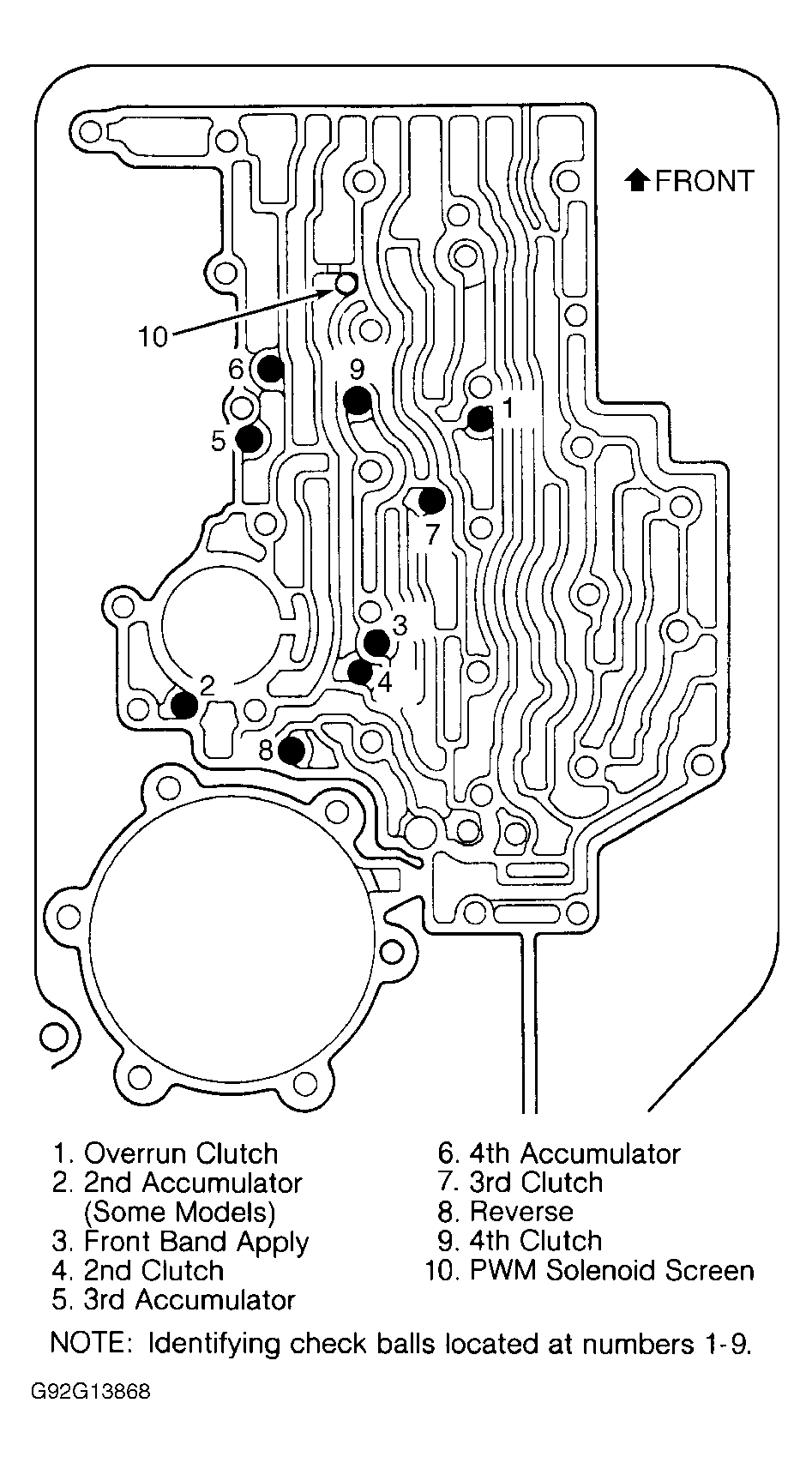

Fig 4: Identifying Check Ball Locations
G92G13868Courtesy of GENERAL MOTORS CORP.
