Disabling System (Camaro & Firebird)

WARNING: This page does not describe the selected car, but rather 114 other vehicles, including the 2000 Saturn SW2, 2000 Saturn SL2, 2000 Saturn SL1, 2000 Saturn SL, and 2000 Saturn SC2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, follow air bag service precautions. See SERVICE PRECAUTIONS . Turn front wheels to straight-ahead position. Turn ignition switch to LOCK position and remove key.
  2. Remove AIR BAG fuse from instrument panel fuse block. Fuse block is behind cover on far left end of instrument panel. Wait 10 minutes. Remove insulator panel from under lower left side of instrument panel. Remove Connector Position Assurance (CPA) clip, and disconnect driver 2-pin Yellow SIR connector at base of steering column.
  3. Remove insulator panel from under lower right side of instrument panel. Remove Connector Position Assurance (CPA) clip, and disconnect passenger 2-pin Yellow SIR connector. See Fig 1.

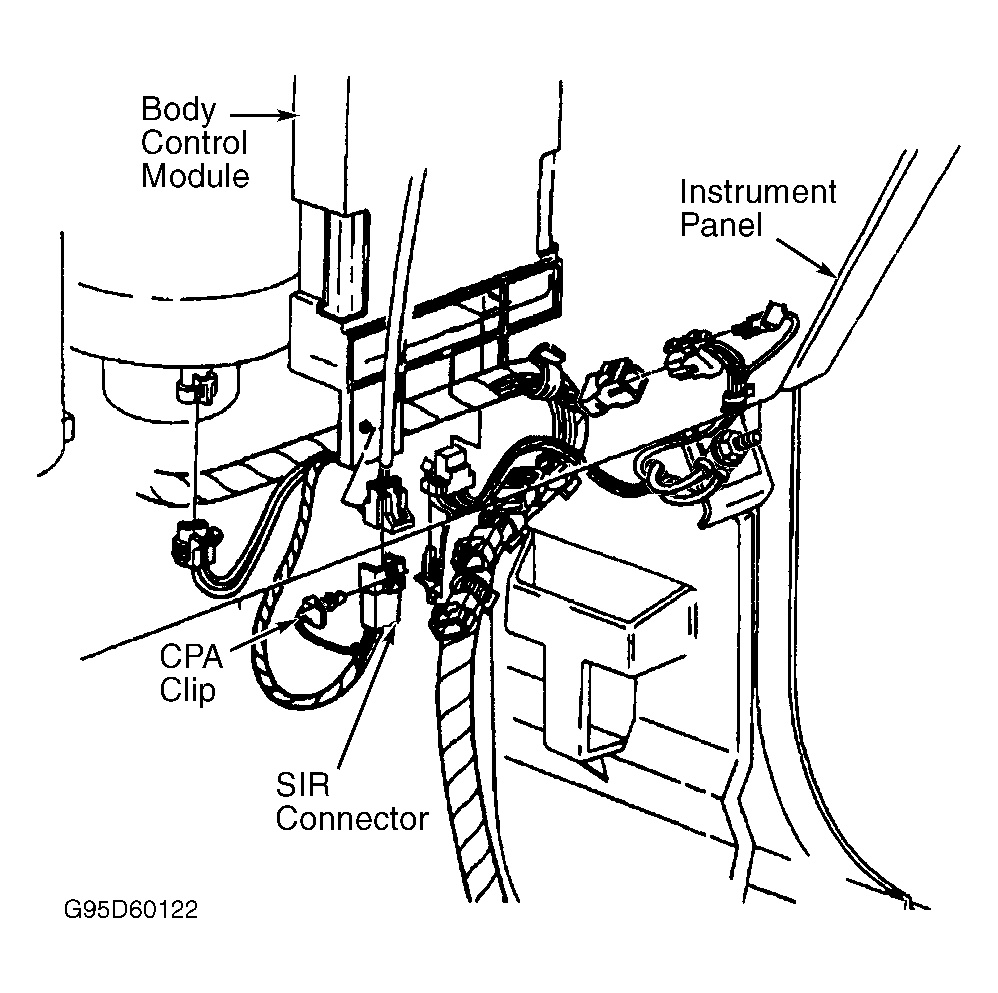

Fig 1: Locating Passenger Air Bag Yellow 2-Pin Connector (Camaro & Firebird)
G95D60122Courtesy of GENERAL MOTORS CORP.
