Disabling System (Windstar)

WARNING: This page does not describe the selected car, but rather 114 other vehicles, including the 2000 Saturn SW2, 2000 Saturn SL2, 2000 Saturn SL1, 2000 Saturn SL, and 2000 Saturn SC2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Record radio preset frequencies for reprogramming, if equipped. Disconnect negative battery cable. Wait at least one minute for backup power supply to deplete stored energy.
  2. Remove access panel on rear of steering wheel. See Fig 1. Disconnect air bag module connector. Connect appropriate air bag simulator to clockspring connector at top of steering column, in place of air bag. See AIR BAG SIMULATOR .
  3. Open glove box. Press in on sides to release stops and lower glove box. Disconnect passenger air bag module electrical connector. Connect appropriate air bag simulator to passenger air bag vehicle harness connector, in place of air bag. See AIR BAG SIMULATOR .
  4. Disconnect side air bag module connector under driver seat. Connect appropriate air bag simulator to vehicle harness connector, in place of air bag. See AIR BAG SIMULATOR . Repeat procedure for passenger side. Connect negative battery cable.

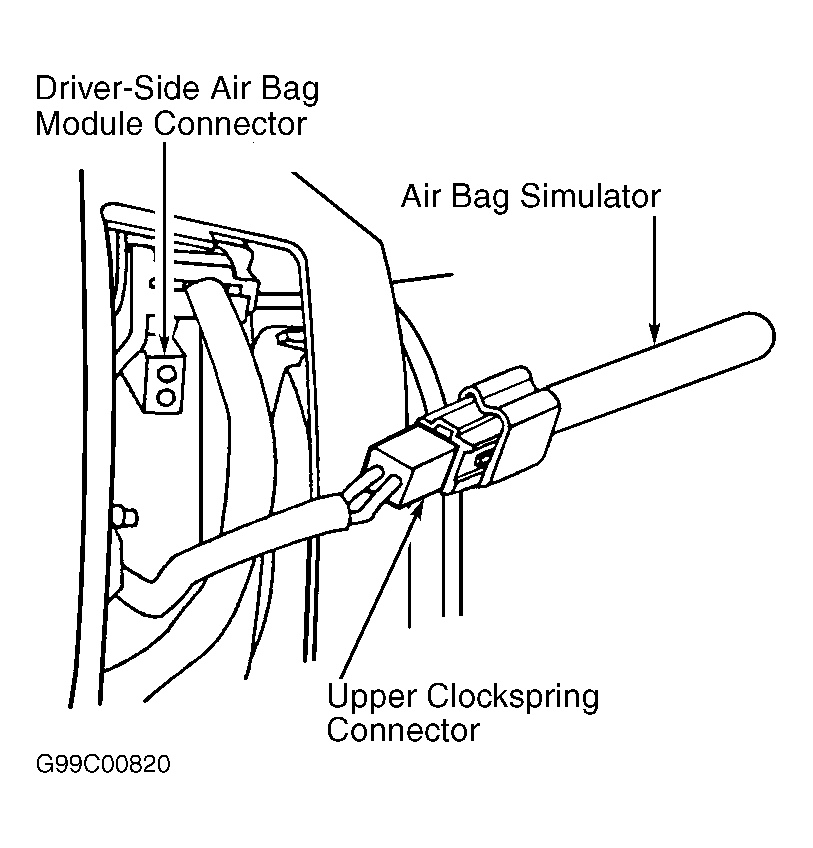

Fig 1: Disconnecting Driver Air Bag Module (Windstar)
G99C00820Courtesy of FORD MOTOR CO.
