Windshield Washer Hose Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the hood insulator. (See HOOD REMOVAL/INSTALLATION .)
  2. Slightly bend back the mudguard (RH).
  3. Disconnect joint pipe A.
  4. Remove windshield washer hose A from clips A.
  5. Remove clips B.
  6. Disconnect windshield washer hose B from the washer nozzle.
  7. Disconnect windshield washer hose C from the washer nozzle.
  8. Disconnect joint pipe B, then remove windshield washer hose A, B and C.
  9. Install in the reverse order of removal.

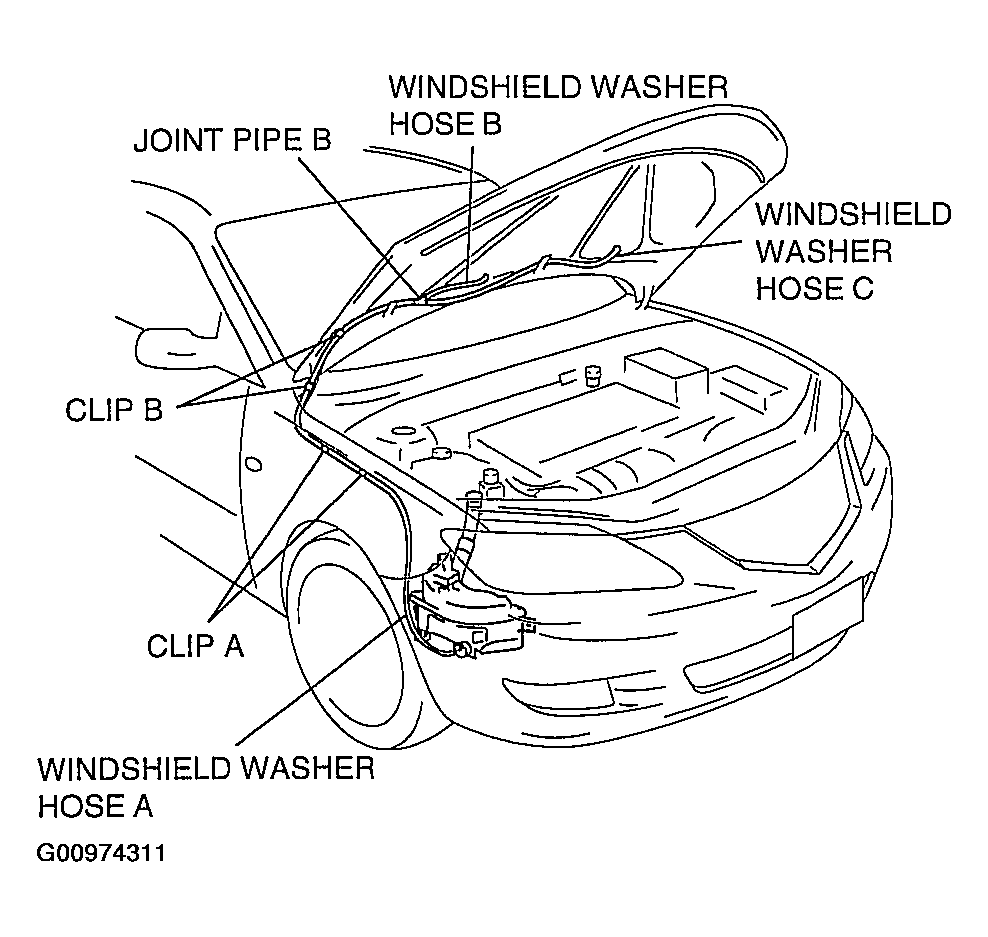

    Fig 1: Removing/Installing Windshield Washer Hoses
    G00974311Courtesy of MAZDA MOTORS CORP.
