Rear Wiper Motor Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Rear wiper arm and blade (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    2. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    3. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    4. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the rear wiper motor connector.
  4. Remove the bolts, then remove the rear wiper motor.
  5. Remove the outer bushing.
  6. Install in the reverse order of removal.

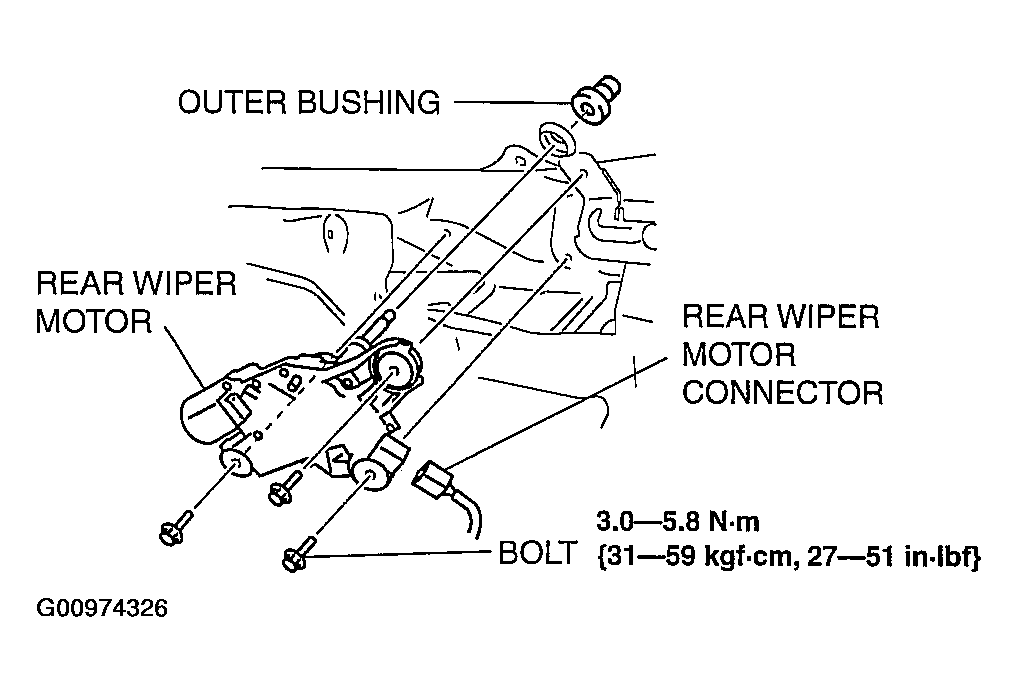

    Fig 1: Rear Wiper Motor With Torque Specifications
    G00974326Courtesy of MAZDA MOTORS CORP.
