Rear Wiper Motor Inspection
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

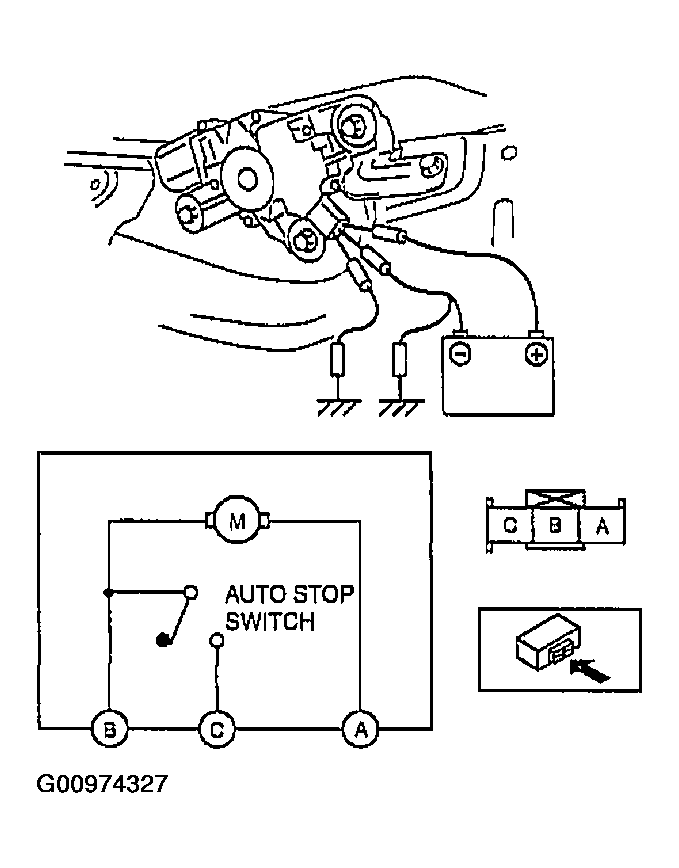

- Connect battery positive voltage to the rear wiper motor terminal B, and ground the rear wiper motor terminal A.
- Verify that the rear wiper motor operates.
- If there is any malfunction, replace the rear wiper motor.
Courtesy of MAZDA MOTORS CORP.
