Rear Wiper And Washer Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the continuity between the rear wiper and washer switch terminals is as indicated.
- If not as indicated in the table, replace the wiper and washer switch.

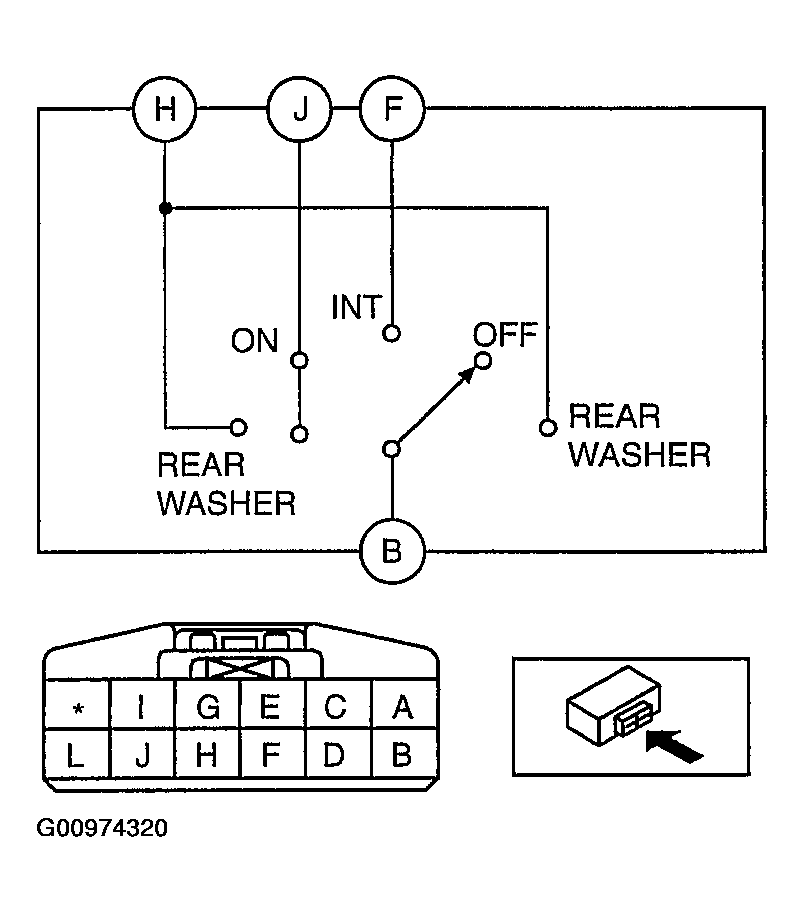

  Fig 1: Rear Wiper/Washer Switch Circuit & Connector Terminal Identification
  Courtesy of MAZDA MOTORS CORP.

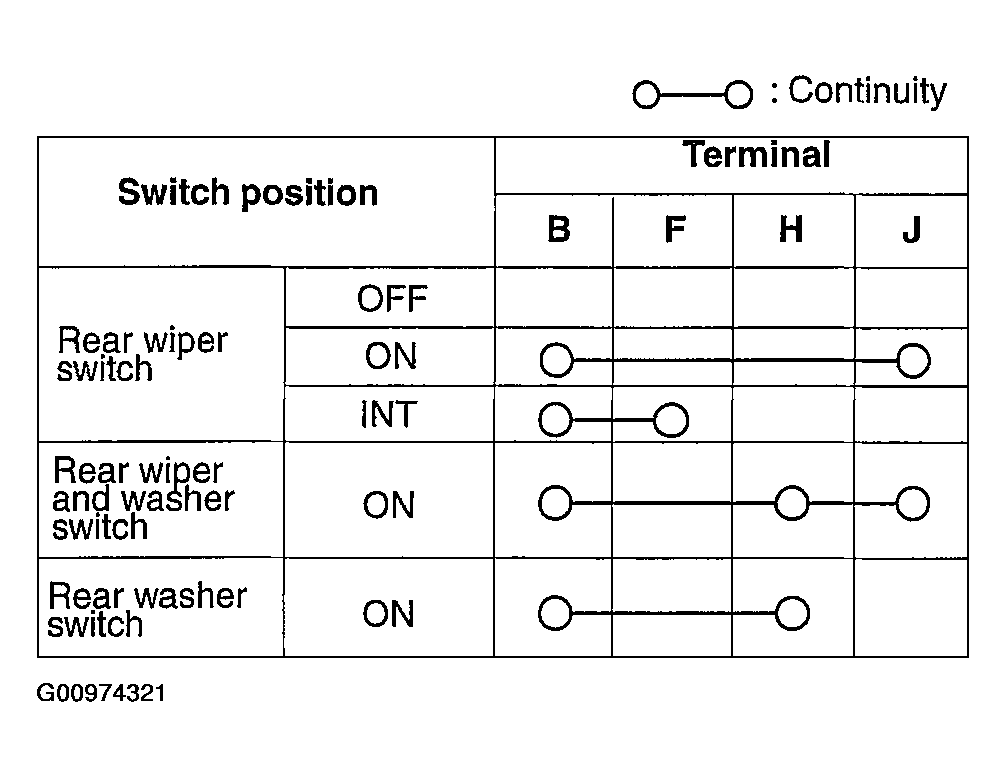

  Fig 2: Rear Wiper/Washer Switch Continuity Table
  Courtesy of MAZDA MOTORS CORP.
