Reverse Servo: Removal
WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
- On models with 3.4L engine, remove the throttle body air inlet duct. On models with 3.8L engine, remove air cleaner assembly. On all models, remove the shift cable lever from the manual shaft. See SHIFT CABLE .

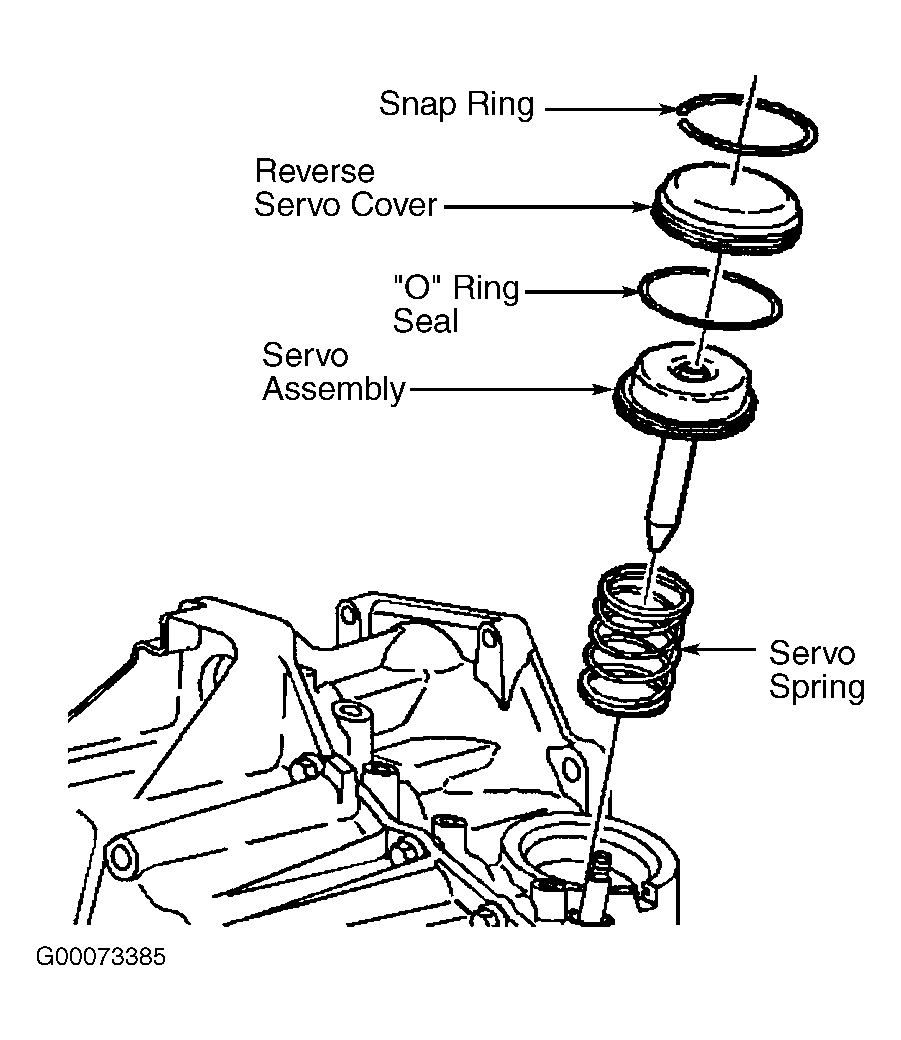

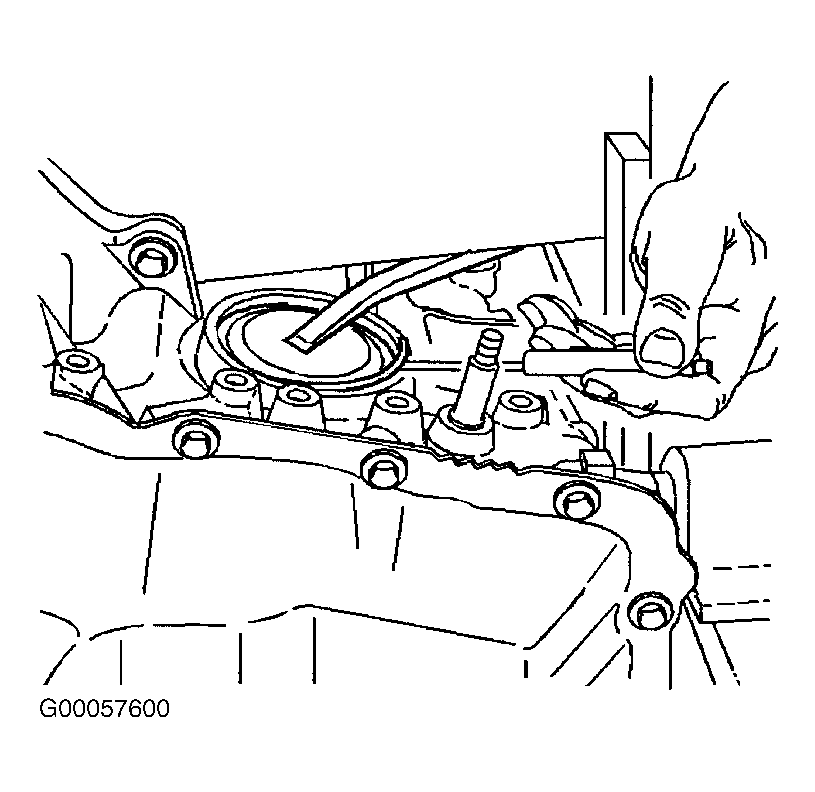

- Depress the reverse servo cover. See Fig 1 . Remove the snap ring. See Fig 2 . Pull the O-ring seal out through the slot in the case. Use side cutting pliers in order to cut the servo cover O-ring seal.
- Depress the reverse servo cover, grasp one end of the cut seal and pull the seal out of the servo cover.
- Remove the reverse servo cover. Remove the servo assembly. Remove the servo spring.
