Section 789 (Lighting System)
>>
Discharge Headlight System Inspection
>>
Discharge Headlight Inoperative
>>
Inspection procedure
Inspection procedure
WARNING:
This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

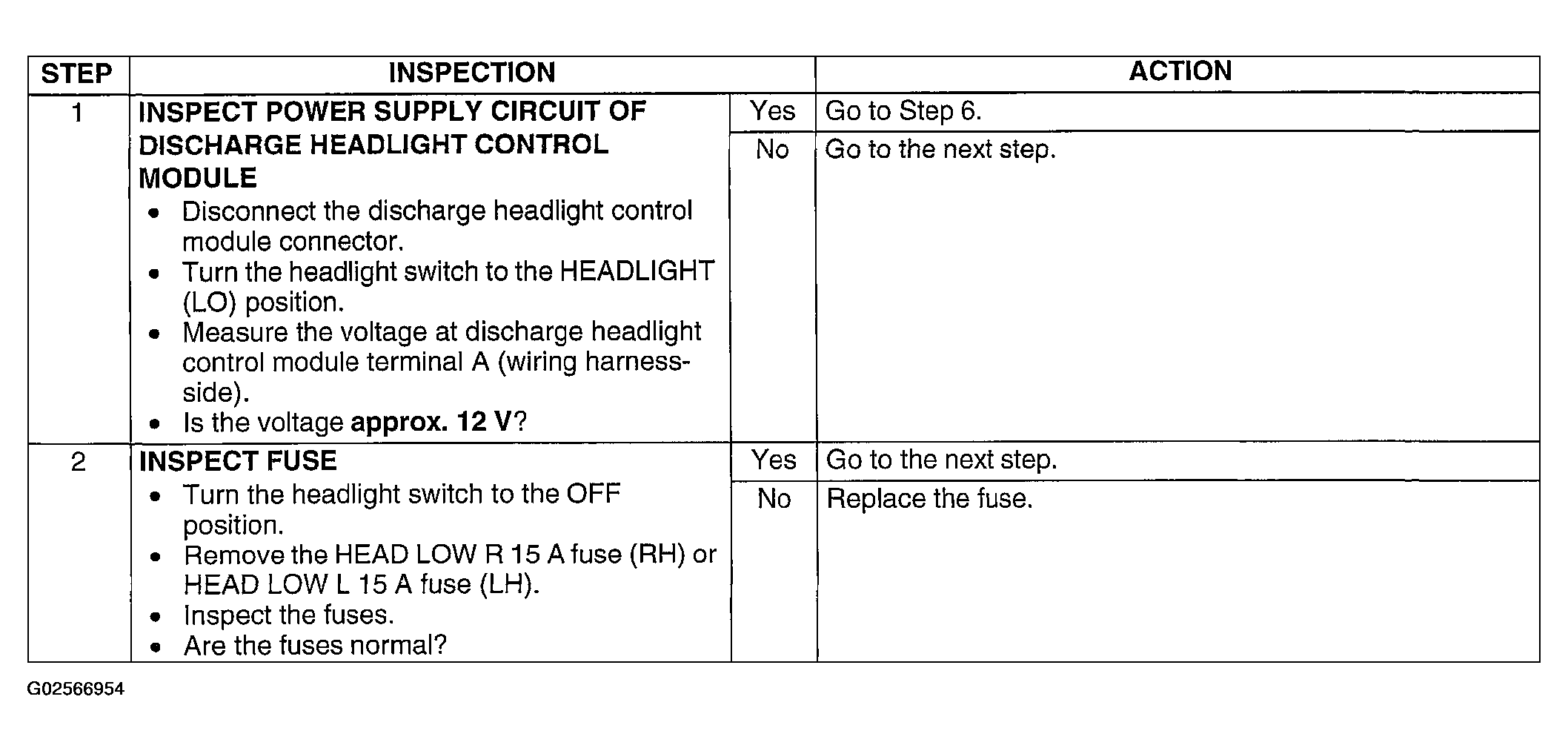

Fig 1: Inspection Procedure - Discharge Headlight Inoperative (Steps 1-2)
Courtesy of MAZDA MOTORS CORP.

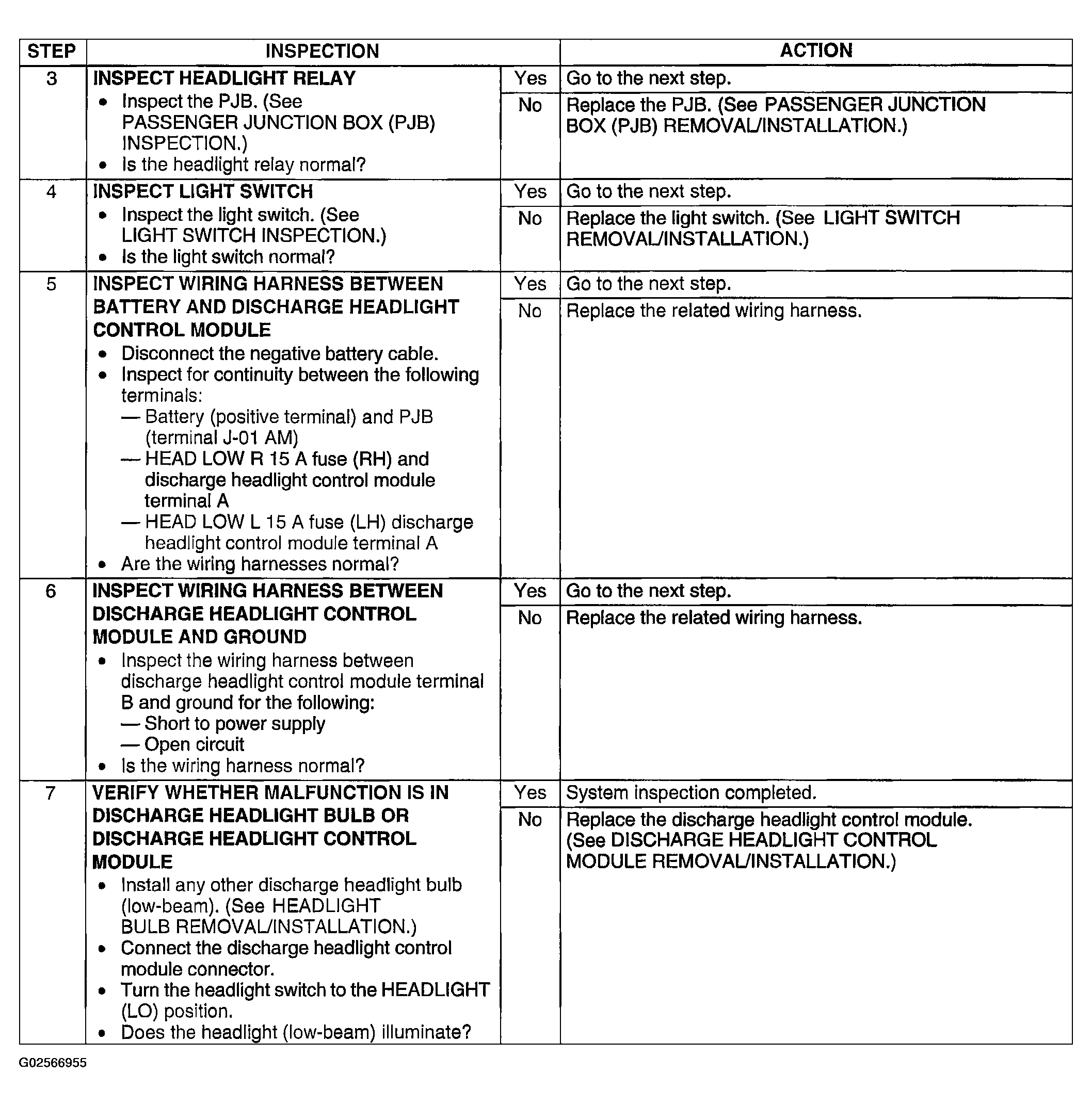

Fig 2: Inspection Procedure - Discharge Headlight Inoperative (Steps 3-7)
Courtesy of MAZDA MOTORS CORP.
