Ashtray Illumination Bulb Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the ashtray panel. (See CONSOLE REMOVAL/INSTALLATION .)
  3. Remove the socket, then remove the ashtray illumination bulb.
  4. Install in the reverse order of removal.

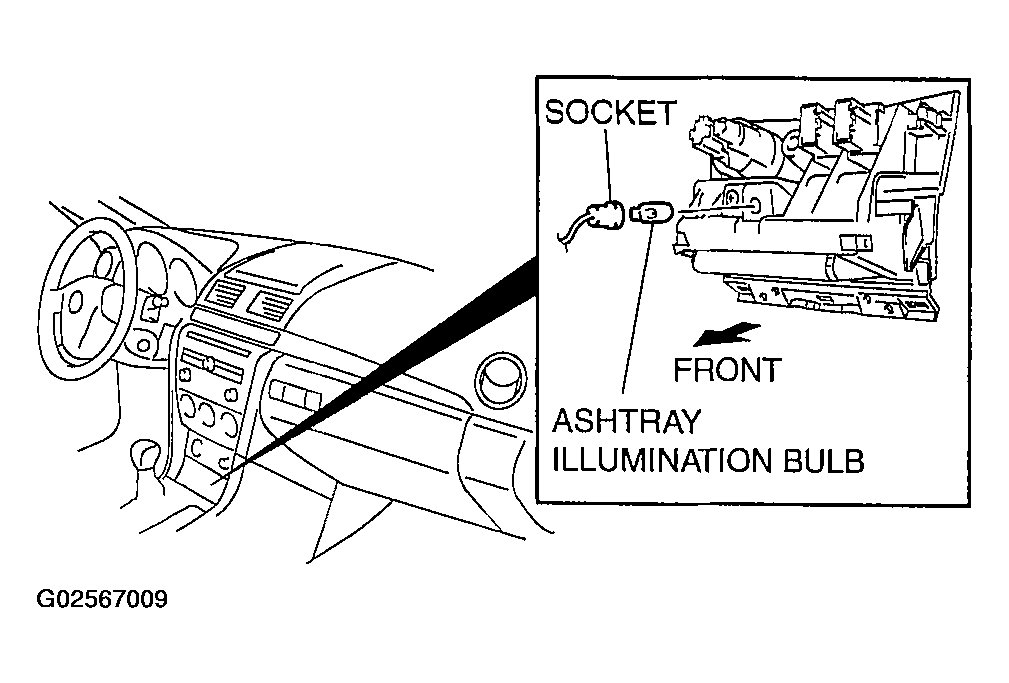

    Fig 1: Removing/Installing Ashtray Illumination Bulb
    G02567009Courtesy of MAZDA MOTORS CORP.
