Driver's Side

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    2. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    4. Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
    5. Lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    6. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    7. Dashboard center panel (See DASHBOARD CENTER PANEL REMOVAL/INSTALLATION .)
    8. Meter hood (See METER HOOD REMOVAL/INSTALLATION .)
    9. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
    10. Dashboard garnish (See DASHBOARD GARNISH REMOVAL/INSTALLATION .)
  3. Pull the driver-side ventilator grille outward and remove it.
  4. Remove the screw, then remove the driver-side demister grille.
  5. Install in the reverse order of removal.

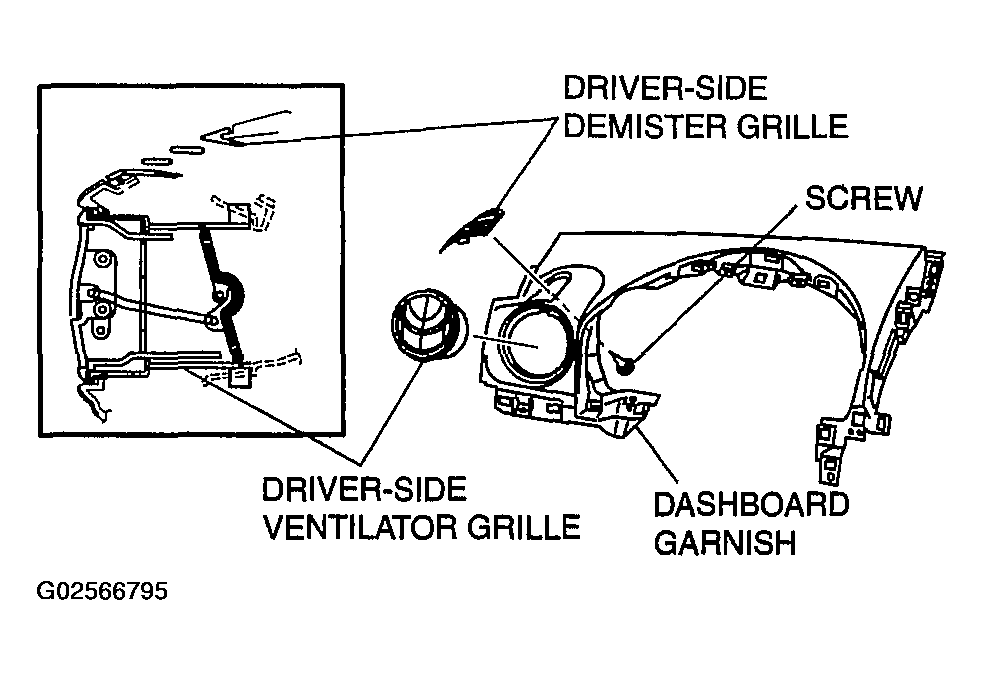

    Fig 1: Removing/Installing Ventilator Grille - Driver's Side
    G02566795Courtesy of MAZDA MOTORS CORP.
