Side Step Molding Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fasteners.
  2. While cutting the double-sided adhesive tape using a flathead screwdriver or a razor, separate the side step molding from the body.
    WARNING:
    • Using a razor with bare hands can cause injury. Always wear gloves when using a razor.
  3. Pull the side step molding outward, then disengage clips A from the body.

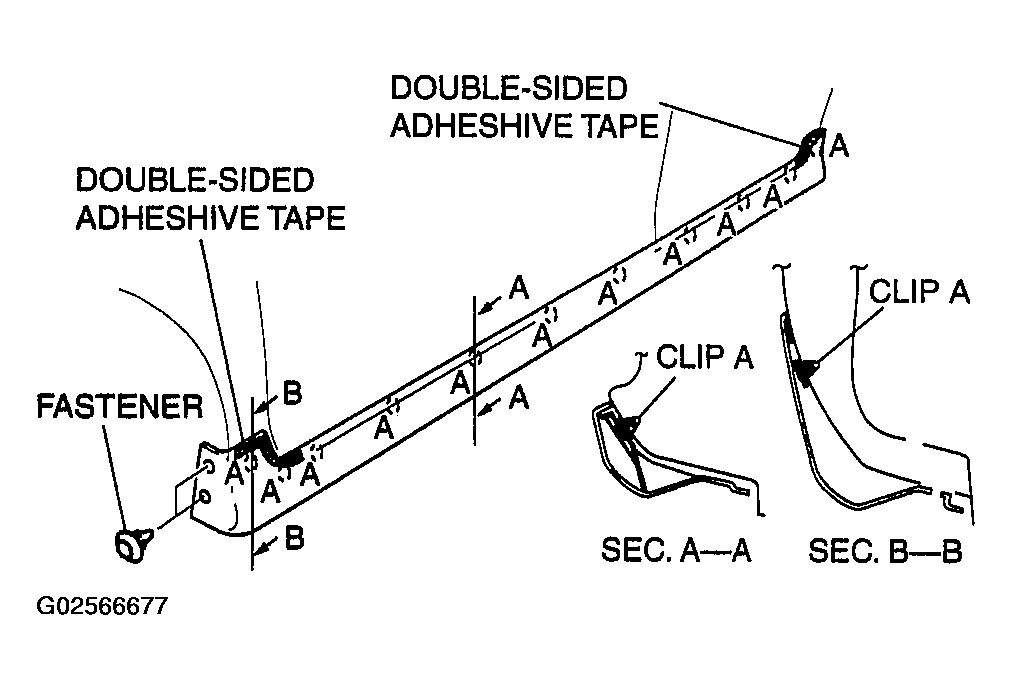

    Fig 1: Removing Side Step Molding
    G02566677Courtesy of MAZDA MOTORS CORP.
  4. Slide the side step molding towards the front of the vehicle and remove clips B from the side step molding.
    Fig 2: Locating Side Step Molding Clips
    G02566678Courtesy of MAZDA MOTORS CORP.
  5. Remove the side step molding.
  6. Install in the reverse order of removal.
    1. Attach double-sided adhesive tape to the side step molding as shown in the figure.
      Fig 3: Attaching Double-Sided Adhesive Tape To Side Step Molding
      G02566679Courtesy of MAZDA MOTORS CORP.
