5 Door

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  2. Remove the bolts and nut.
  3. Pull the rear spoiler upward, then disengage clips A from the liftgate.
  4. Remove the rear spoiler.
  5. Install in the reverse order of removal.

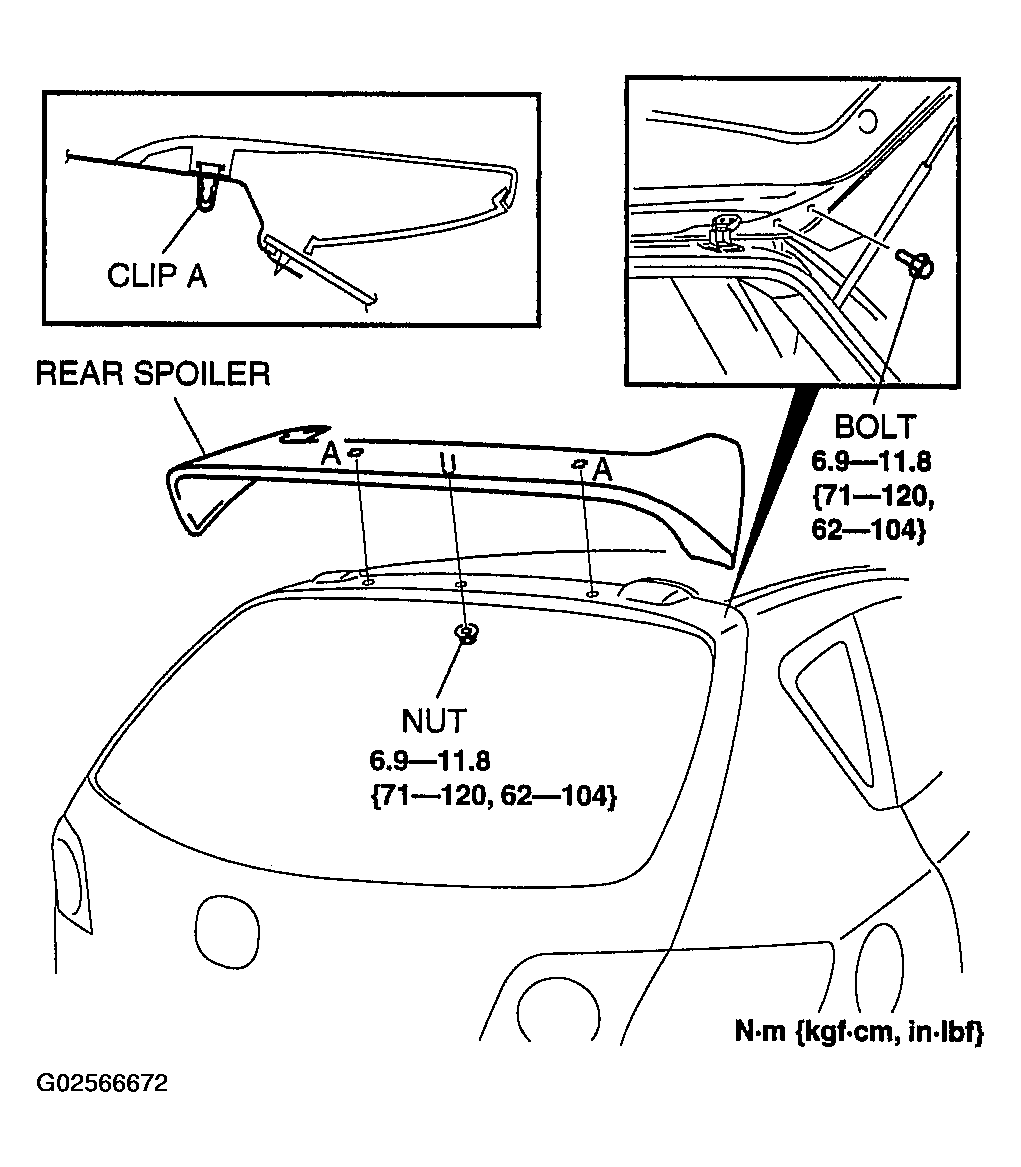

    Fig 1: Rear Spoiler - 5 Door With Torque Specifications
    G02566672Courtesy of MAZDA MOTORS CORP.
