4 Door

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the nuts.
  2. While cutting the double-sided adhesive tape using a flathead screwdriver or a razor, separate the rear spoiler from the trunk lid.
    WARNING:
    • Using a razor with bare hands can cause injury. Always wear gloves when using a razor.
  3. Pull the rear spoiler upward, then disengage clips A and tabs B from the trunk lid.
  4. Remove the rear spoiler.
  5. Install in the reverse order of removal.

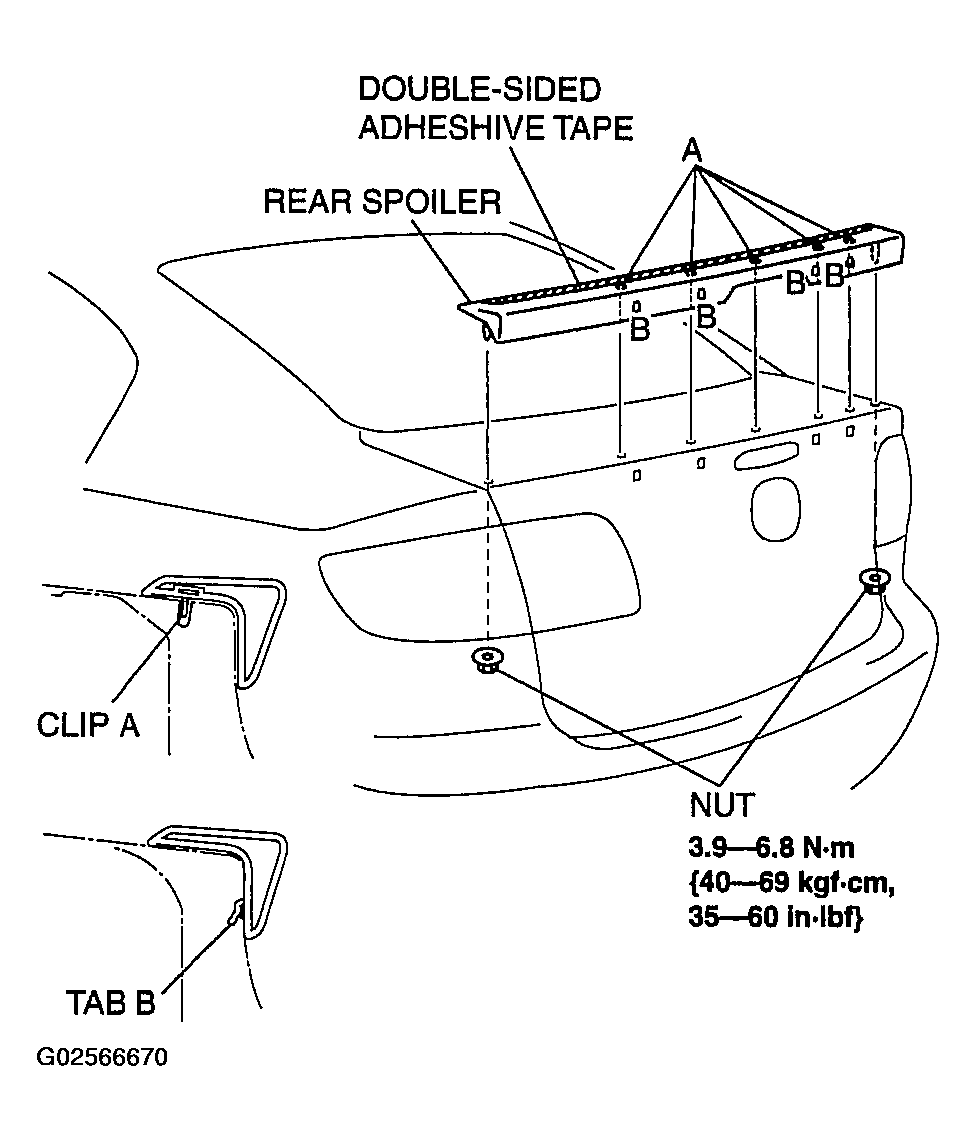

    Fig 1: Rear Spoiler - 4 Door With Torque Specifications
    G02566670Courtesy of MAZDA MOTORS CORP.
    1. Attach double-sided adhesive tape to the rear spoiler as shown in the figure.
      Fig 2: Attaching Double-Sided Adhesive Tape To Rear Spoiler
      G02566671Courtesy of MAZDA MOTORS CORP.
