Front BELTLINE Molding Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  2. Remove the power outer mirror installation screws and move the mirror to access the front end of the front beltline molding. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
  3. Raise the center of the front beltline molding and detach tabs A.
  4. Using a small flathead screwdriver, detach clip B and remove the front beltline molding.
  5. Install in the reverse order of removal.

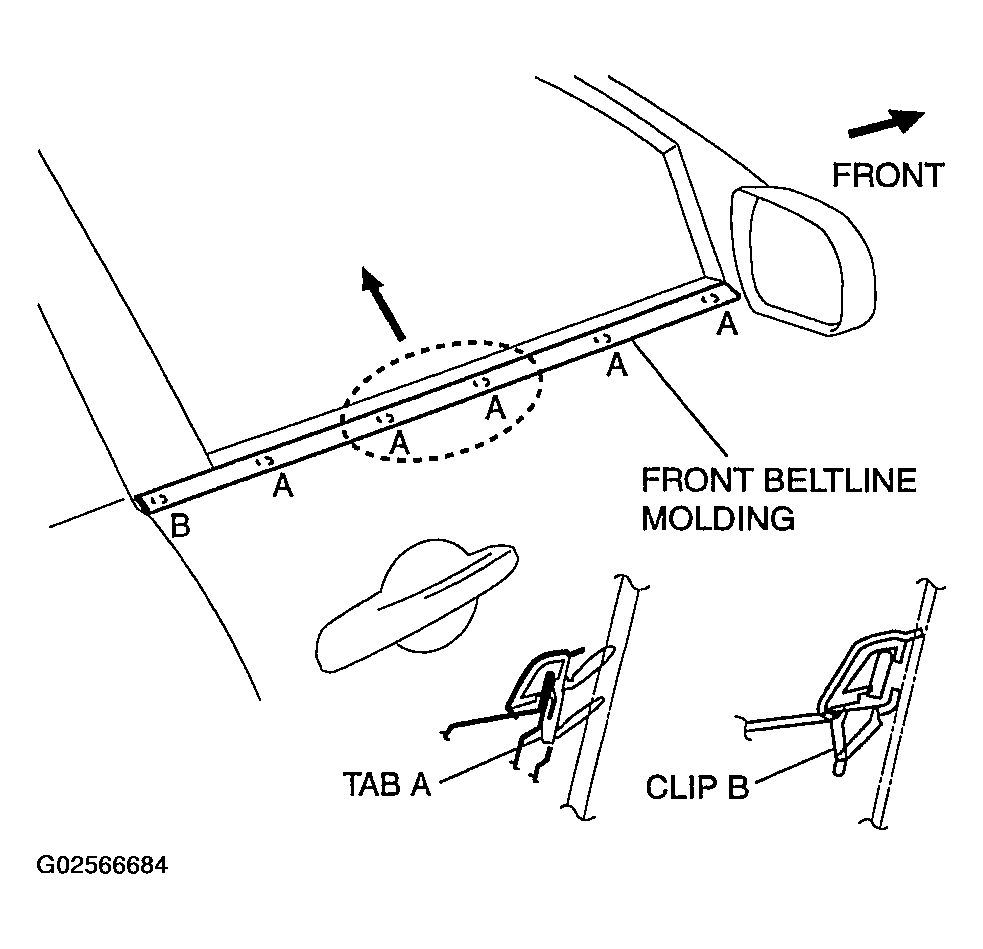

    Fig 1: Removing/Installing Front Beltline Molding
    G02566684Courtesy of MAZDA MOTORS CORP.
