Door Sash Film Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove any grease or dirt from the affixing surface of the door.
Cut away the unused portion along the dotted lines.
Peel off the backing paper and attach the door sash film onto the door as shown in the figure.

Fig 1: Peeling Off Backing Paper Of Door Sash Film
Courtesy of MAZDA MOTORS CORP.

Fig 2: Installing Door Sash Film
Courtesy of MAZDA MOTORS CORP.

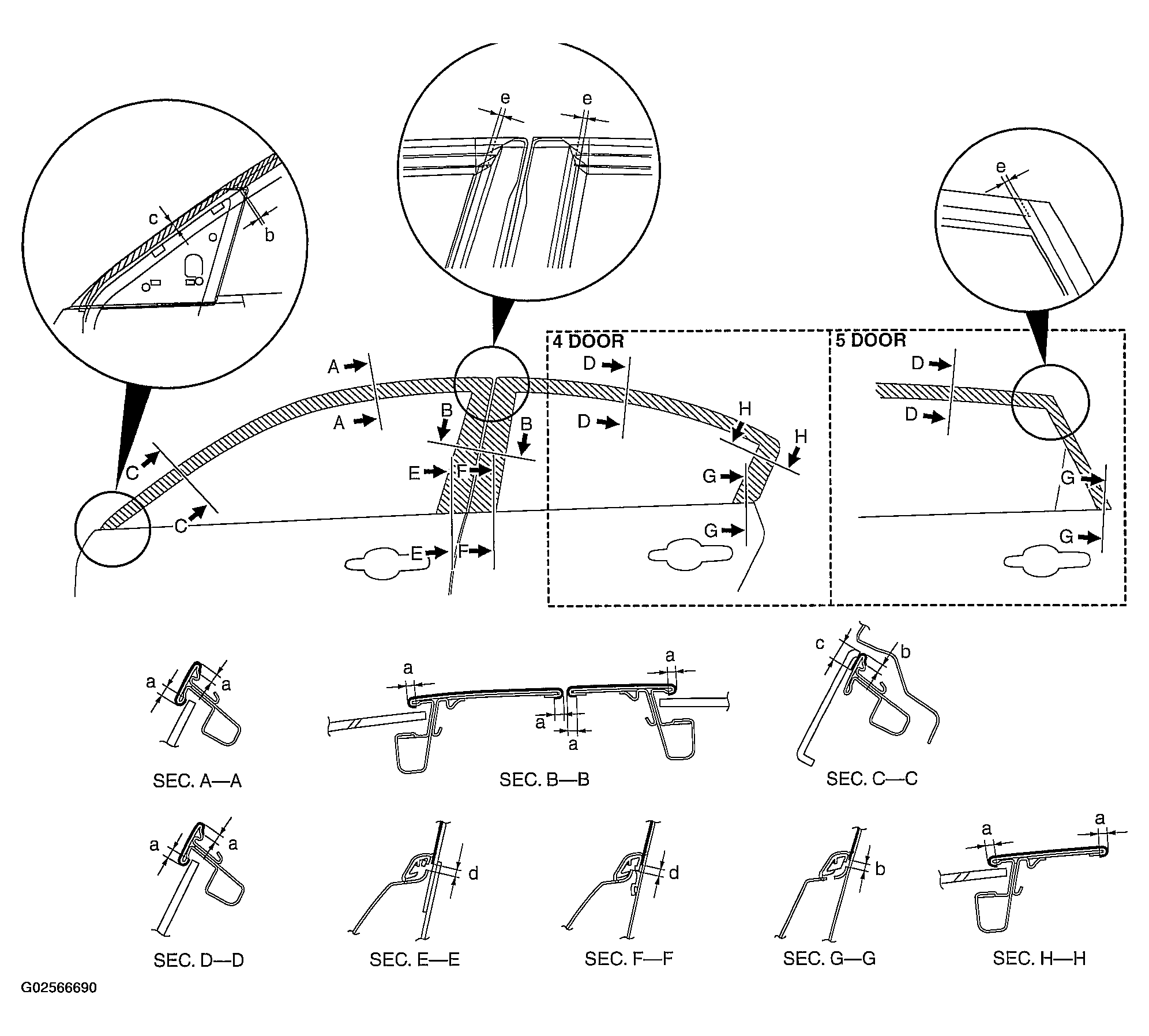

Standard clearance
1. 3.0-5.0 mm {0.12-0.19 in}
2. 3.0 mm {0.12 in}
3. 10.0 mm {0.39 in}
4. 3.0 mm {0.12 in} or less
5. 2.5-4.0 mm {0.10-0.15 in}
Peel off the transparent protective film on the door sash film.
