Continuity Inspection

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Water or foreign material entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign material on the connector when disconnecting it.
  1. Remove the battery duct and battery cover.
  2. Disconnect the negative battery cable.
  3. Remove the under cover.
  4. Disconnect the TR switch connector.
  5. Verify that the continuity is as indicated in the table.
    • If there is any malfunction, adjust the TR switch and go to Step 5.
    Fig 1: Transaxle Range (TR) Switch Continuity Table
    G00974630Courtesy of MAZDA MOTORS CORP.

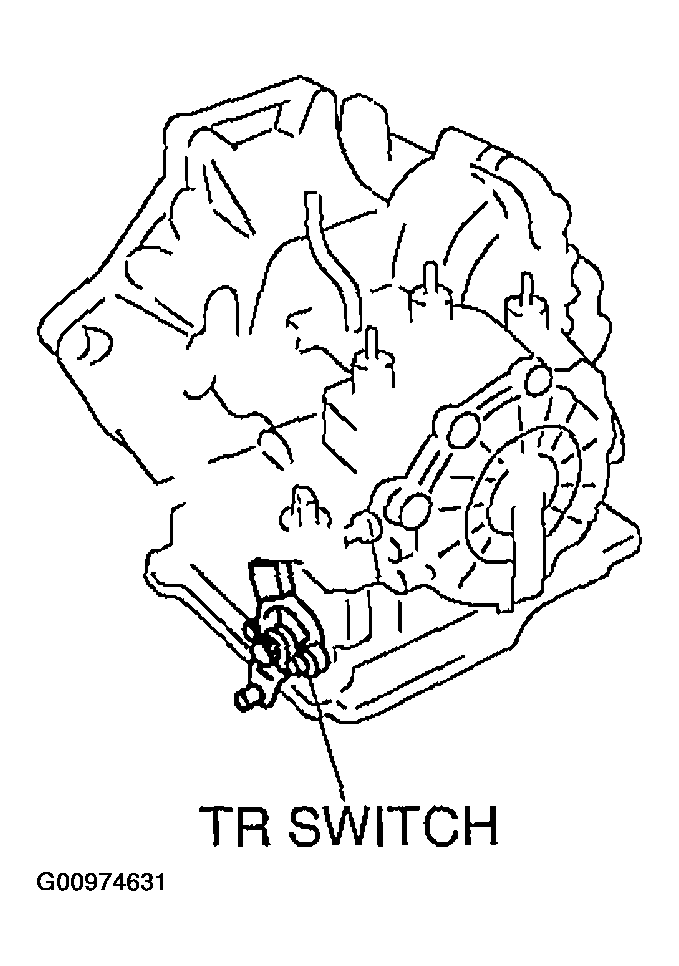

    Fig 2: Locating TR Switch
    G00974631Courtesy of MAZDA MOTORS CORP.
  6. Reinspect for continuity at TR switch.
  7. Connect the TR switch connector.
  8. Install the under cover.
  9. Connect the negative battery cable.
  10. Install the battery duct and battery cover.
    Fig 3: Identifying TR Switch Connector Terminals
    G00974632Courtesy of MAZDA MOTORS CORP.
