On-Vehicle Inspection

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery duct and battery cover.
  2. Disconnect the negative battery cable.
  3. Remove the under cover.
    CAUTION:
    • Water or foreign material entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign material on the connector when disconnecting it.
  4. Disconnect the transaxle connector.

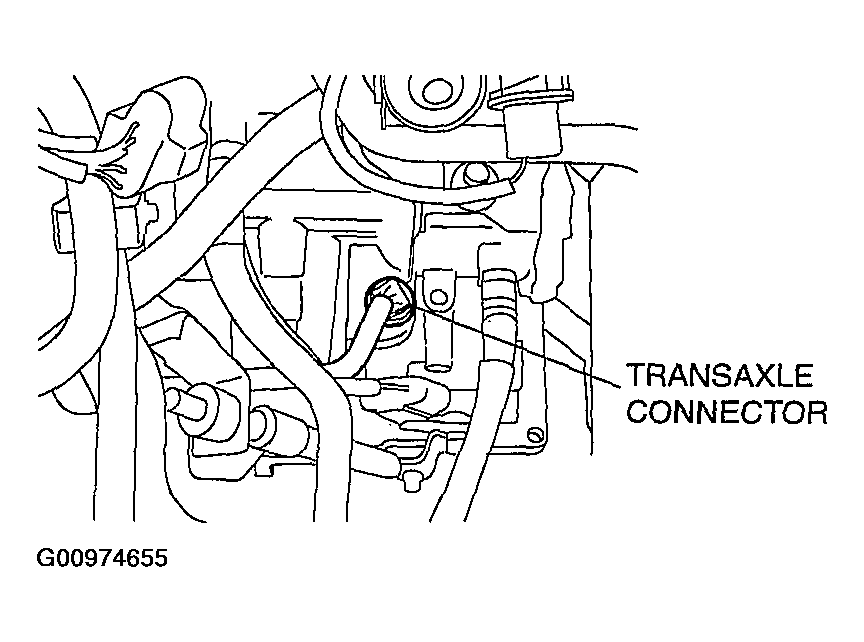

    Fig 1: Locating Transaxle Connector
    G00974655Courtesy of MAZDA MOTORS CORP.
  5. Measure the resistance between the transaxle connector terminals E and H.

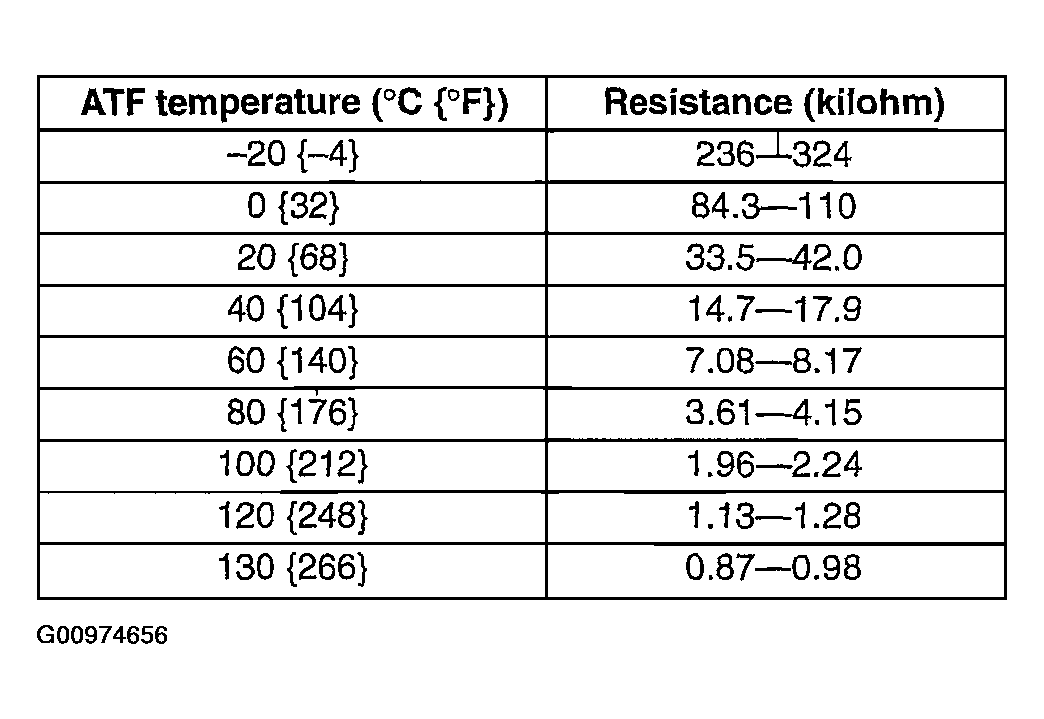

    Fig 2: TFT Sensor Temperature/Resistance Table
    G00974656Courtesy of MAZDA MOTORS CORP.
    Fig 3: Identifying Transaxle Connector Terminals E And H
    G00974657Courtesy of MAZDA MOTORS CORP.
  6. Install the under cover.
  7. Connect the negative battery cable.
  8. Install the battery duct and battery cover.
