Solenoid Valve Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery duct and battery cover.
  2. Disconnect the negative battery cable.
  3. Remove the under cover.
  4. Remove the control valve body. (See CONTROL VALVE BODY REMOVAL .)
  5. Remove the solenoid valve (s).
    Fig 1: Identifying Solenoid Valves
    G00974683Courtesy of MAZDA MOTORS CORP.
  6. Apply ATF to a new O-ring and install it on the solenoid valve.
  7. Install the solenoid valve in the control valve body.

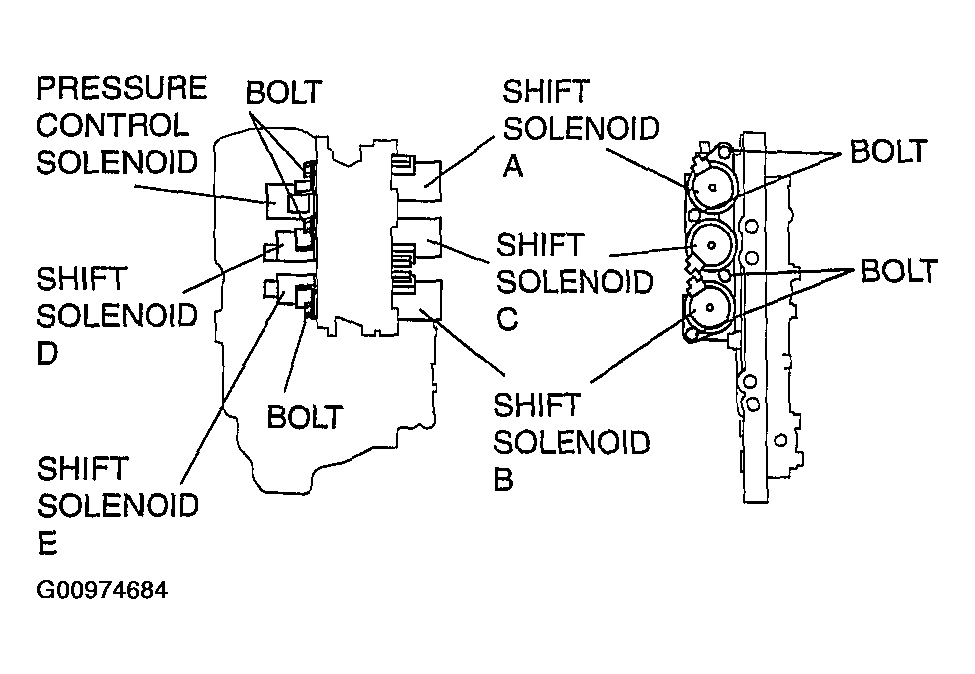

    Fig 2: Installing Solenoid Valves
    G00974684Courtesy of MAZDA MOTORS CORP.
    1. Tightening torque 7.8-10.8 N.m {80-110 kgf.cm, 69.5-95.4 in.lbf}
  8. Install the control valve body. (See CONTROL VALVE BODY REMOVAL .)
  9. Install the under cover.
  10. Connect the negative battery cable.
  11. Install the battery duct and battery cover.
  12. Add ATF and, with the engine idling, inspect the ATF level and inspect for leakage. (See Automatic Transaxle Fluid (ATF) Level Inspection .)
  13. Perform the mechanical system test. (See MECHANICAL SYSTEM TEST .)
