Vehicle speed at shift point table (L3 engine)

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

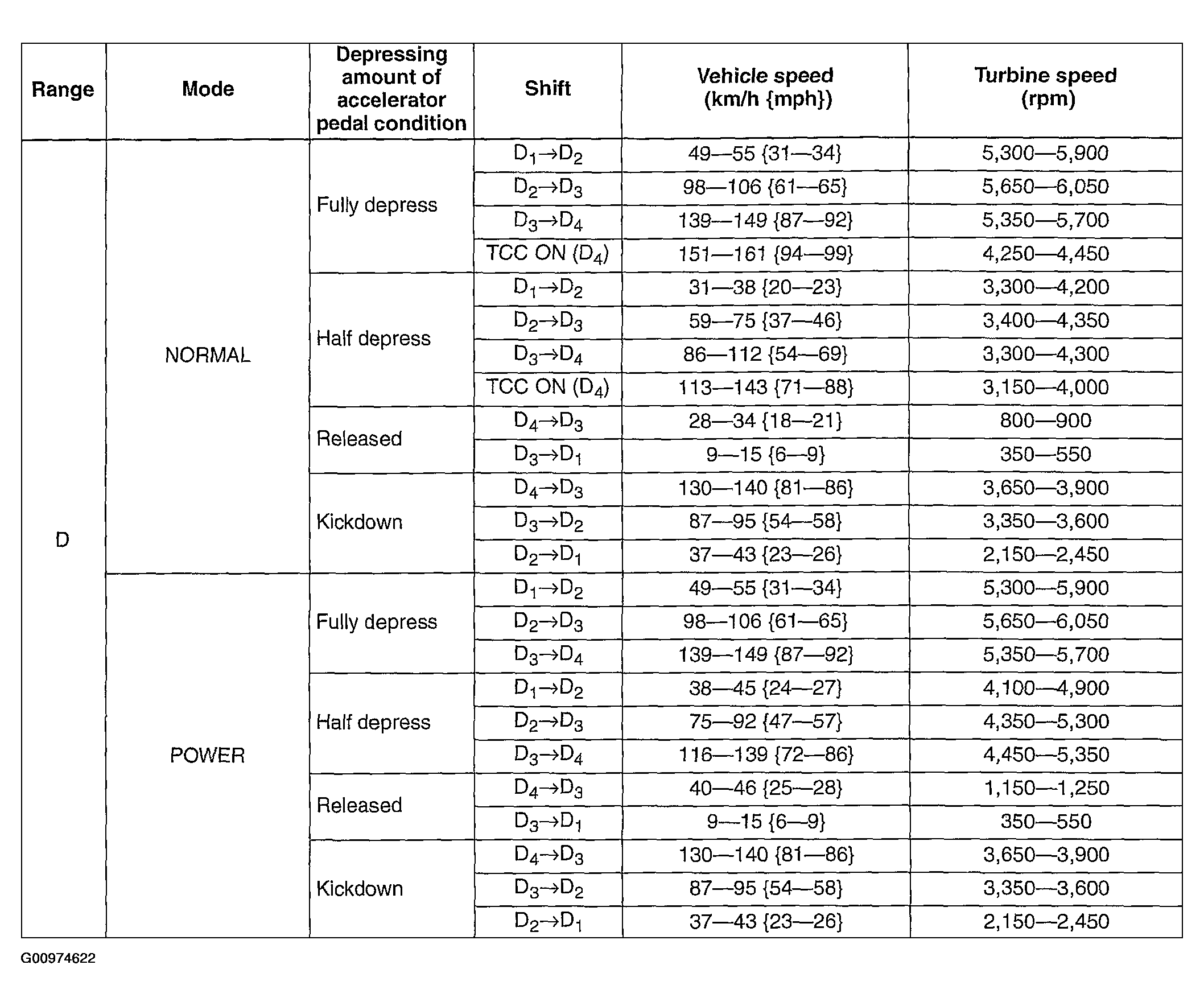

Fig 1: Vehicle Speed At Shift Point Table (L3 Engine)

Courtesy of MAZDA MOTORS CORP.
