Oil Cooler Removal/Installation [Automatic Transaxle]: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery duct and battery cover.
  2. Disconnect the negative battery cable.
  3. Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [LF] . (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L3] .)
  4. Remove the under cover.
  5. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
  6. Drain the ATF into a container. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
  7. Disconnect the water hose.
  8. Remove in the order indicated in the table.
  9. Install in the reverse order of removal.
  10. Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
  11. Inspect the engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION .)
  12. Add ATF to the specified level. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
  13. Inspect for oil leakage from the oil pipes and oil hoses.
  14. Inspect for coolant from the hoses.
  15. Inspect the ATF level and condition. (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION .)
  16. Perform the line pressure test. (See MECHANICAL SYSTEM TEST .)

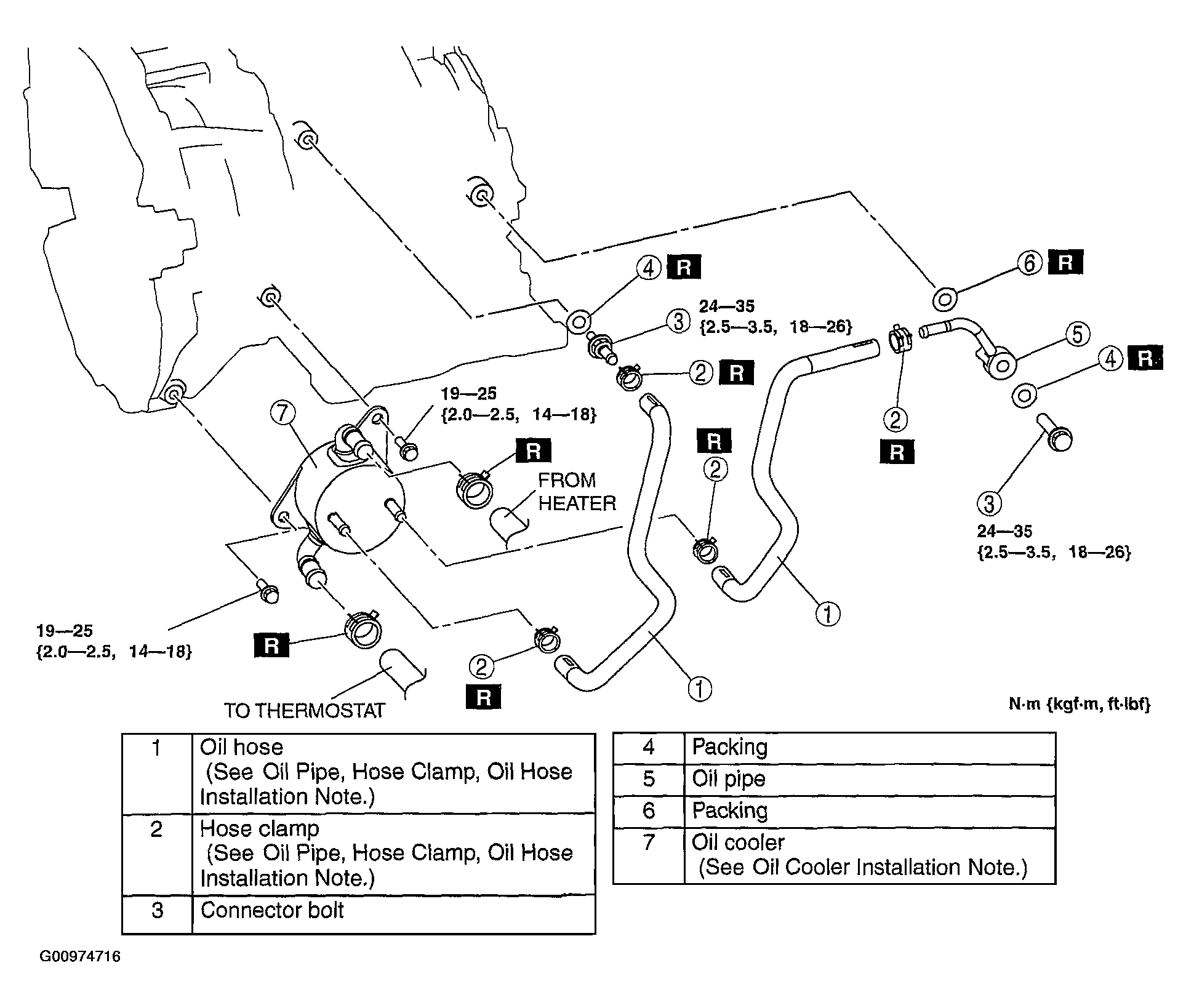

    Fig 1: Oil Cooler With Torque Specifications
    G00974716Courtesy of MAZDA MOTORS CORP.
