Input/Turbine Speed Sensor Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery duct and battery cover.
  2. Disconnect the negative battery cable.
  3. Remove the battery, battery box and battery tray.
  4. Disconnect the input/turbine speed sensor connector.
  5. Remove the input/turbine speed sensor.
  6. Apply ATF to a new O-ring and install it on a new input/turbine speed sensor.
  7. Install the input/turbine speed sensor.
    1. Tightening torque 8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}

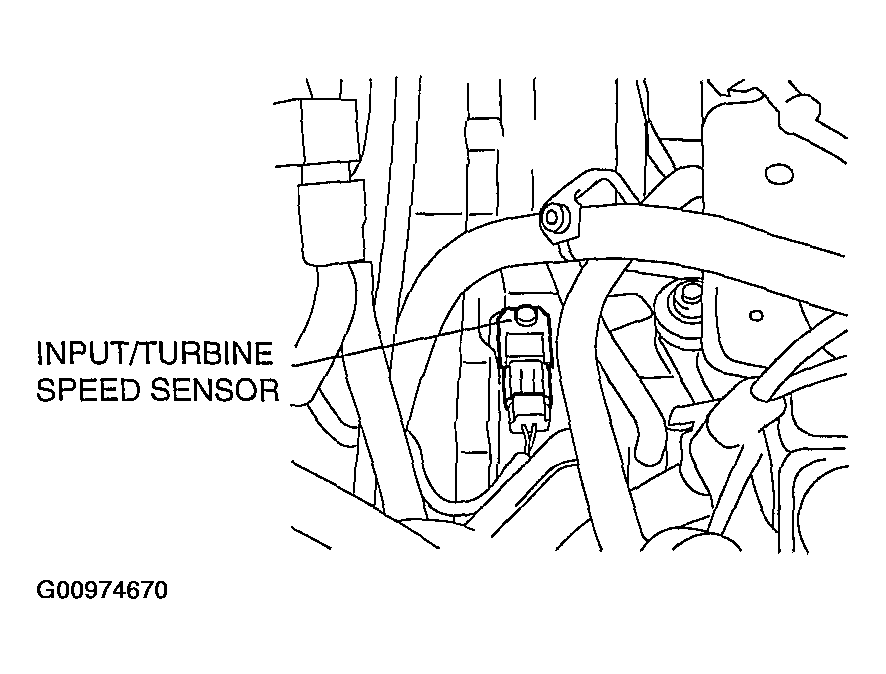

    Fig 1: Locating Input/Turbine Speed Sensor
    G00974670Courtesy of MAZDA MOTORS CORP.
  8. Connect the input/turbine speed sensor connector.
  9. Install the battery, battery box and battery tray.
  10. Connect the negative battery cable.
  11. Install the battery duct and battery cover.
