Drive Plate Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

Fig 1: Drive Plate Removal Order
Courtesy of MAZDA MOTORS CORP.

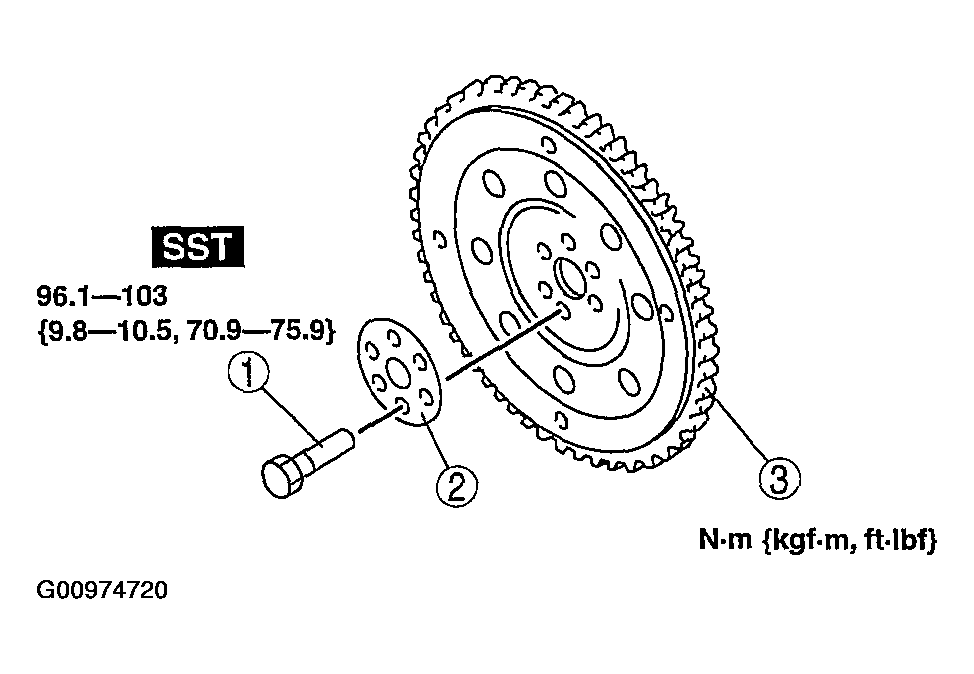

Fig 2: Drive Plate With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
