Torque Converter Nuts Removal Note
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

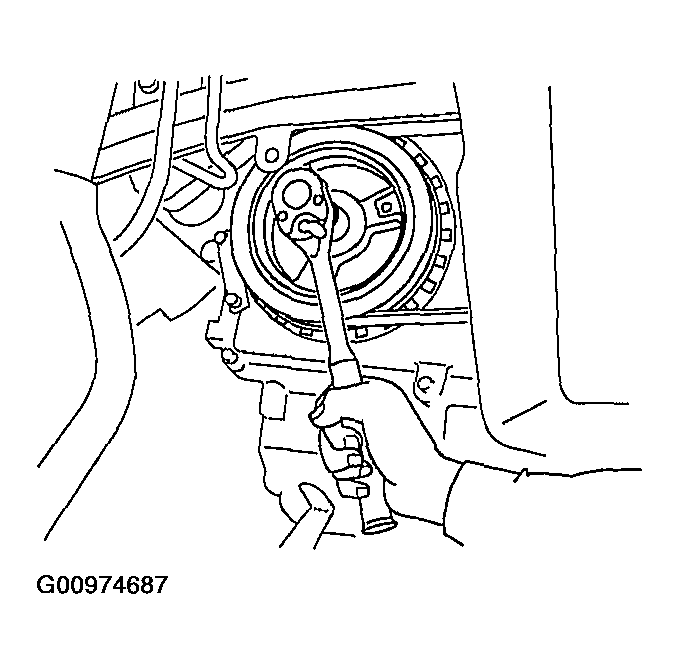

- Hold the crankshaft pulley to prevent the drive plate from rotating.
Courtesy of MAZDA MOTORS CORP.
- Remove the torque converter nuts from the starter installation hole.
Courtesy of MAZDA MOTORS CORP.
