Torque Converter Nuts Installation Note
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

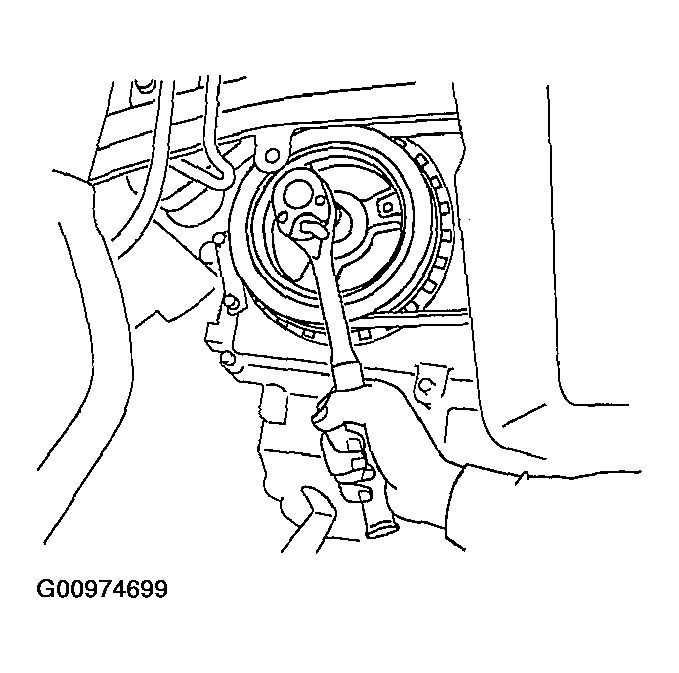

- Hold the crankshaft pulley to prevent the drive plate from rotating.CAUTION:
- Loosely and equally tighten the torque converter nuts, then further tighten them to the specified tightening torque.
- Tighten the torque converter mounting nuts.
- Tightening torque 34.3-60.8 N.m {3.5-6.1 kgf.m, 25.3-44.8 ft.lbf}
