No. 4 Engine Mount Removal Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

To prevent crushing the front fender panel, insert a wood slab of appropriate size between the front fender panel and upper apron reinforcement.
NOTE:
- Wood slab height
1. 4 door: approx. 35 mm {1.4 in}
2. 5 door: approx. 60 mm {2.4 in}

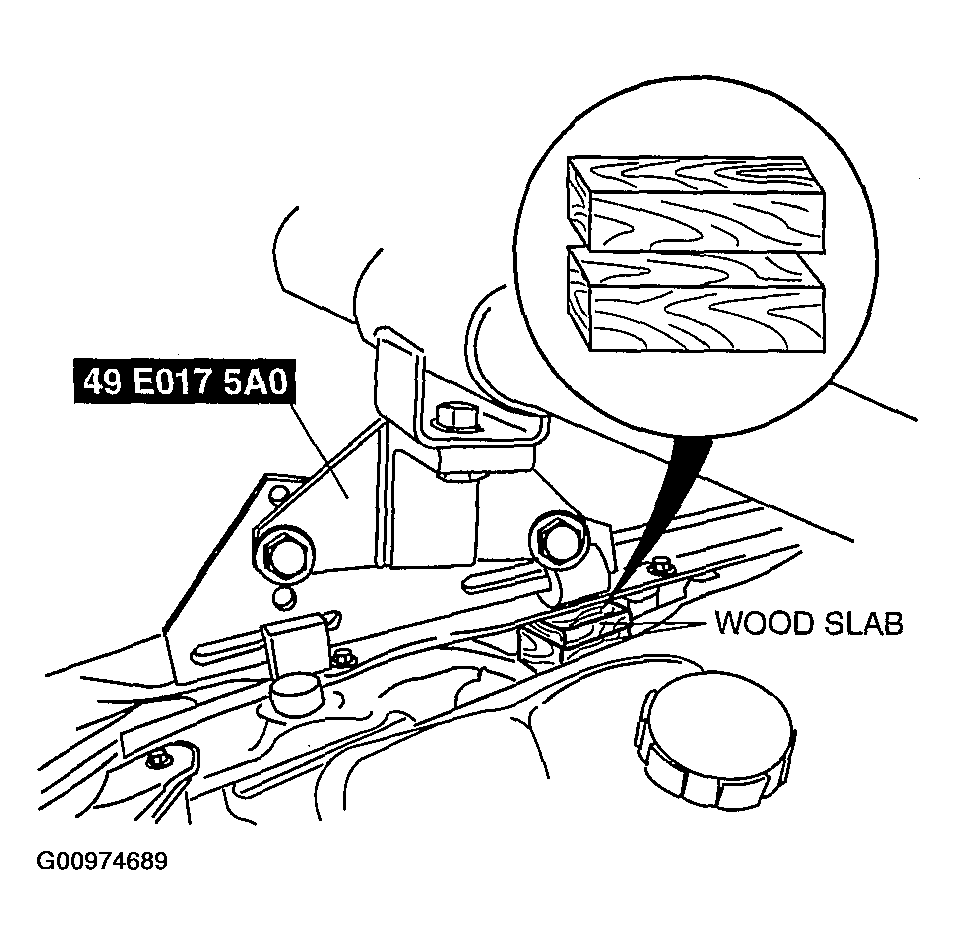

Fig 1: Inserting Wood Slab Between The Front Fender Panel And Upper Apron Reinforcement
Courtesy of MAZDA MOTORS CORP.
Support the engine using the SST .
Remove the battery tray bracket, No.4 engine mount rubber and bracket.

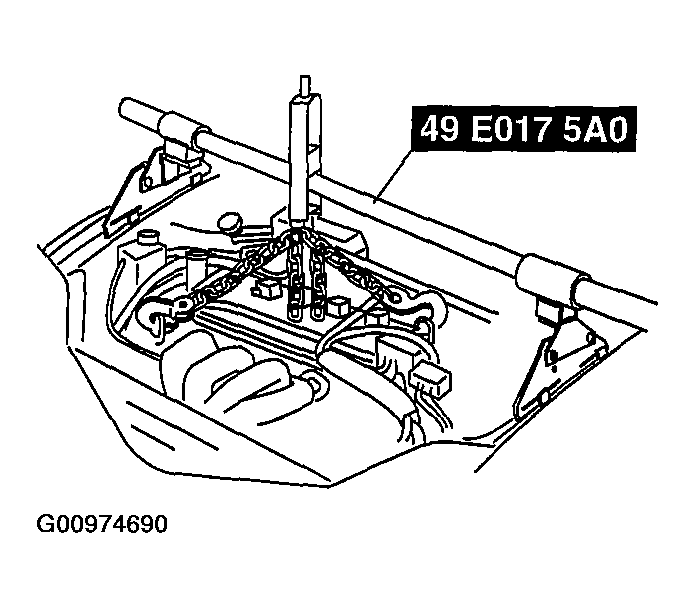

Fig 2: Supporting Engine Using SST
Courtesy of MAZDA MOTORS CORP.
