No. 1 Engine Mount and No. 4 Engine Mount Installation Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Install the No. 4 engine mount bracket on the transaxle case and tighten nuts.

Fig 1: Installing No. 4 Engine Mount Bracket On Transaxle Case With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install the No. 1 engine mount rubber to the crossmember and temporarily tighten bolts.

Fig 2: Installing No. 1 Engine Mount Rubber To Crossmember
Courtesy of MAZDA MOTORS CORP.
Place the No. 4 engine mount rubber with the body stud bolts passing through the holes and tighten the new bolt as shown in the figure.

Fig 3: Tightening New Bolt On Engine Mount Rubber With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Place the battery tray bracket on the No.4 engine mount rubber with body stud bolts passing through the holes and tighten bolts and nuts in the order as shown in the figure.

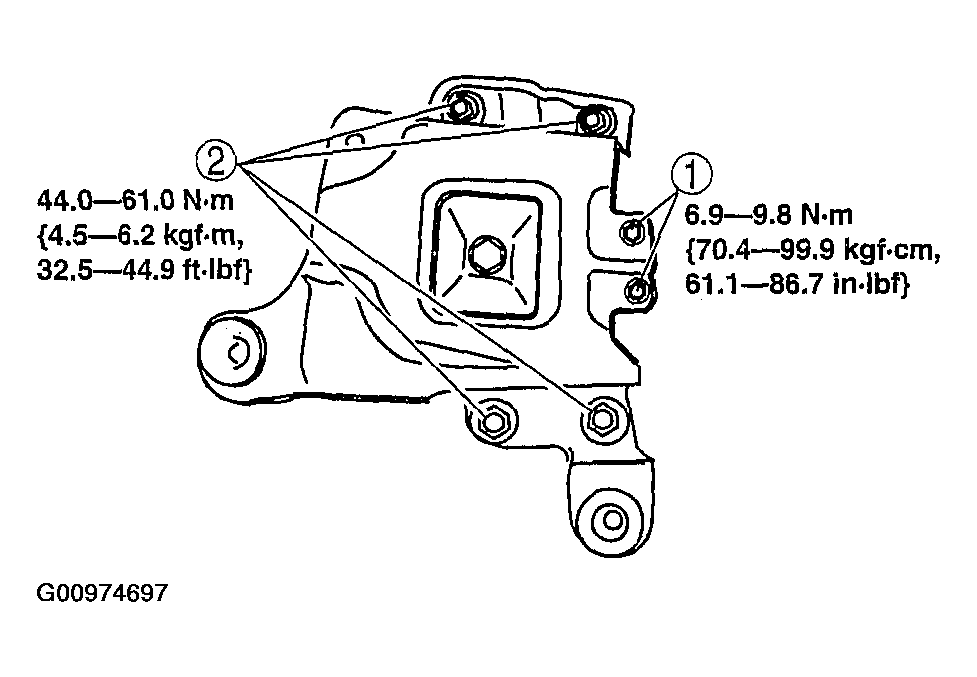

Fig 4: Tightening Body Stud Bolts & Nuts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.

Fig 5: No. 4 Engine Mount Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
Remove the SSTs.
Fully tighten the bolts
CAUTION:
- Tighten the bolts in the order shown in the figure to prevent abnormal noise and vibration after assembly.
1. Tightening torque 93.1-116.6 N.m {9.5-11.8 kgf.m, 68.7-85.9 ft.lbf}
