Manual Transaxle Removal Note
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Loosen the part marked A and lean the engine toward the transaxle.
Courtesy of MAZDA MOTORS CORP.

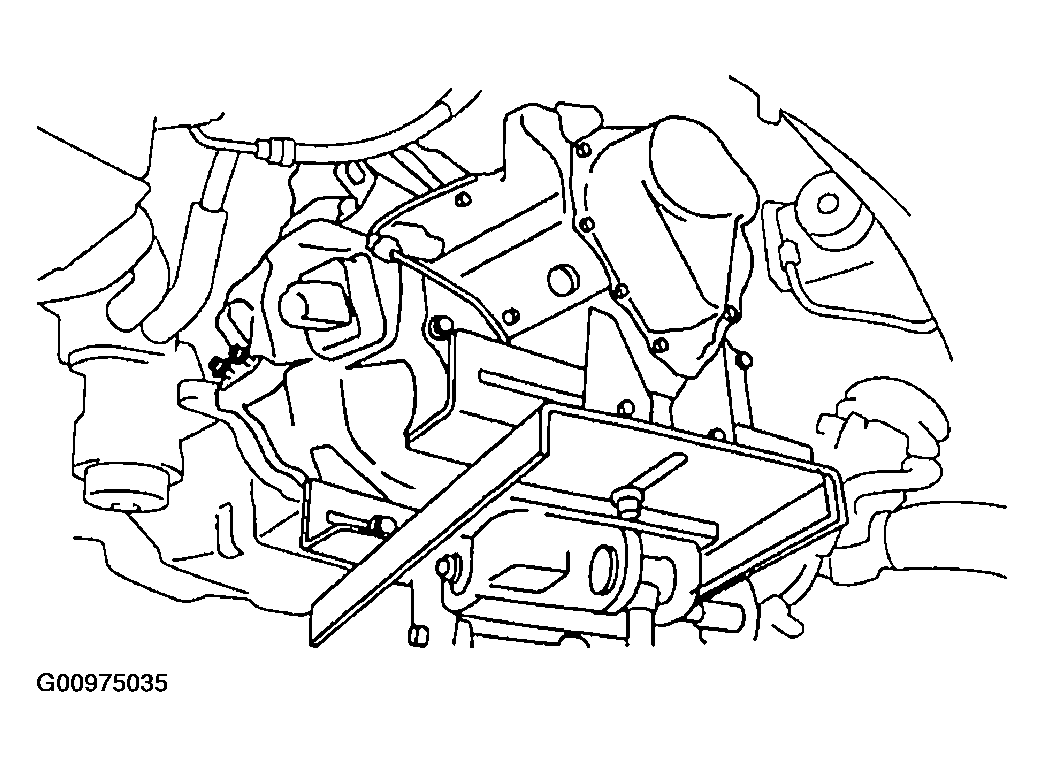

- Support the transaxle on a jack.
- Remove the transaxle mounting bolts.
- Remove the transaxle.
Courtesy of MAZDA MOTORS CORP.
