Manual Transaxle Installation Note
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

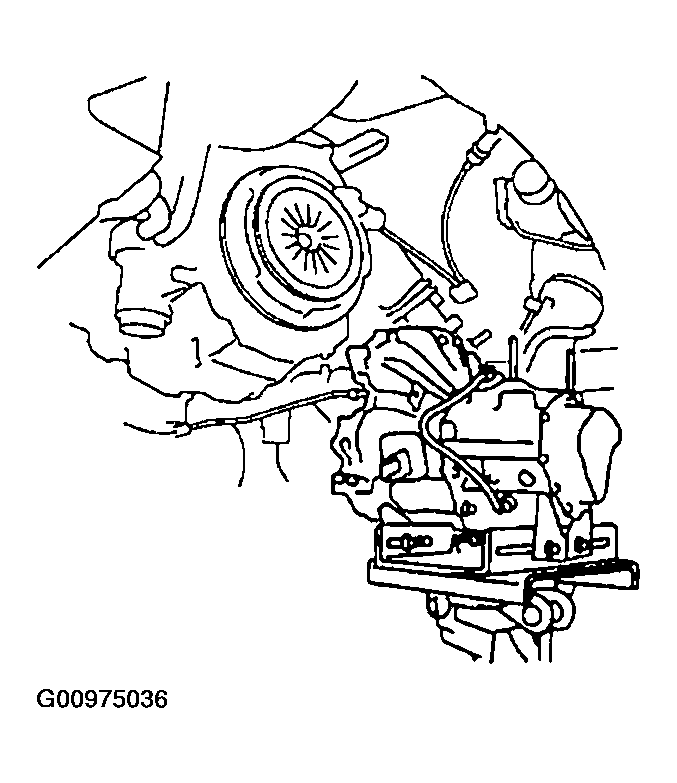

- Set the transaxle on a jack and lift into place.
- Install the transaxle mounting bolts.
- Tighten the SST
(49 E017 5A0) so that the engine is located at the specified position.
Courtesy of MAZDA MOTORS CORP.
