Clutch Cover and Disc Removal Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the SSTs.
  2. Loosen each bolt one turn at a time in a crisscross pattern until spring tension is released.
  3. Remove the clutch cover and disc.

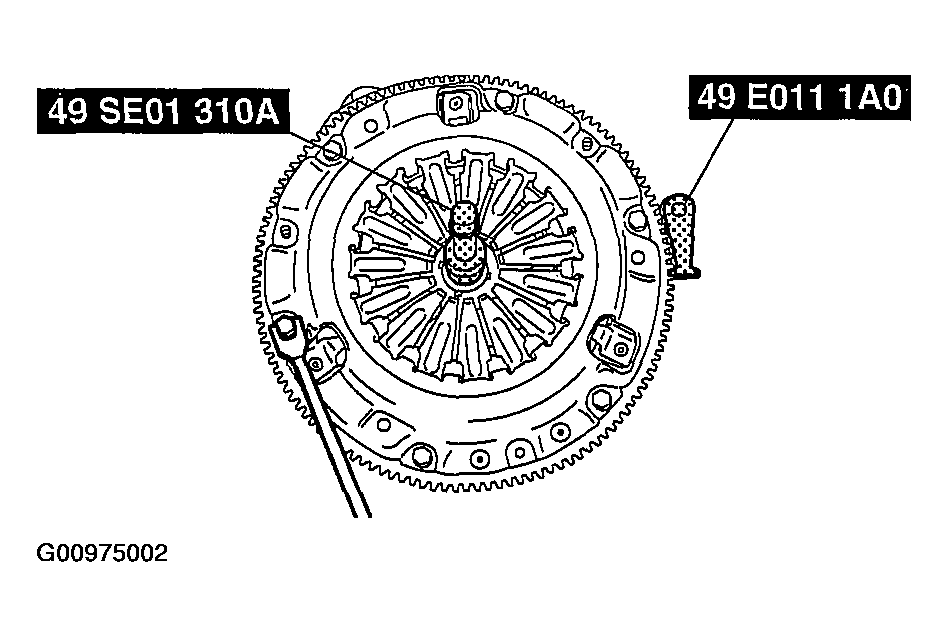

    Fig 1: Removing Clutch Cover And Disc
    G00975002Courtesy of MAZDA MOTORS CORP.
