Clutch Cover Installation Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Install the SSTs.
Tighten the bolts evenly and gradually in a crisscross pattern.
1. Tightening torque 25.0-33.0 N.m {2.6-3.4 kgf.m, 18.5-24.4 ft.lbf}

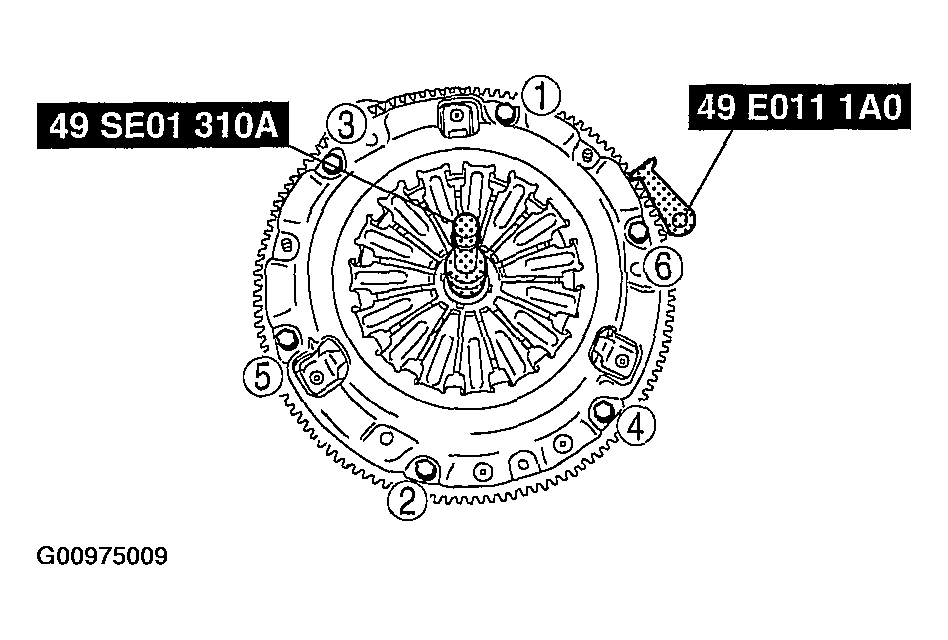

Fig 1: Installing Clutch Cover
Courtesy of MAZDA MOTORS CORP.
