Clutch Release Cylinder Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the under cover.
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

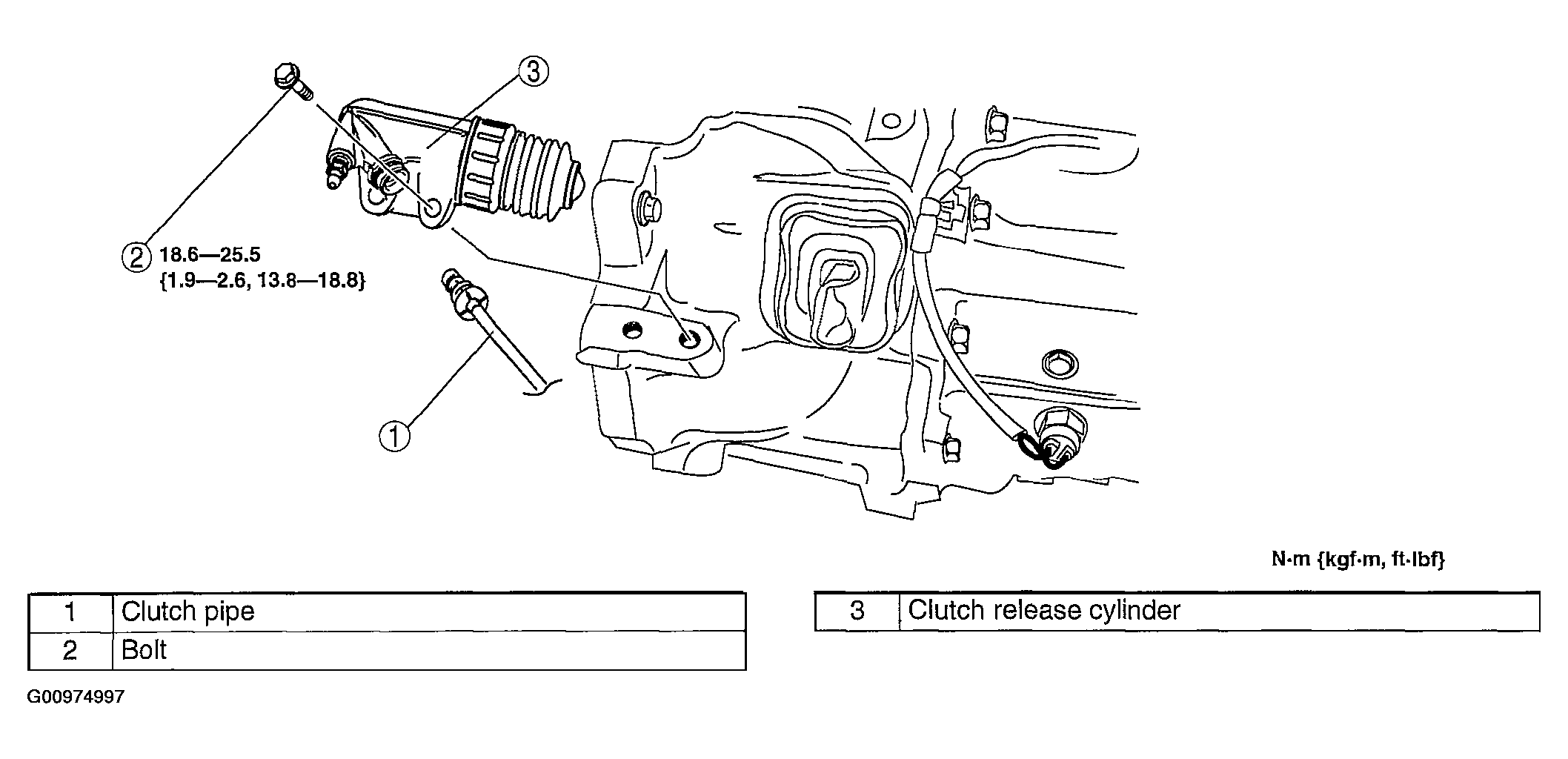

    Fig 1: Clutch Release Cylinder With Torque Specifications
    G00974997Courtesy of MAZDA MOTORS CORP.
