Clutch Pedal Removal/Installation: Notes
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION .)
- Separate the steering shaft.
- Separate the clutch pipe and reserve hose. (See CLUTCH MASTER CYLINDER REMOVAL/INSTALLATION .)

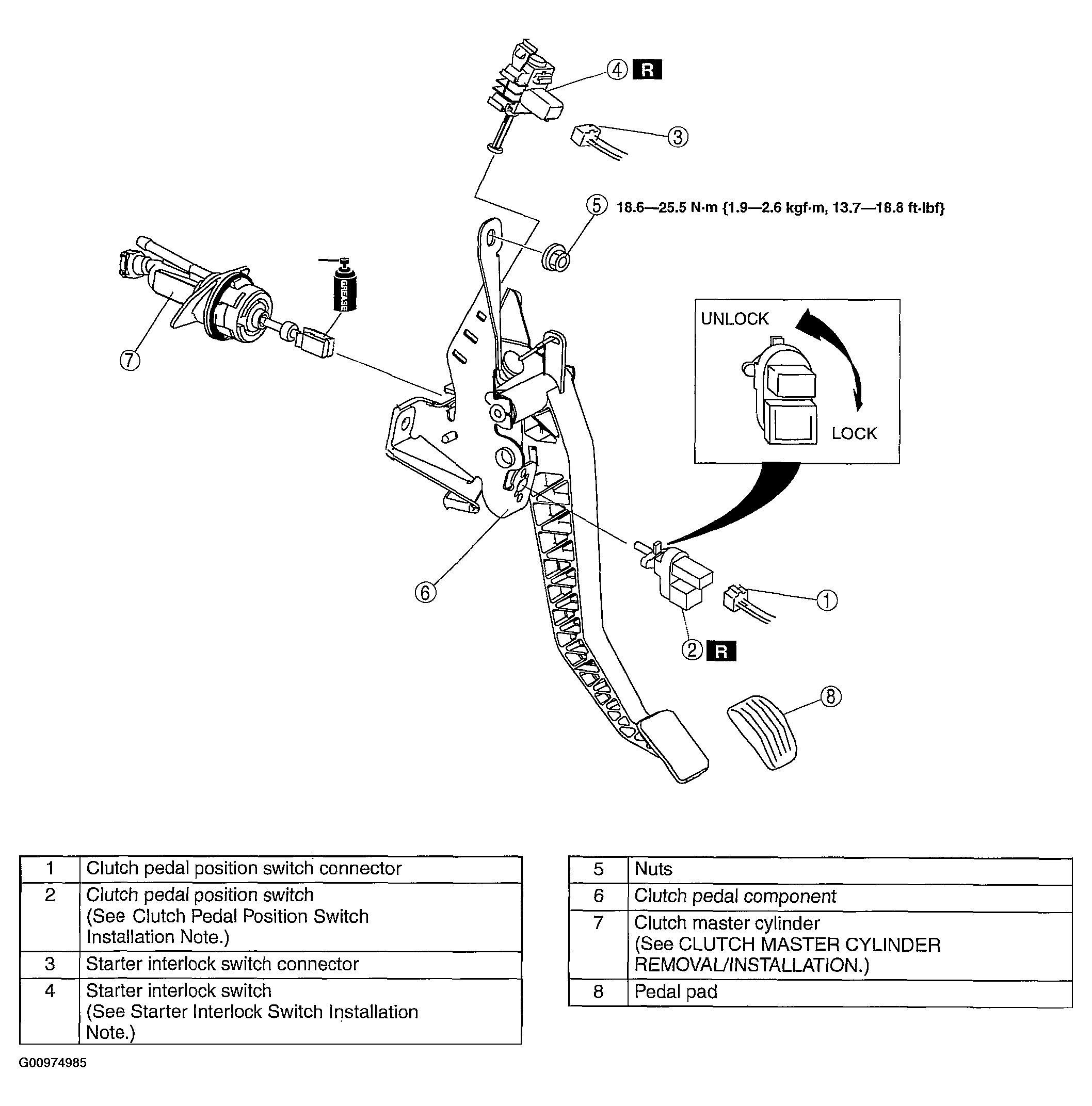

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, inspect the clutch pedal. (See CLUTCH PEDAL INSPECTION .)
