Clutch Pedal Position Switch Installation Note
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Insert the new clutch pedal position switch into the pedal bracket hole until the switch stops.

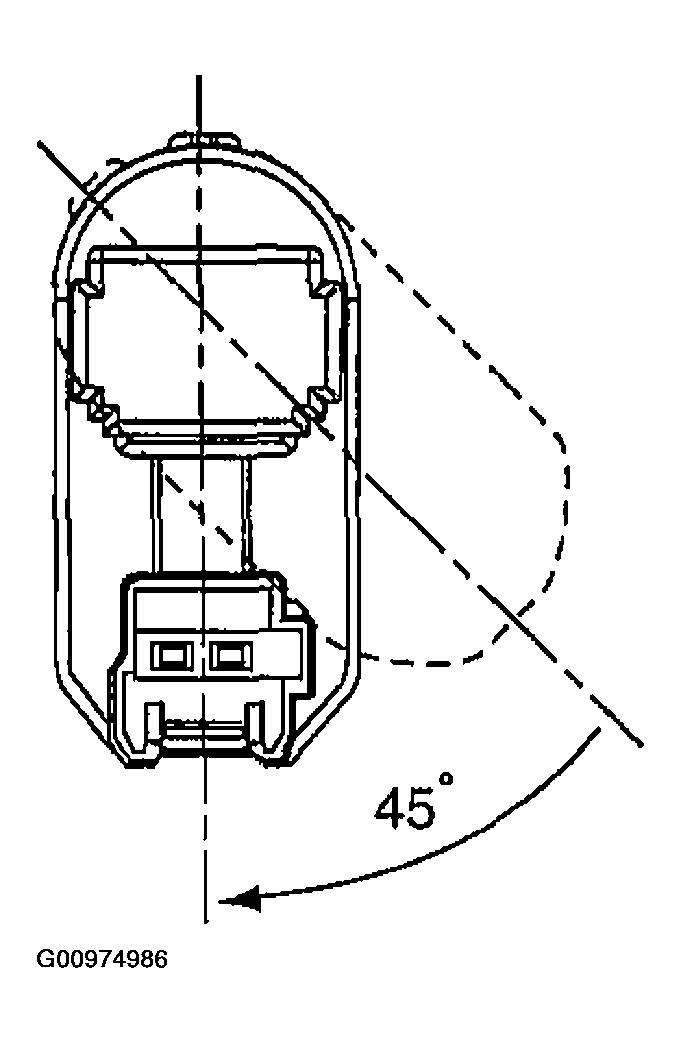

- Rotate the clutch pedal position switch 45°
clockwise.
- Verify that the clutch pedal position switch is locked securely.
Courtesy of MAZDA MOTORS CORP.
