Clutch Master Cylinder Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION .)
Separate the steering shaft.
Remove in the order indicated in the table.
Plug the clutch pipe after removing it to avoid leakage.
Install in the reverse order of removal.
After installation, inspect the clutch pedal. (See CLUTCH PEDAL INSPECTION .)

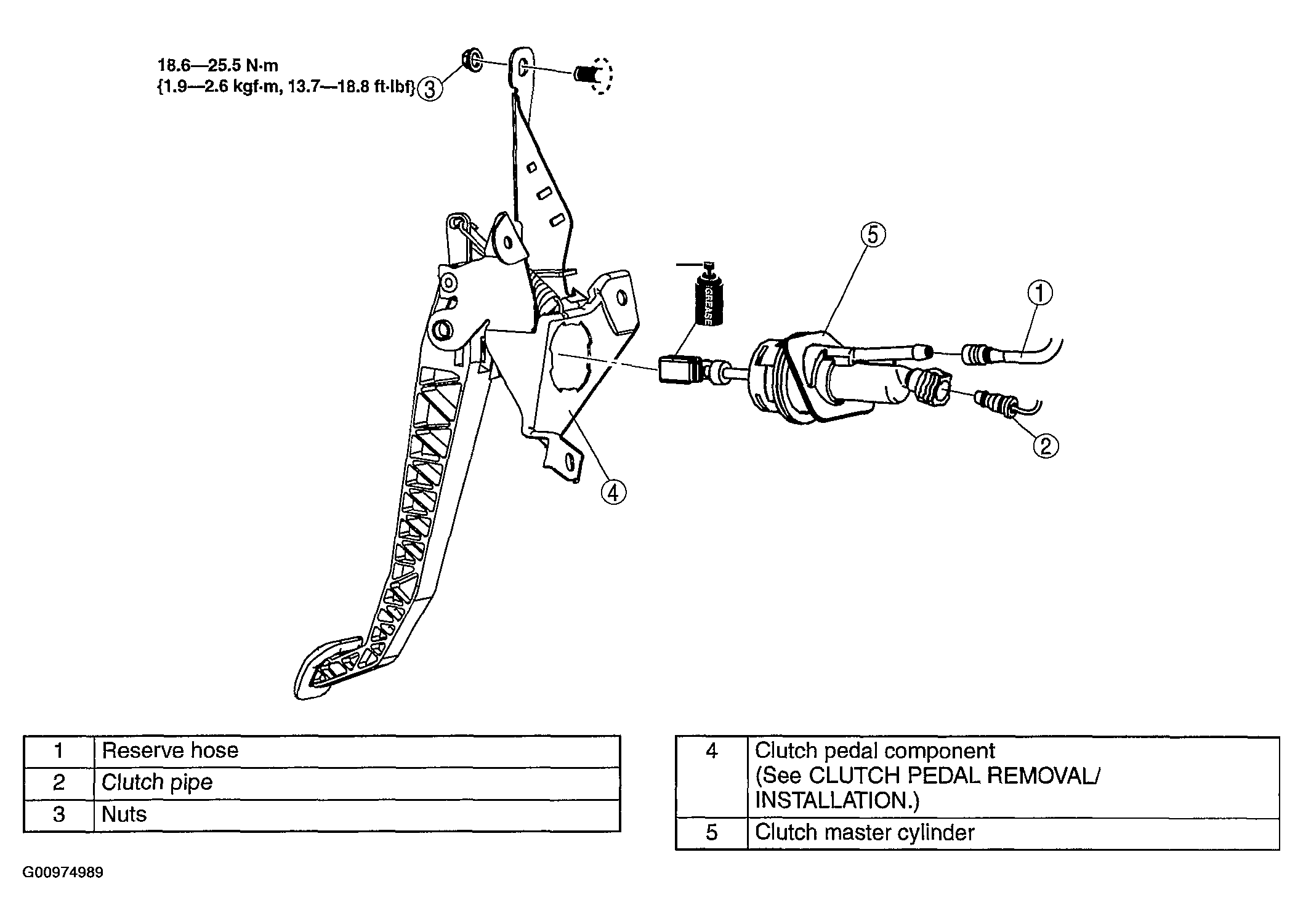

Fig 1: Clutch Master Cylinder With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
