Symptom Troubleshooting Item Table

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Use the chart below to verify the symptoms of the trouble in order to diagnose the appropriate area.

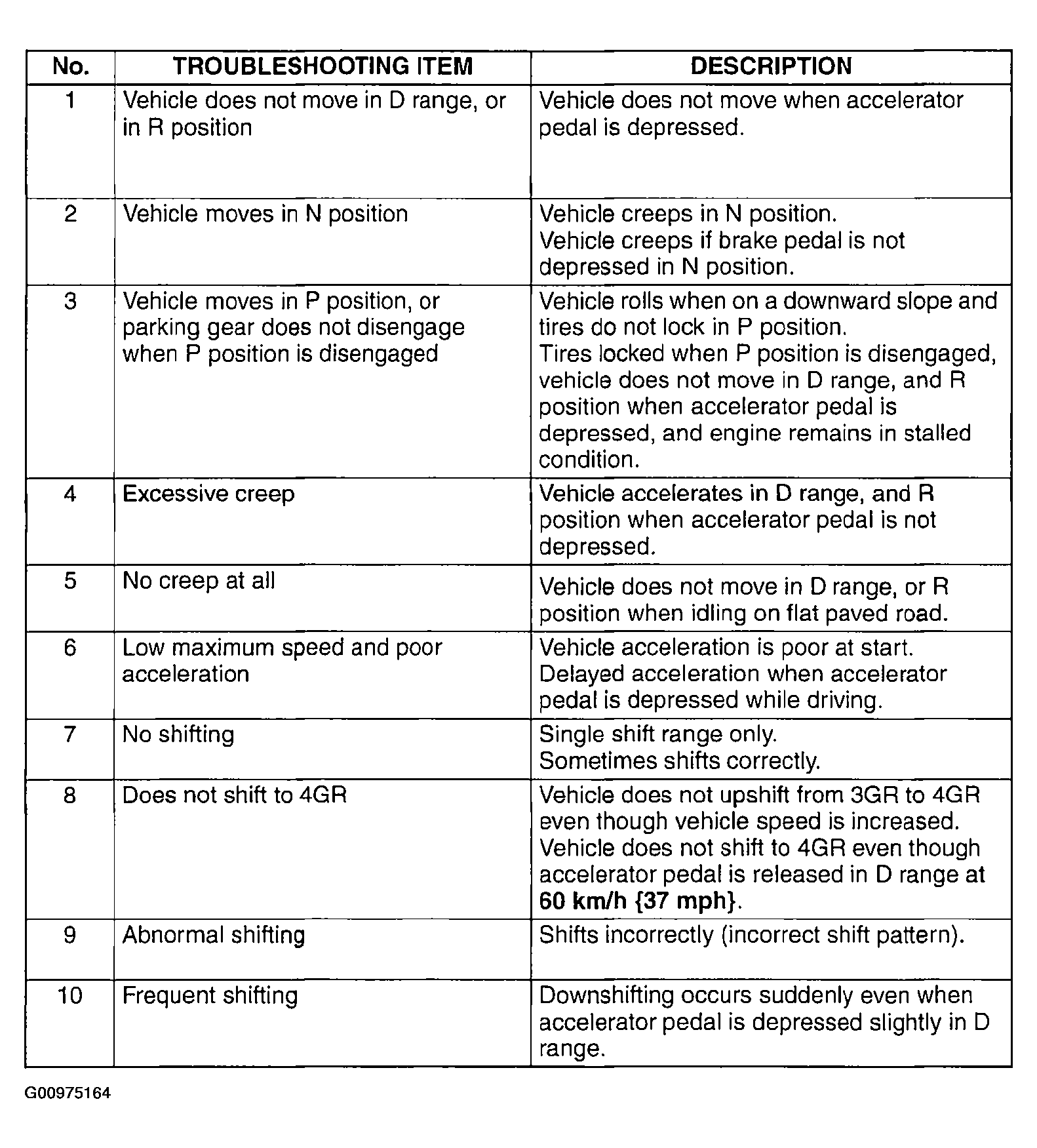

Fig 1: Symptom Troubleshooting Item Table (1 To 10)
Courtesy of MAZDA MOTORS CORP.

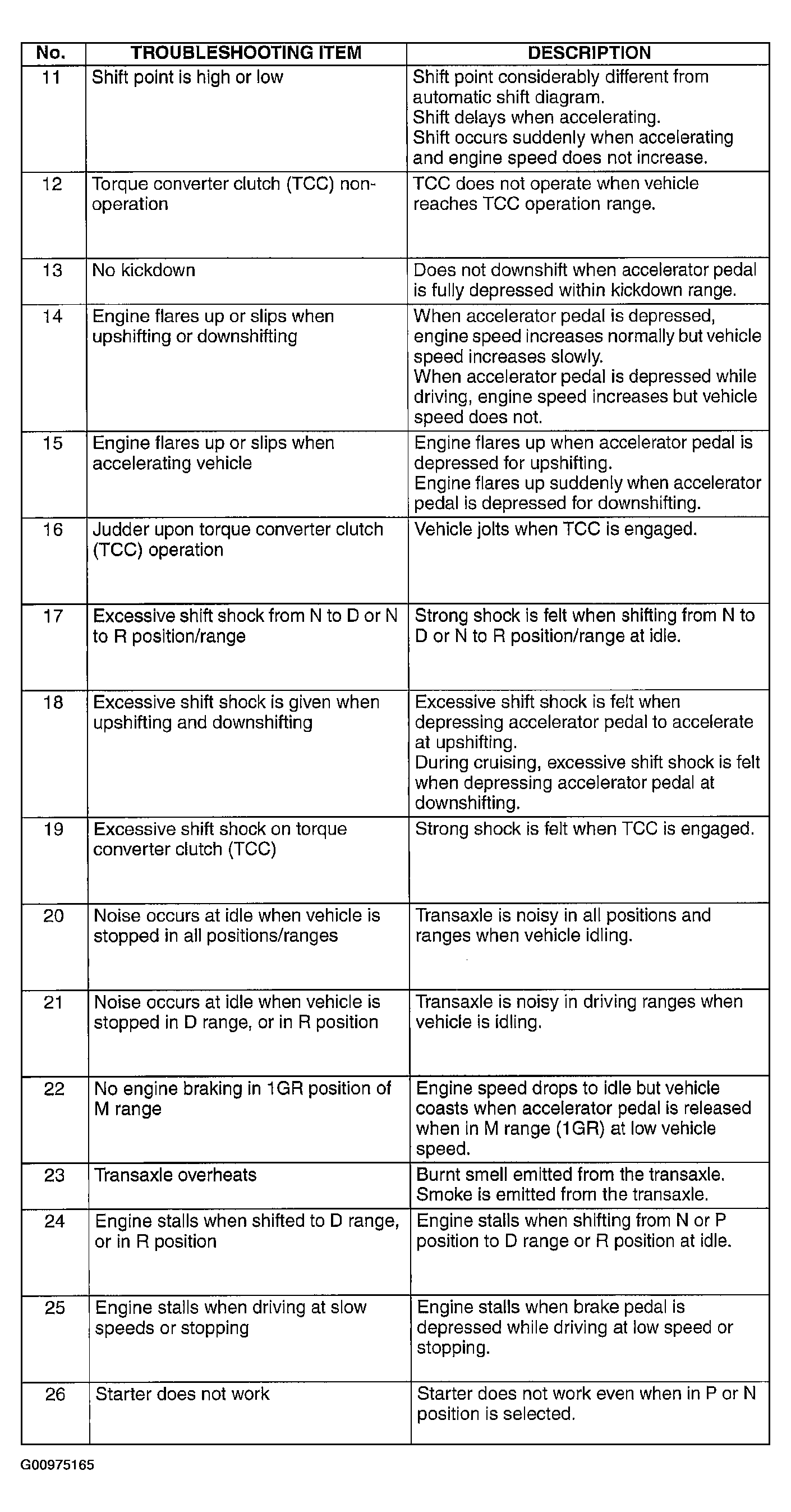

Fig 2: Symptom Troubleshooting Item Table (11 To 26)

Courtesy of MAZDA MOTORS CORP.

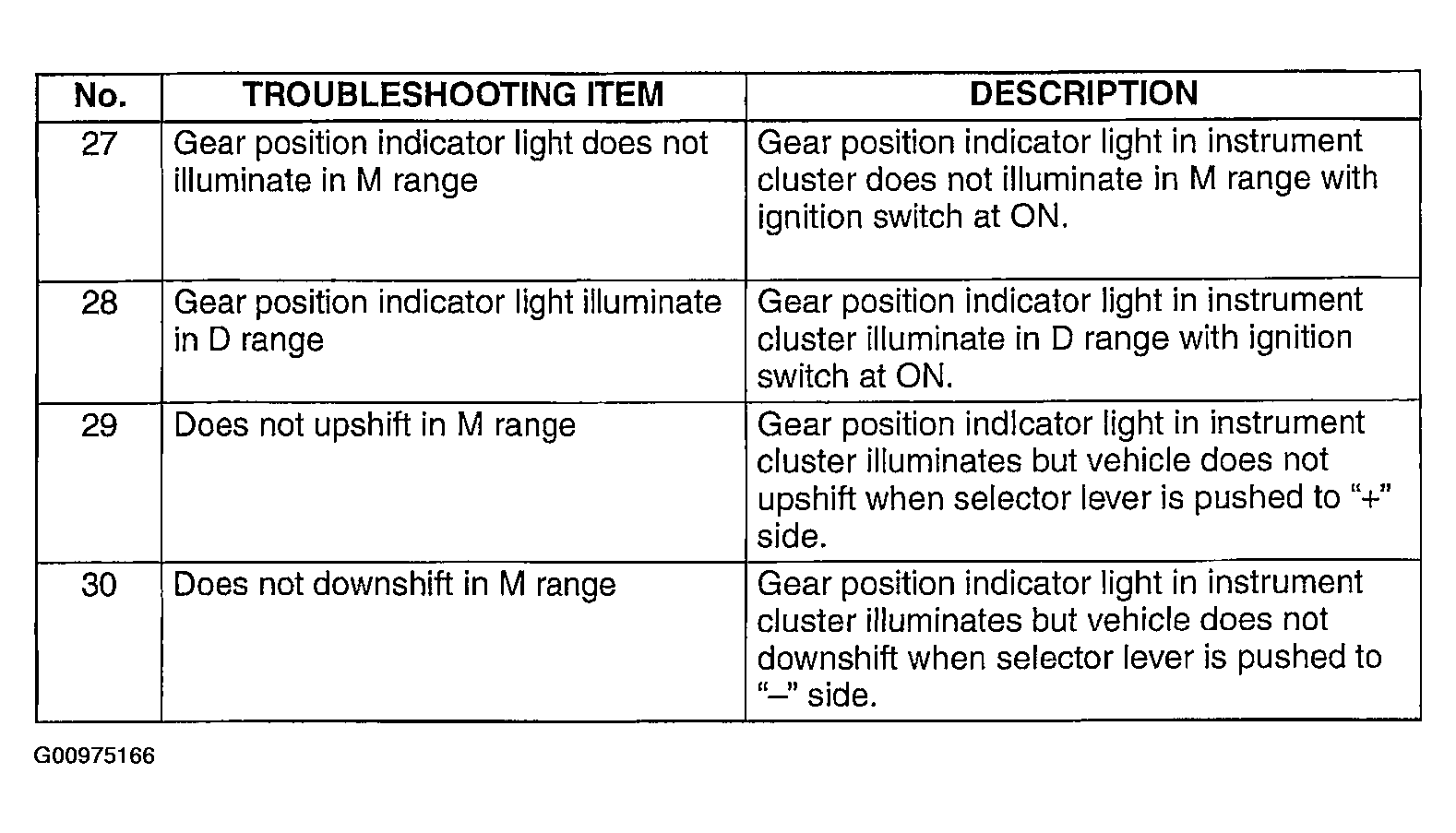

Fig 3: Symptom Troubleshooting Item Table (27 To 30)

Courtesy of MAZDA MOTORS CORP.
