Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

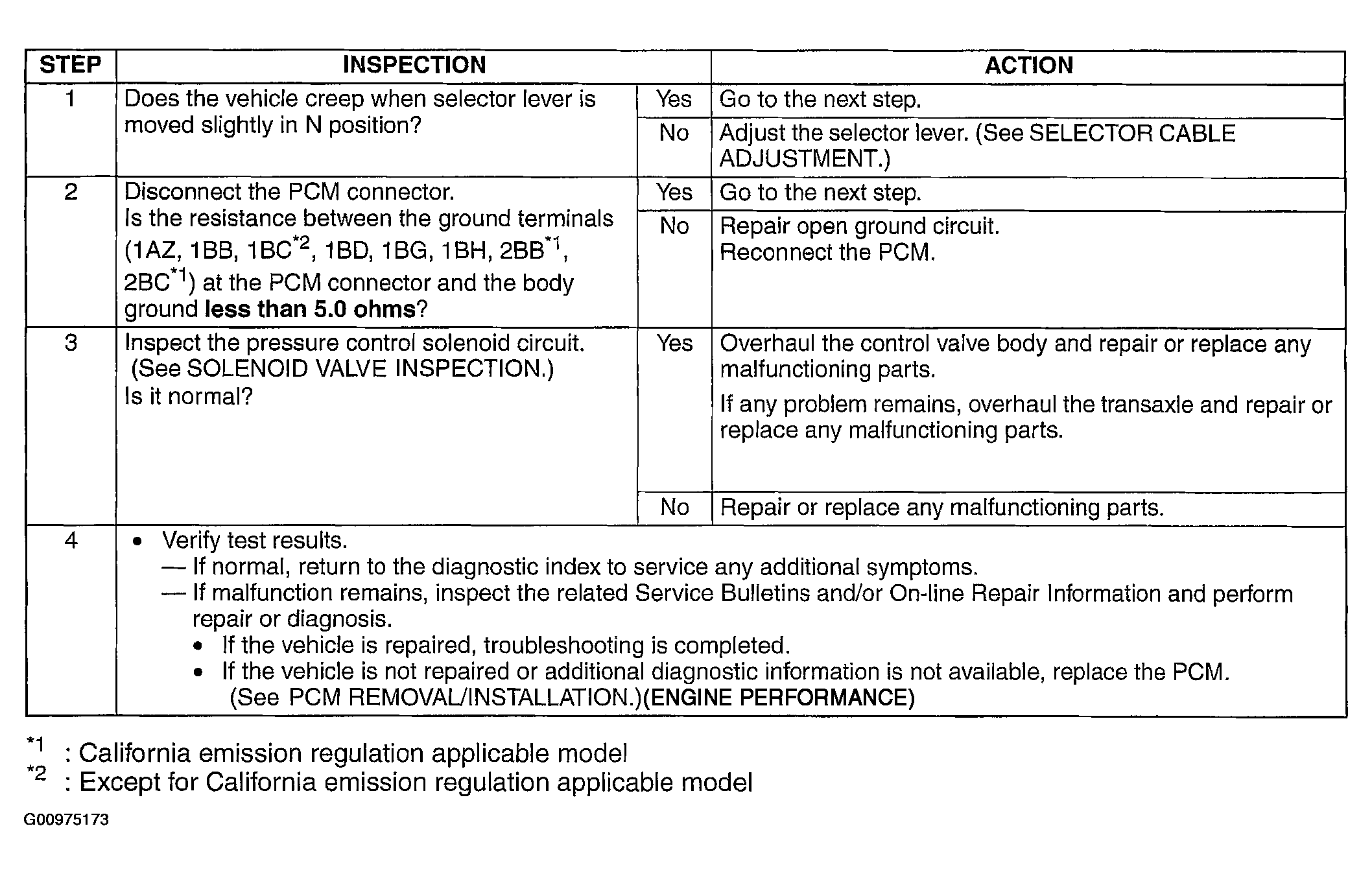

Fig 1: Diagnostic Procedure - Vehicle Moves In N Position
G00975173Courtesy of MAZDA MOTORS CORP.
