Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

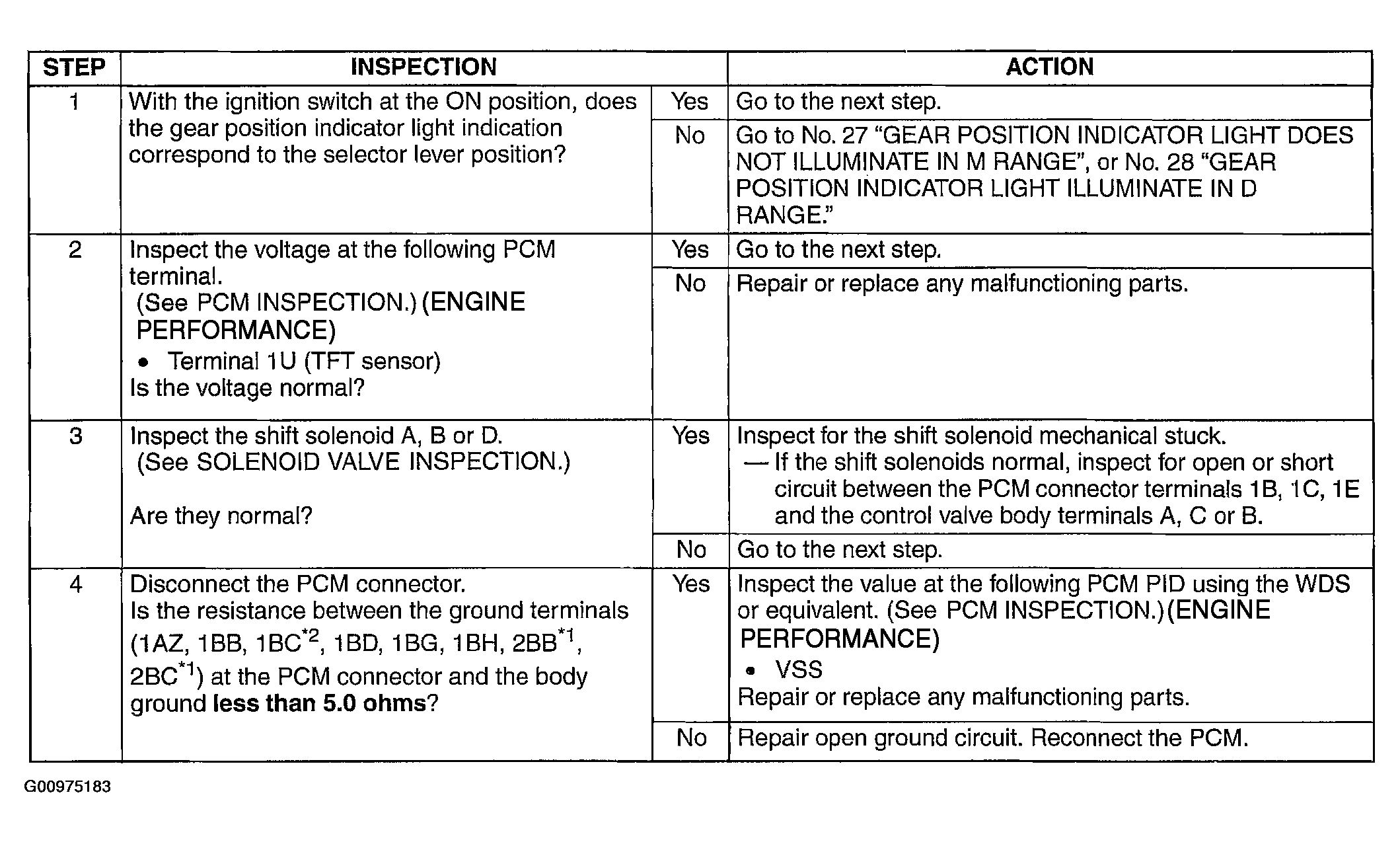

Fig 1: Diagnostic Procedure - Does Not Shift To 4GR (Steps 1-4)
G00975183Courtesy of MAZDA MOTORS CORP.

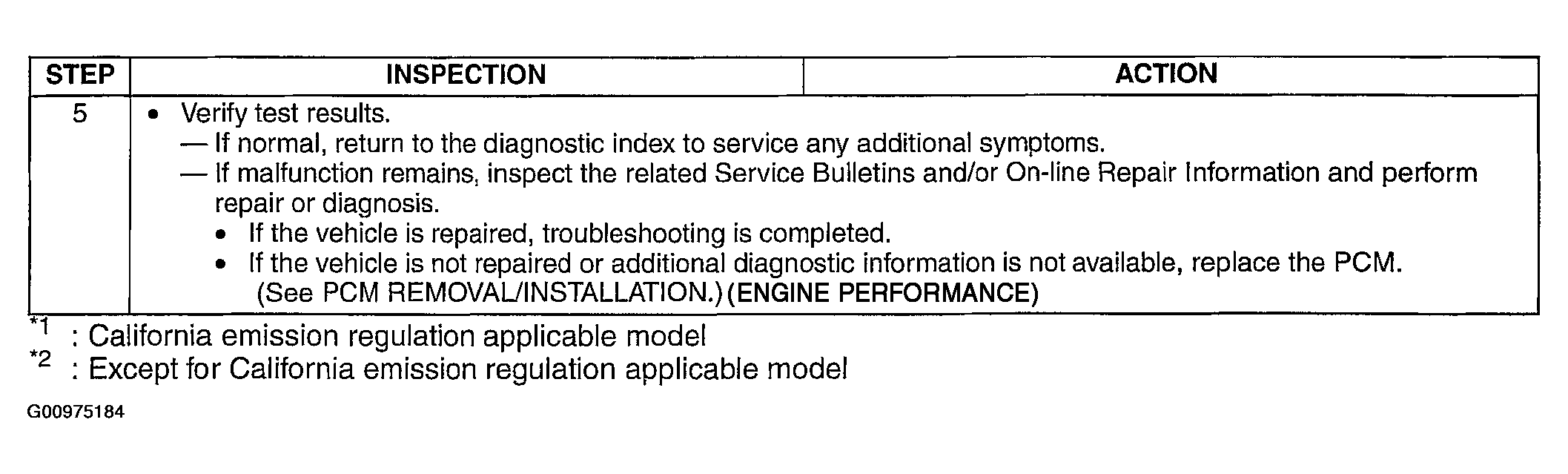

Fig 2: Diagnostic Procedure - Does Not Shift To 4GR (Step 5)
G00975184Courtesy of MAZDA MOTORS CORP.
