Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

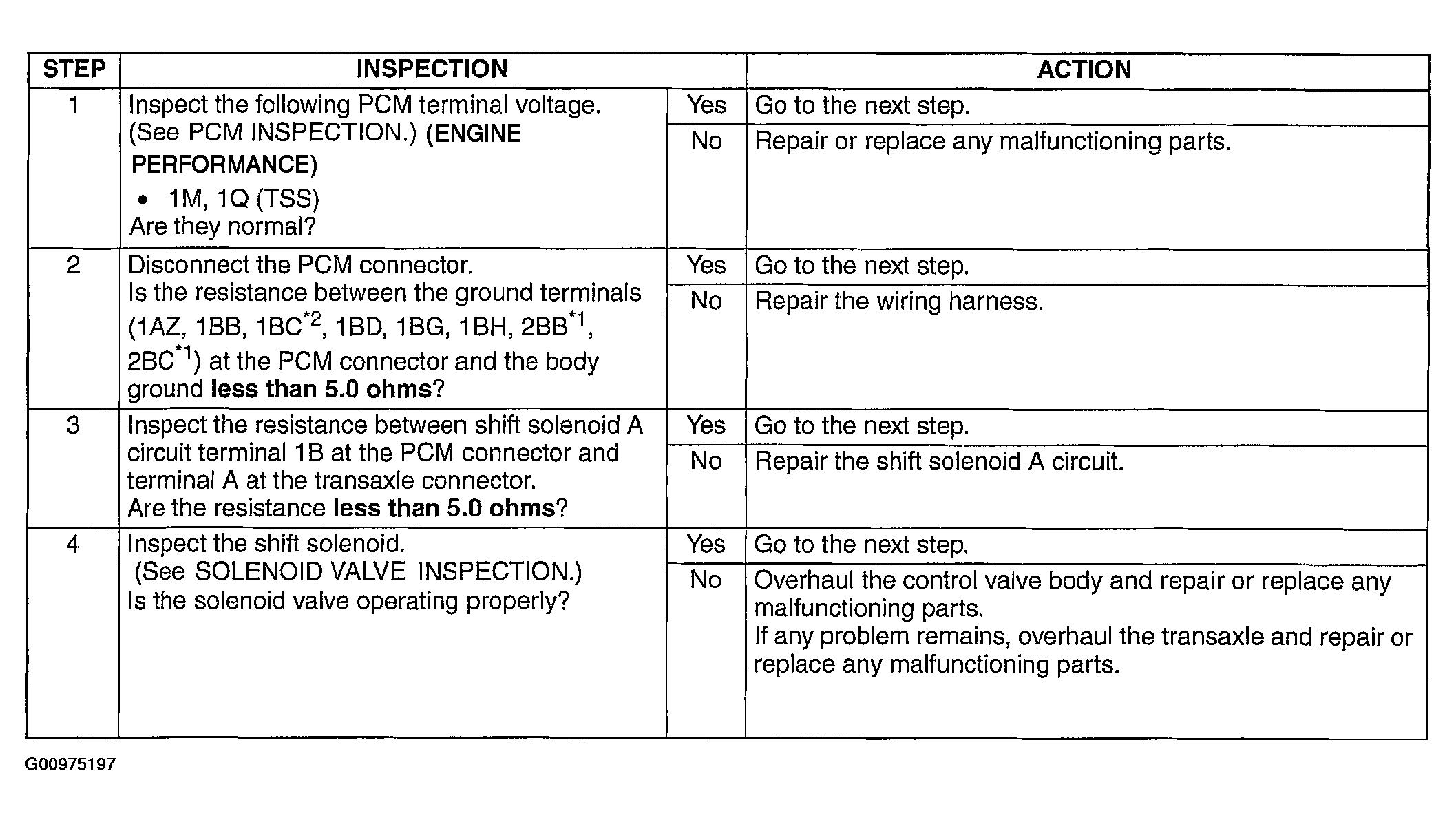

Fig 1: Diagnostic procedure - Judder Upon Torque Converter Clutch (TCC) Operation (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

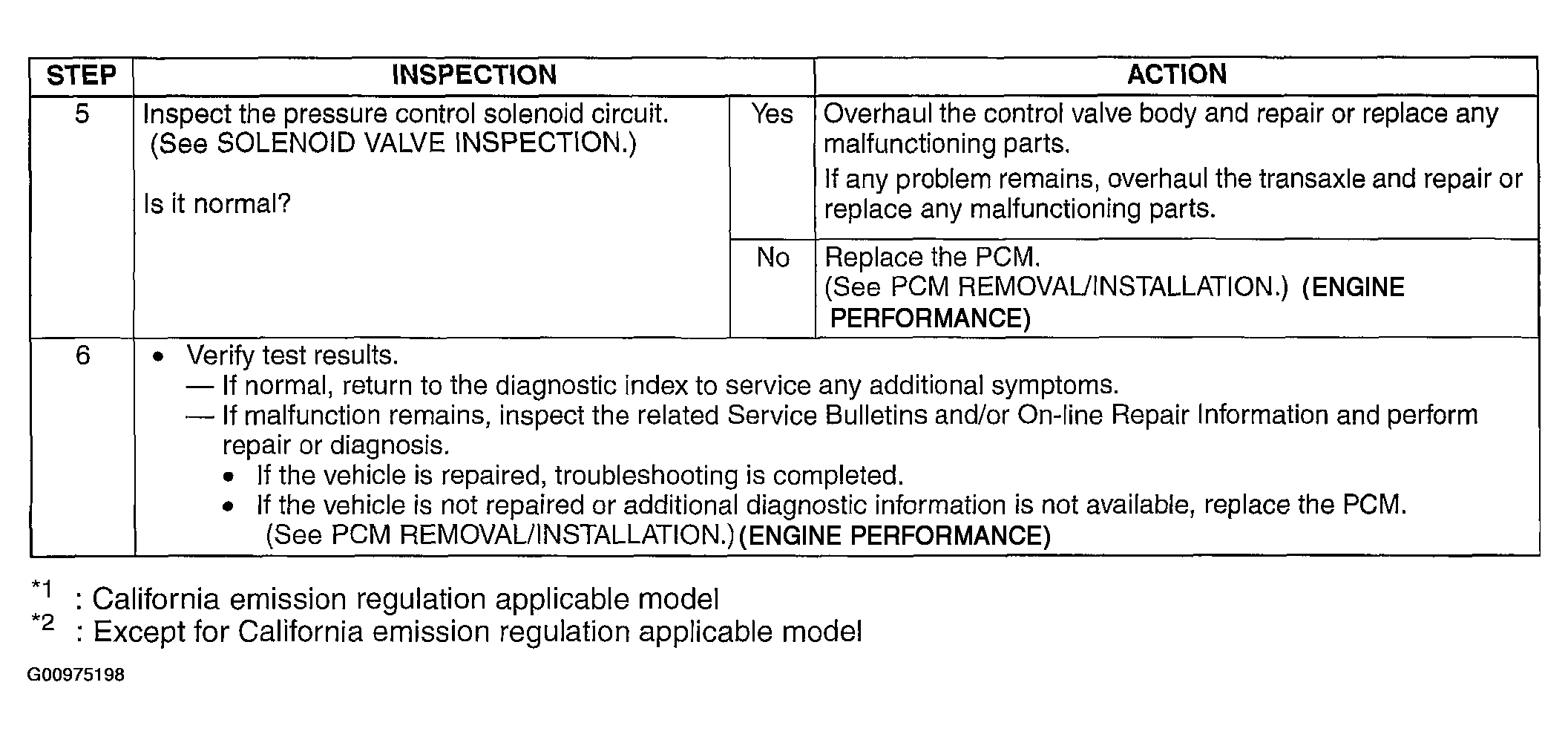

Fig 2: Diagnostic procedure - Judder Upon Torque Converter Clutch (TCC) Operation (Steps 5-6)

Courtesy of MAZDA MOTORS CORP.
