Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

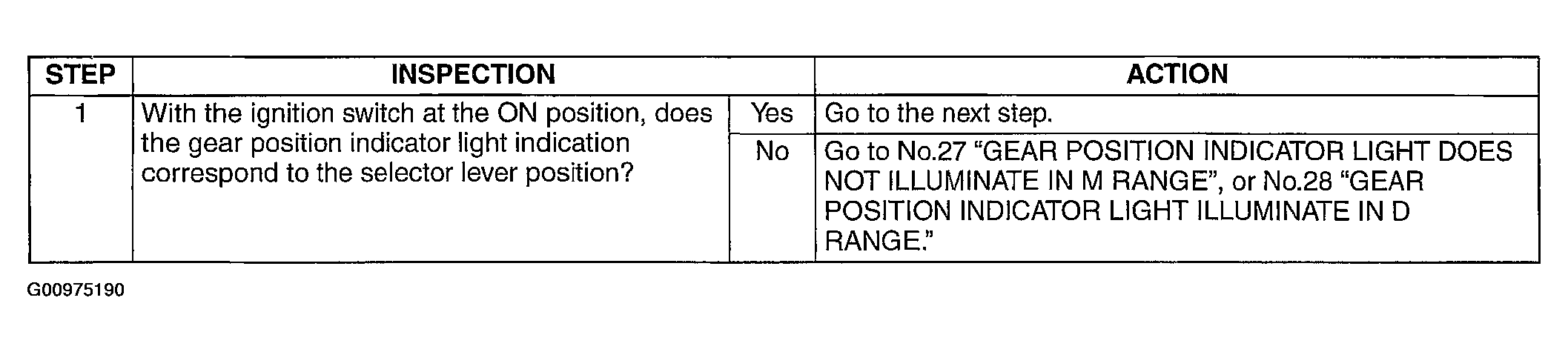

Fig 1: Diagnostic Procedure - Torque Converter Clutch (TCC) Non-Operation (Step 1)

Courtesy of MAZDA MOTORS CORP.

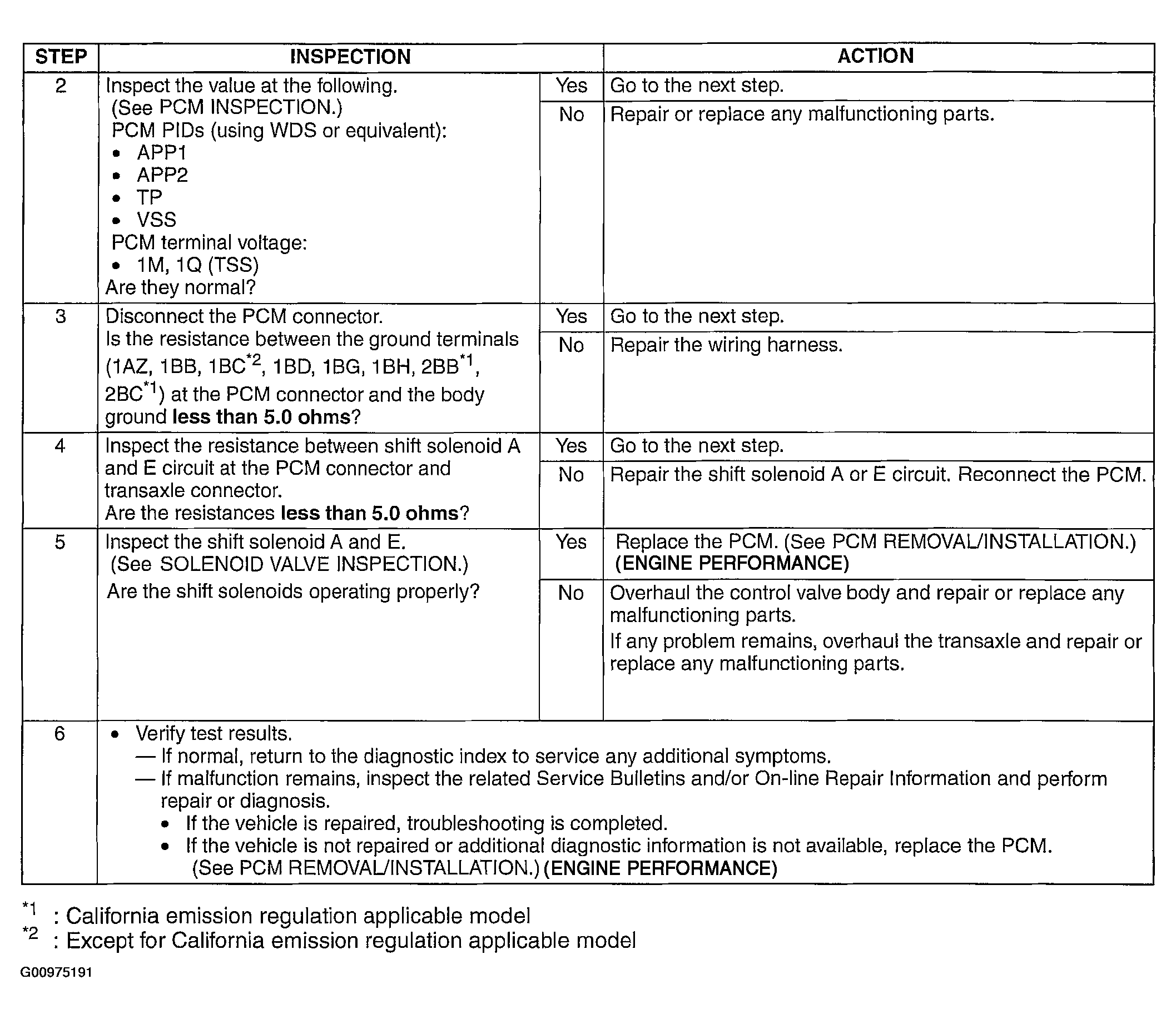

Fig 2: Diagnostic Procedure - Torque Converter Clutch (TCC) Non-Operation (Steps 2-6)

Courtesy of MAZDA MOTORS CORP.
