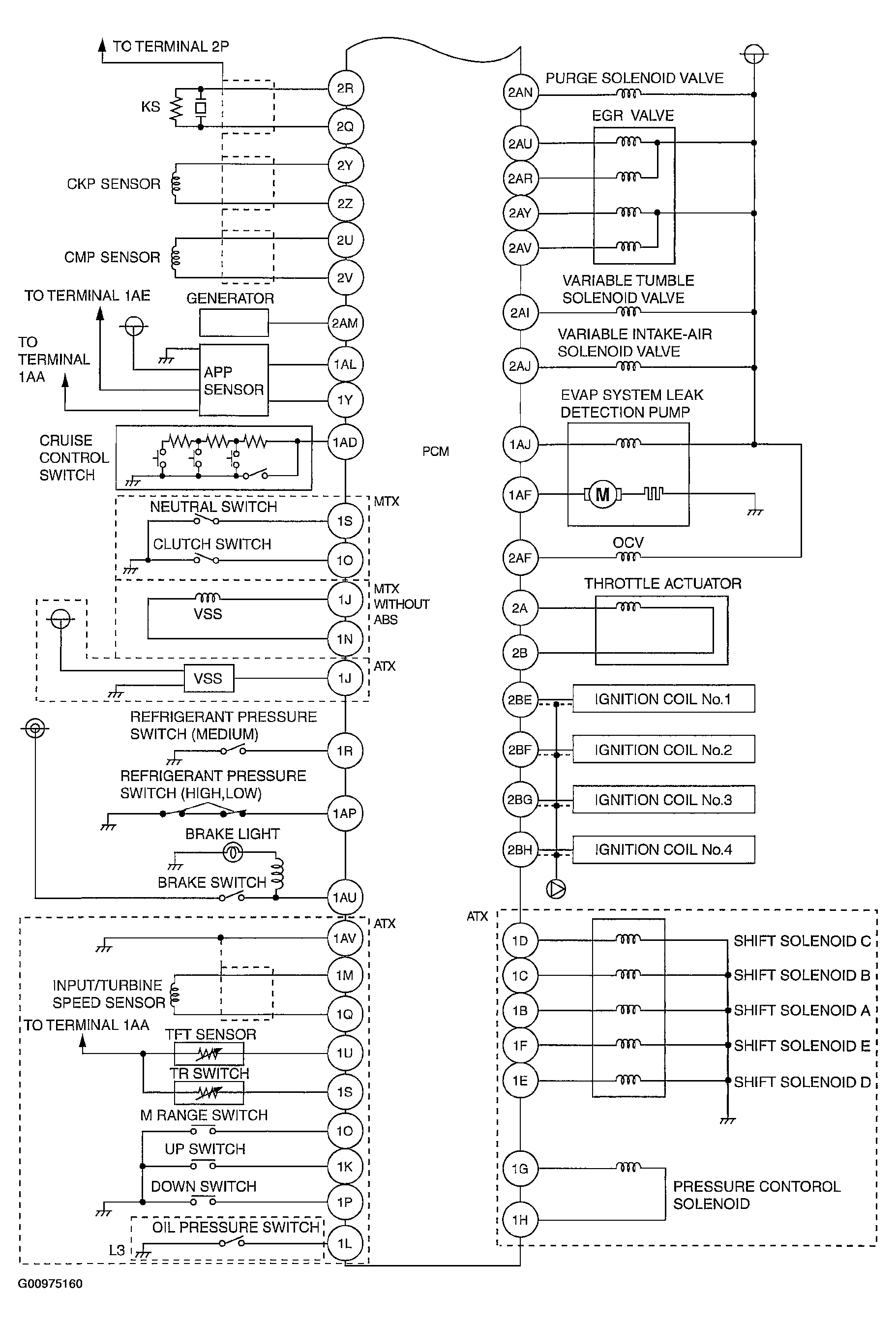

Fig 1: Automatic Transaxle Control System Wiring Diagram (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

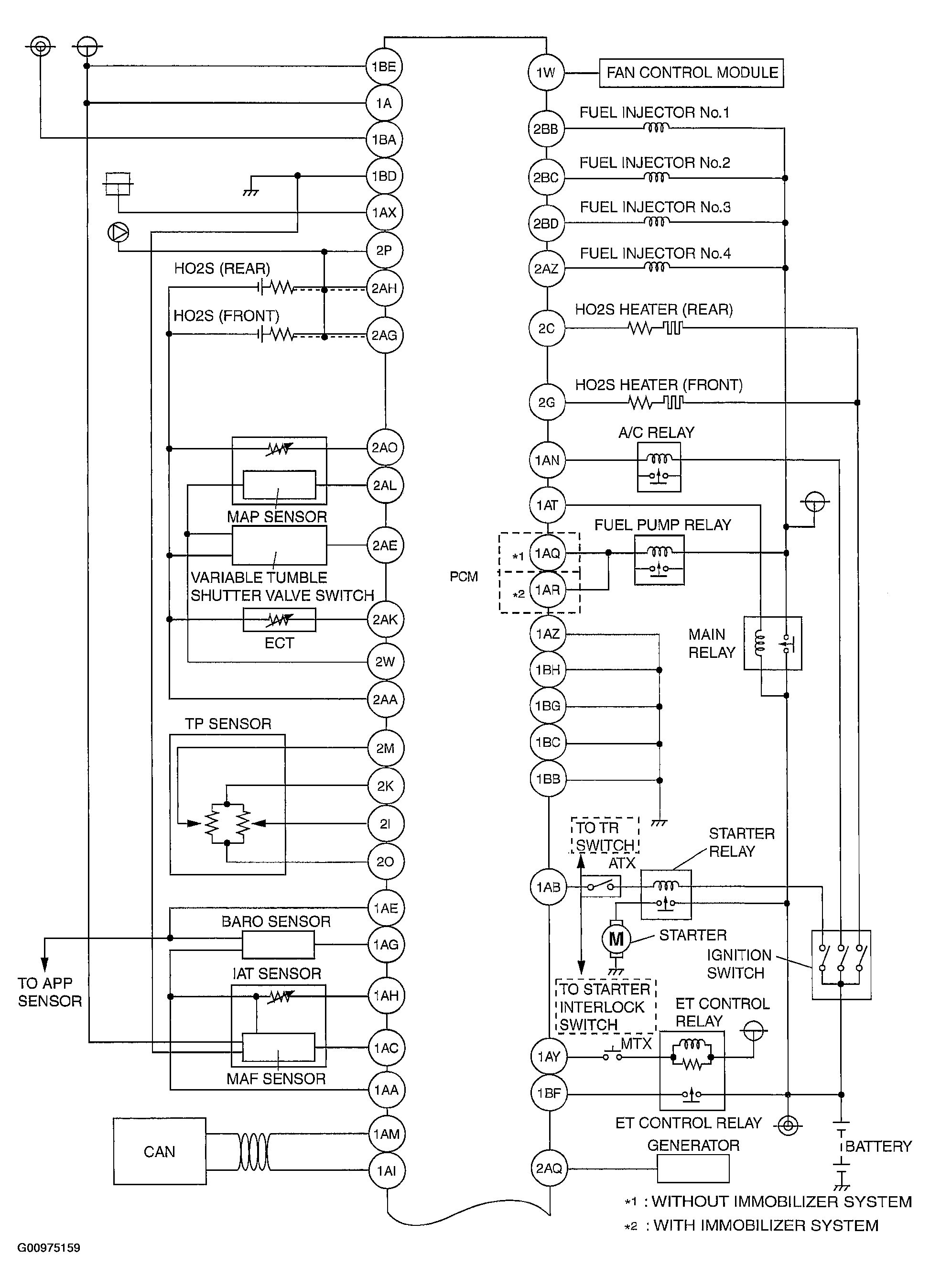

Fig 2: Automatic Transaxle Control System Wiring Diagram (4 Of 4)

Courtesy of MAZDA MOTORS CORP.
