California Emission Regulation Applicable Model

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

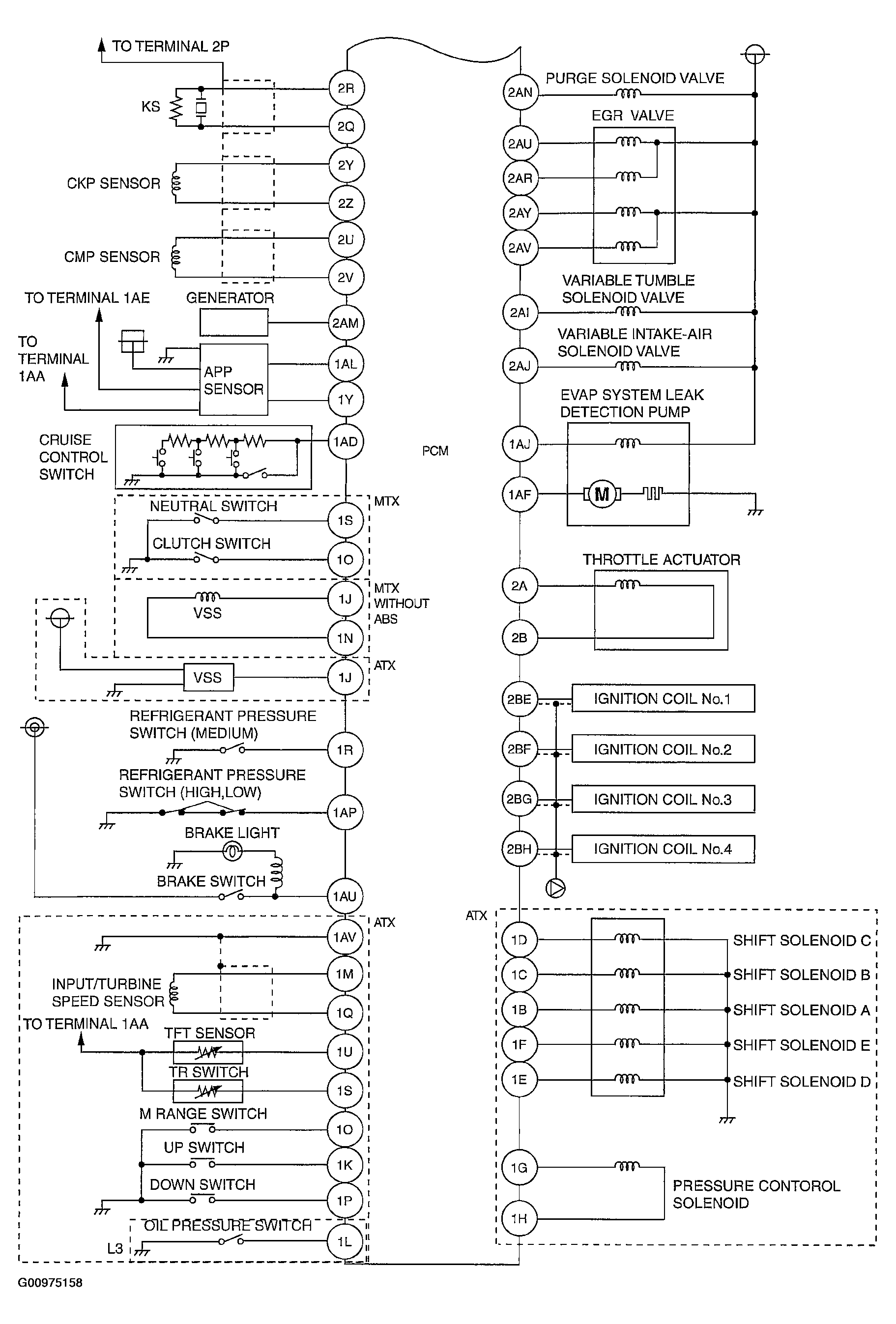

Fig 1: Automatic Transaxle Control System Wiring Diagram (1 Of 4)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Automatic Transaxle Control System Wiring Diagram (2 Of 4)

Courtesy of MAZDA MOTORS CORP.
