Trunk Lid Adjustment

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Measure the gap and height difference between the trunk lid and the body.
Loosen the trunk lid hinge installation bolts or nuts and adjust the trunk lid.
- If necessary, loosen the trunk lid lock striker installation bolts and adjust the trunk lid. (See TRUNK LID LOCK STRIKER REMOVAL/INSTALLATION .)
  Standard clearance

  a: 4.0-8.0 mm {0.16-0.31 in}

  b: 2.5-4.5 mm {0.10-0.17 in}

  c: -0.5-1.5 mm {-0.019-0.059 in}

  d: 3.3-5.3 mm {0.13-0.20 in}
Tighten the bolts or nuts.

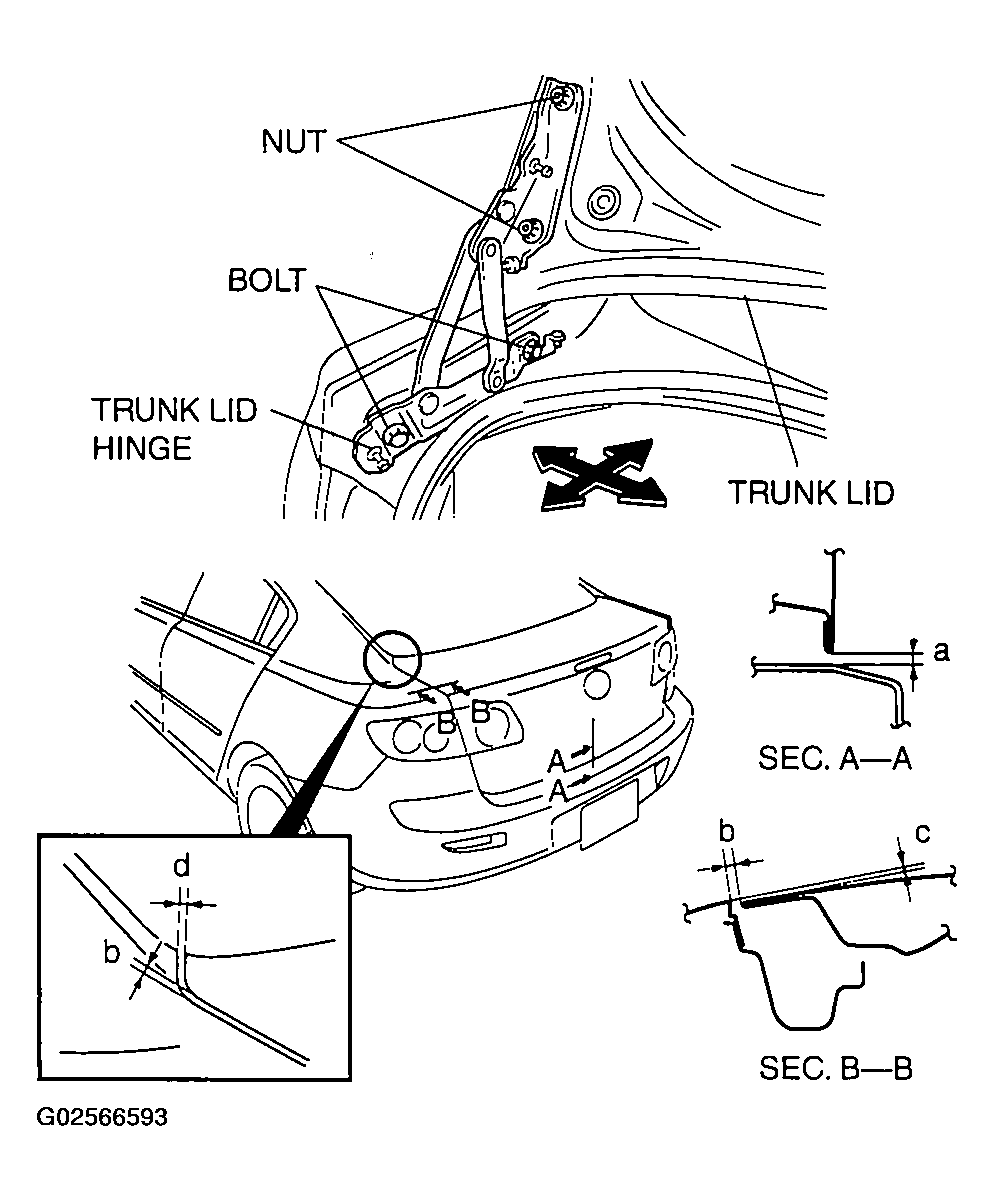

Fig 1: Adjusting Trunk Lid
Courtesy of MAZDA MOTORS CORP.
