Shroud Panel Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the following parts:
1. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION .)
2. Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
3. Front bumper reinforcement (See FRONT BUMPER REINFORCEMENT REMOVAL/INSTALLATION .)
4. Hood latch (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)

Remove in the order indicated in the table.

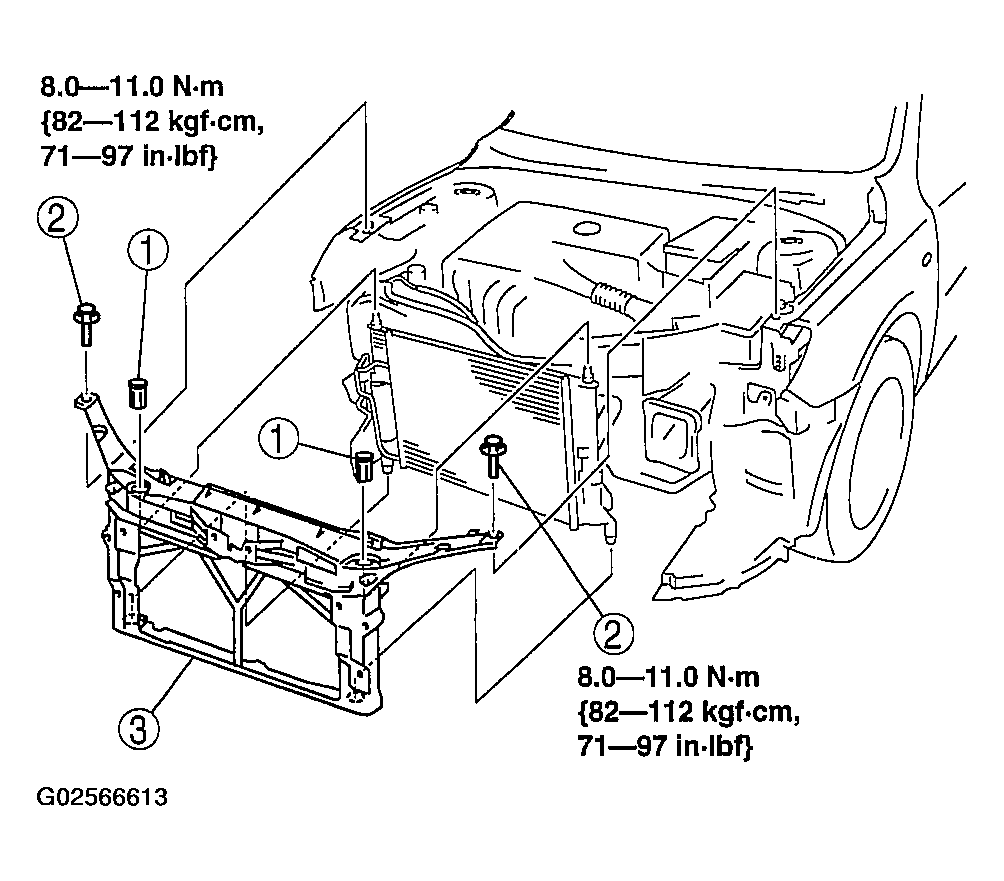

Fig 1: Shroud Panel With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

REMOVAL ORDER OF SHROUD PANEL

Removal Order	Part
1	Radiator mount cap
2	Bolt
3	Shroud panel

Install in the reverse order of removal.
