Reflector Removal Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the screws. (sports type)
Lift the reflector up in the direction of the arrow, then unhook it from the rear bumper.

Fig 1: Removing Reflector From Bumper (Standard Type)
Courtesy of MAZDA MOTORS CORP.

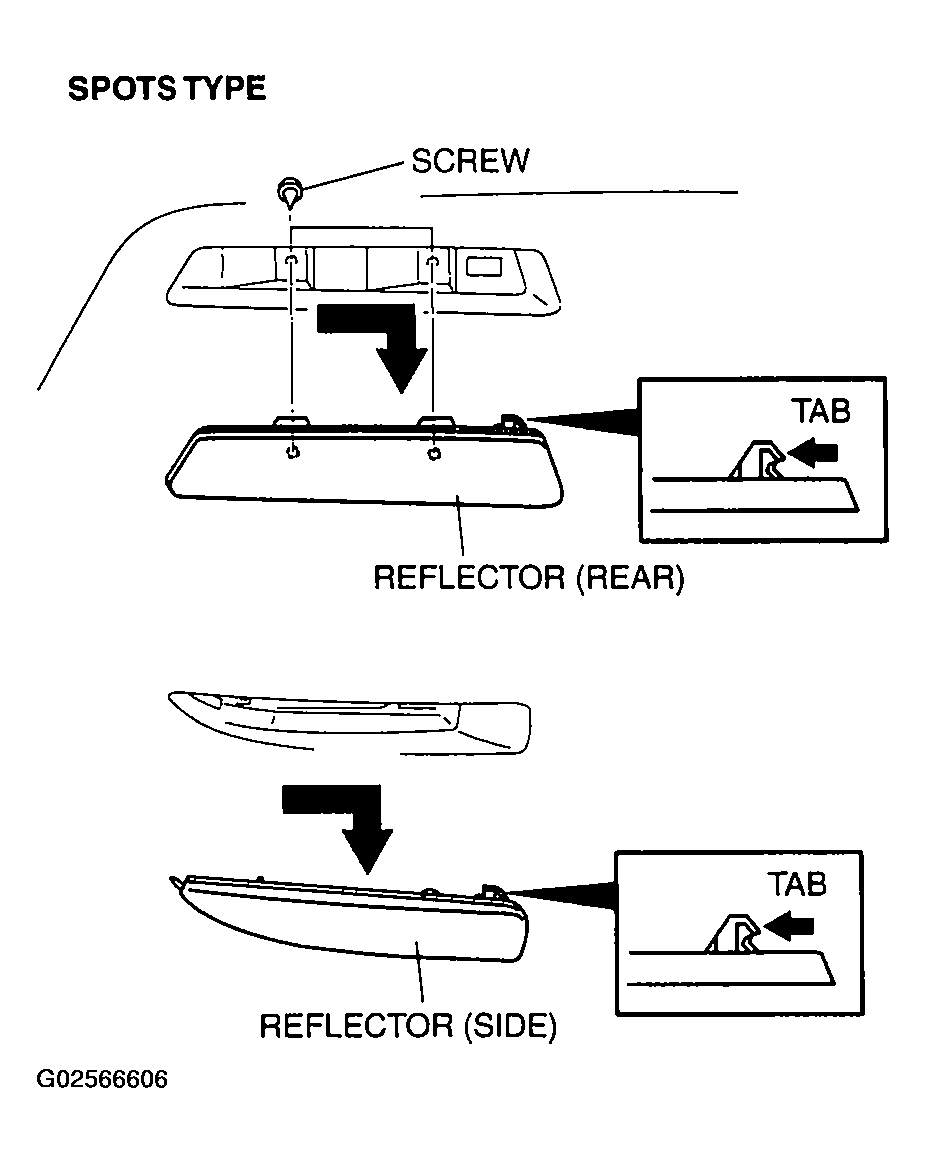

Fig 2: Removing Reflector From Bumper (Sports Type)
Courtesy of MAZDA MOTORS CORP.
