Rear Bumper Reinforcement Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    2. Trunk side trim (4 door) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    3. Trunk side trim (RH) (5 door) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    4. Service hole cover (LH) (5 door)
    5. Rear combination lights (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
    6. Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION .)
  2. Remove the fasteners, then remove the energy absorbing foam.
  3. Remove the nuts, then remove the rear bumper reinforcement.
  4. Install in the reverse order of removal.

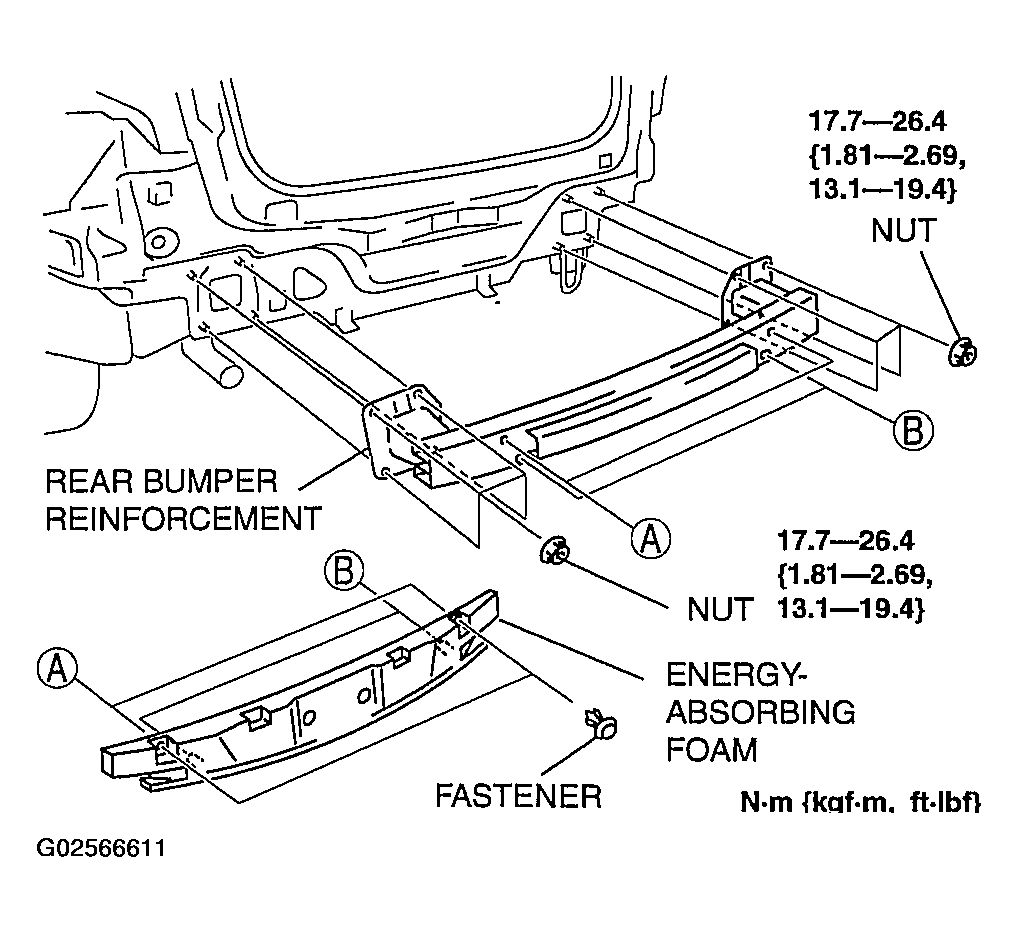

    Fig 1: Rear Bumper Reinforcement With Torque Specifications
    G02566611Courtesy of MAZDA MOTORS CORP.
