Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

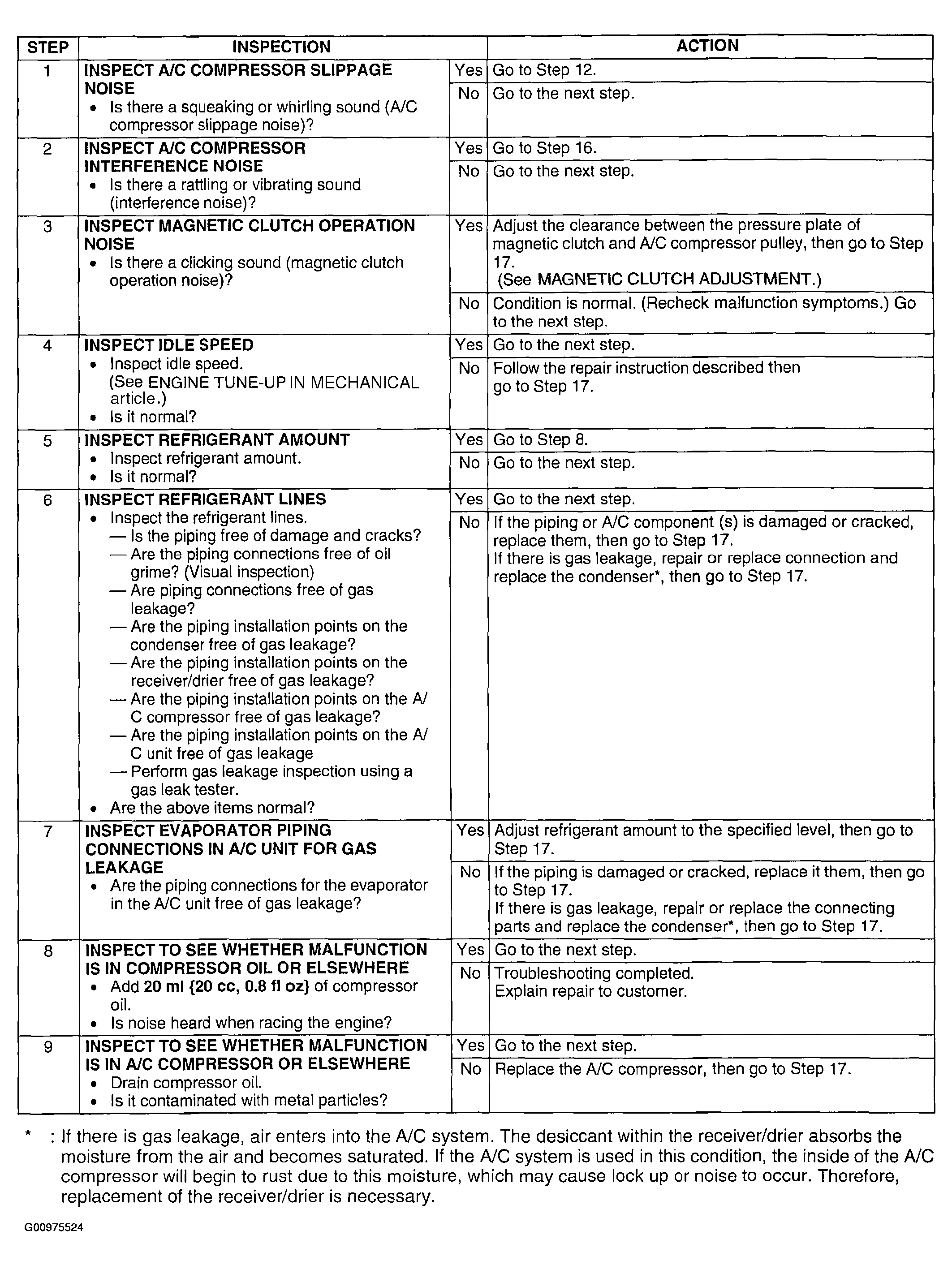

Fig 1: Symptom No. 8 Diagnostic Procedure Chart (Steps 1-9)
G00975524Courtesy of MAZDA MOTORS CORP.

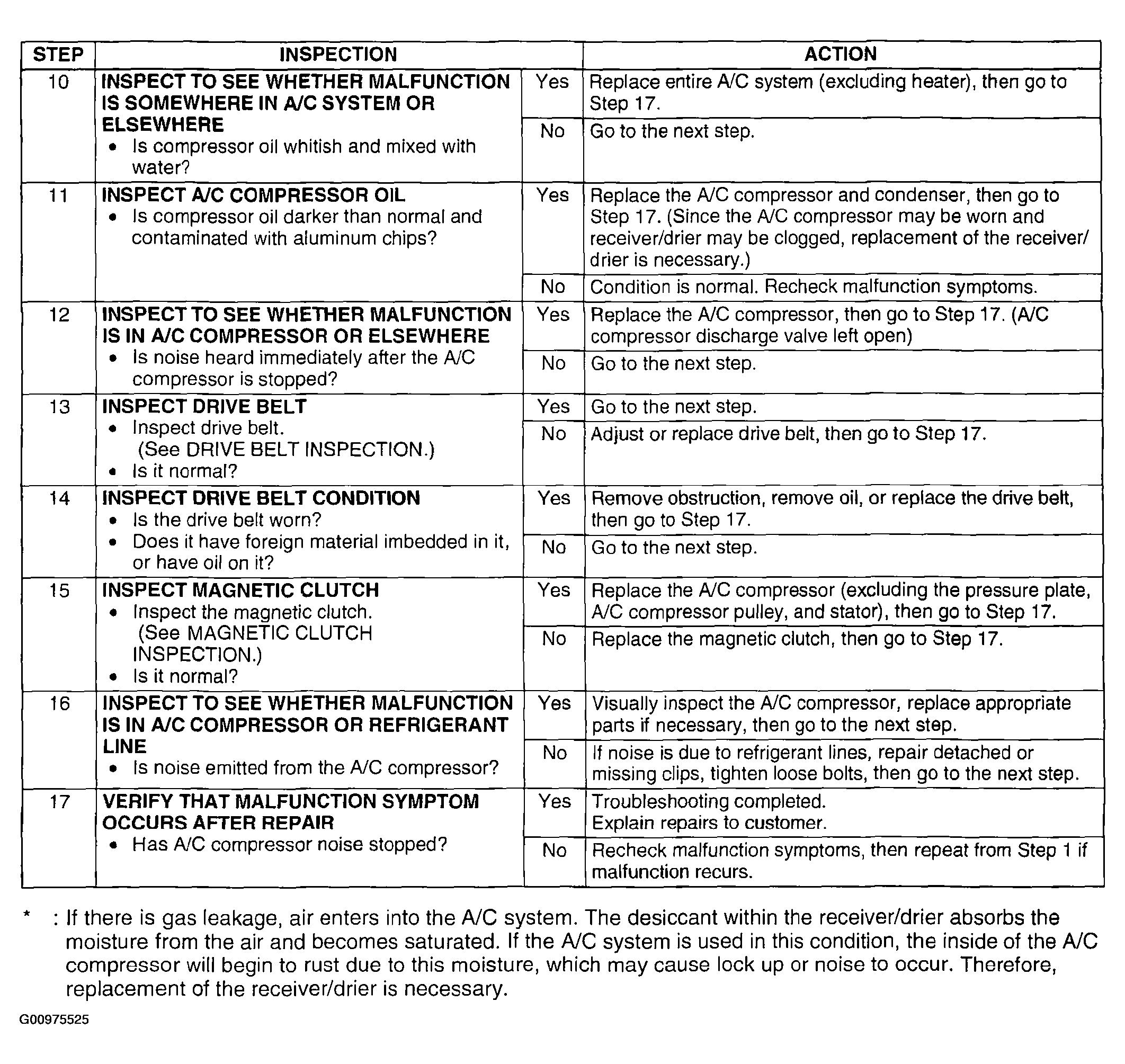

Fig 2: Symptom No. 8 Diagnostic Procedure Chart (Steps 10-17)
G00975525Courtesy of MAZDA MOTORS CORP.
