Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

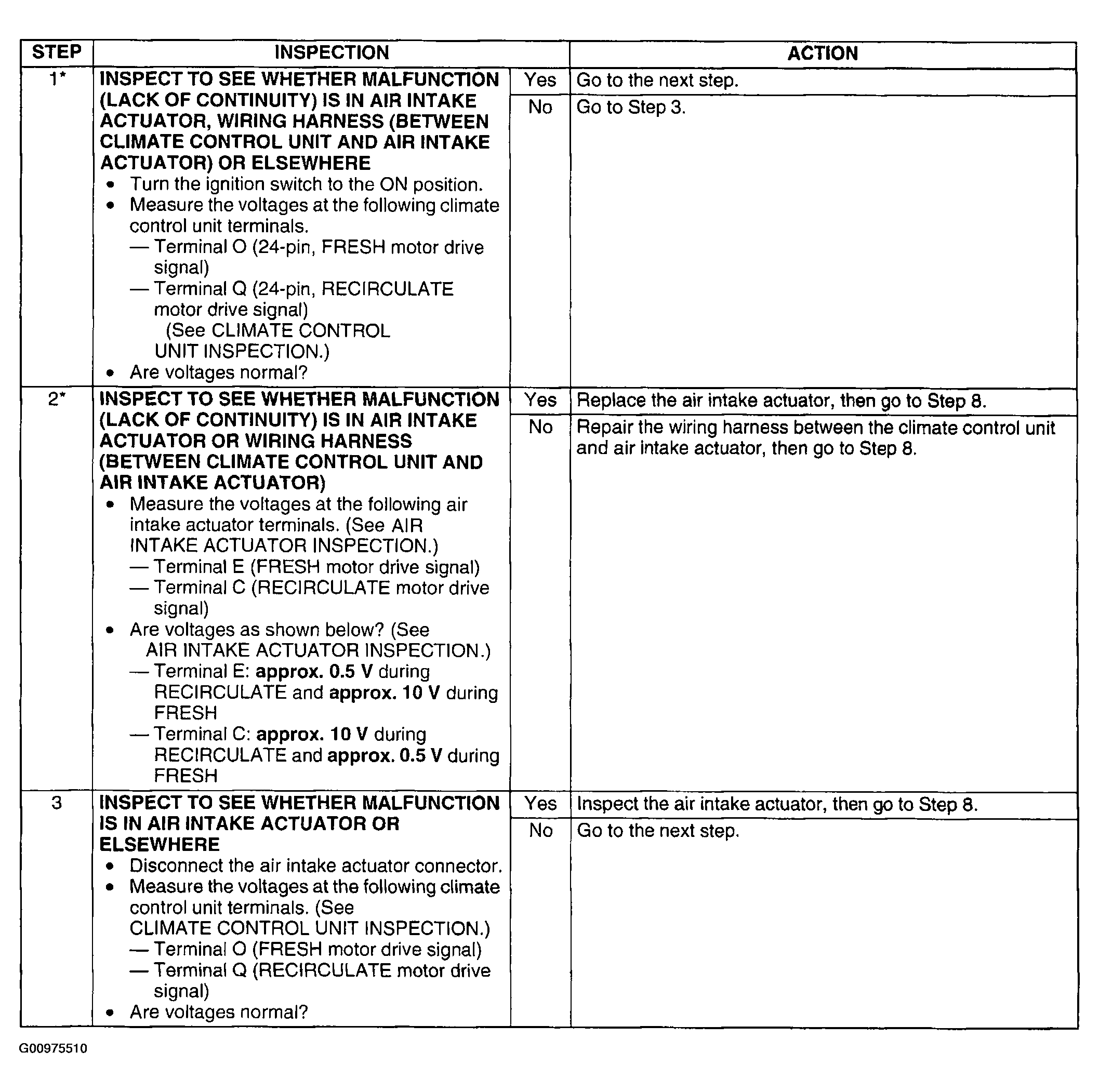

Fig 1: Symptom No. 3 Diagnostic Procedure Chart (Step 1-3)
G00975510Courtesy of MAZDA MOTORS CORP.

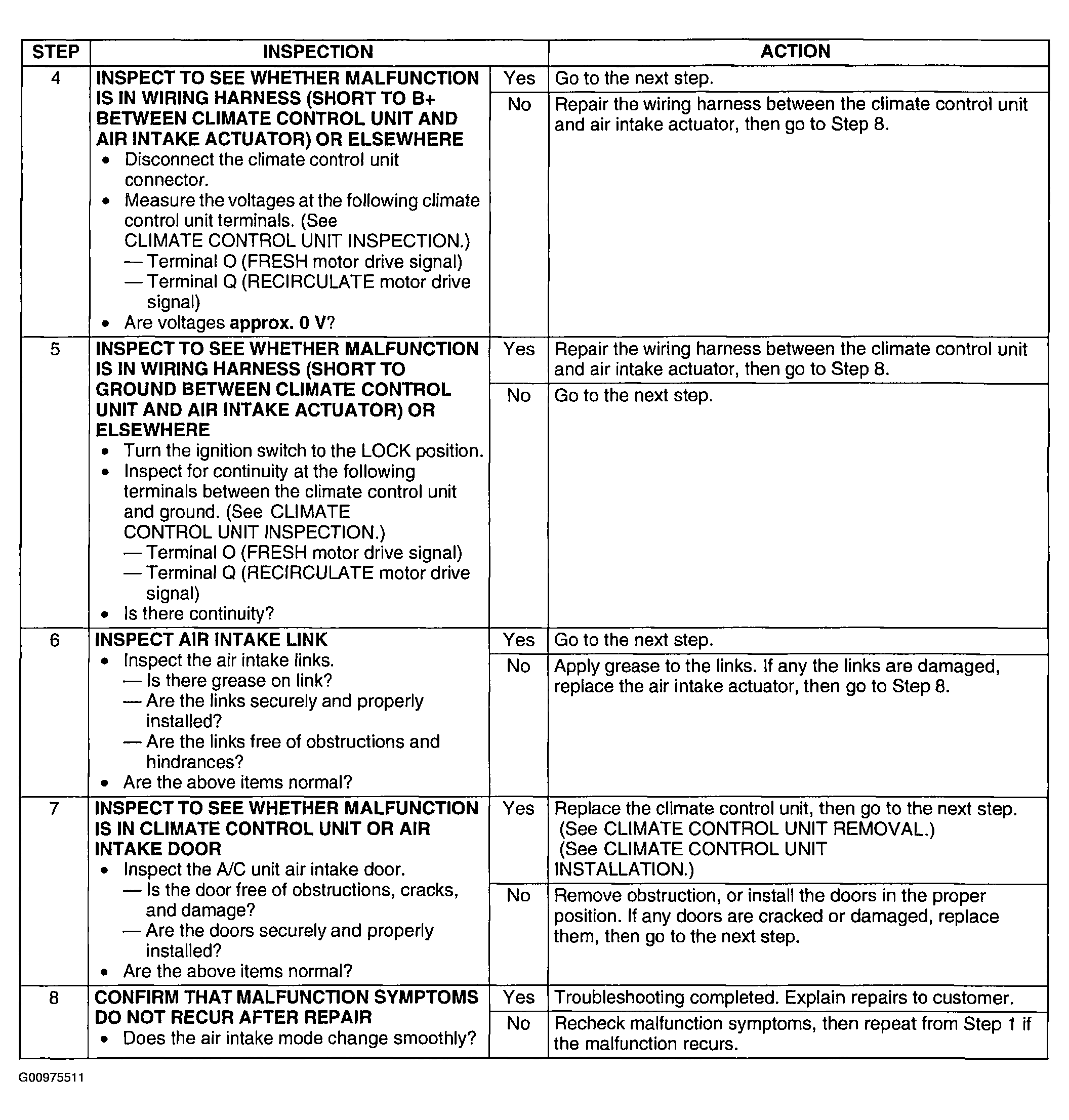

Fig 2: Symptom No. 3 Diagnostic Procedure Chart (Step 4-8)
G00975511Courtesy of MAZDA MOTORS CORP.
