Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper fascia. Refer to Fascia Replacement - Rear Bumper .
  2. Remove the rear energy absorber. Refer to Energy Absorber Replacement - Rear .
  3. Disconnect the wiring harness from the rear bumper impact bar.

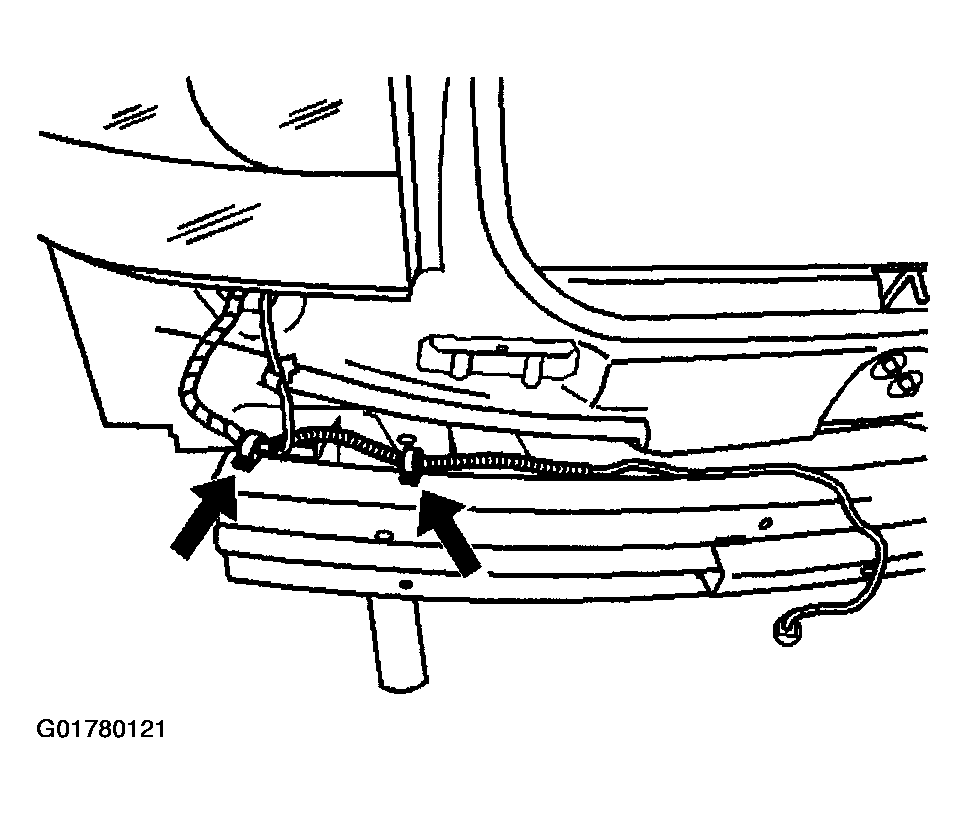

    Fig 1: Disconnecting Wiring Harness From Rear Bumper Impact Bar
    G01780121Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear impact bar nuts from the rear impact bar.
  5. Remove the rear impact bar from the vehicle.

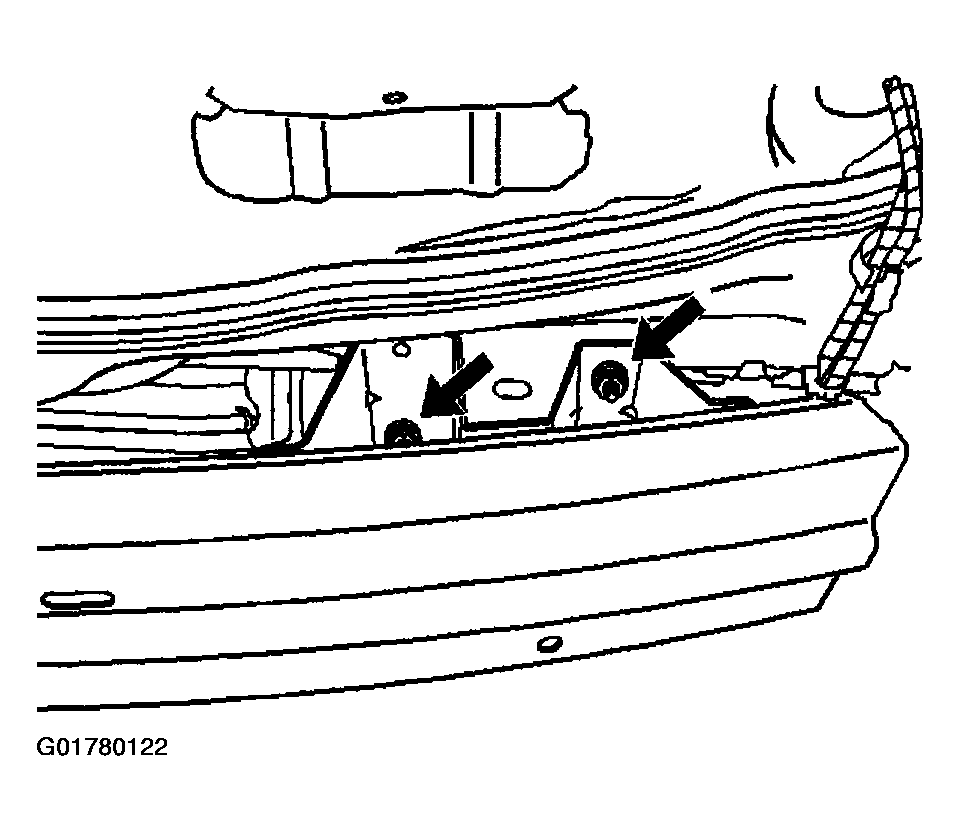

    Fig 2: Removing Rear Impact Bar
    G01780122Courtesy of GENERAL MOTORS CORP.
